KTM 10M CASE

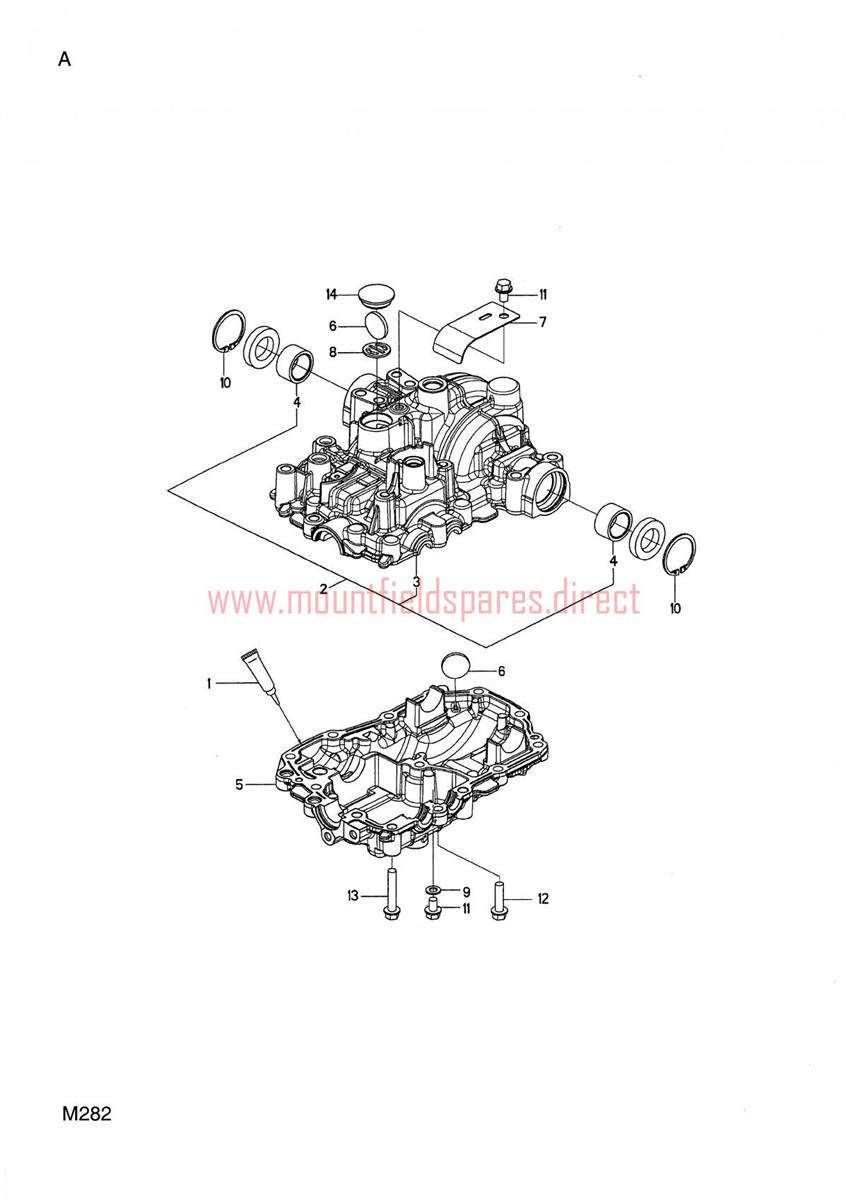

KTM 10M CASE assembly details for Mountfield 2100 and 4100 Series 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
A001134-6029-01FRONT TRANSAXLE (KTM10M)£2,211.84 Add to
A011139-1443-01SEALANT (TUBE)£38.16 Add to
A021139-1417-01UPPER HOUSING£814.79 Add to
A041139-1415-01BUSH (25.4)£9.47 Add to
A051139-1418-01LOWER HOUSING£247.25 Add to
A061139-1150-01MAGNET£8.23 Add to
A071139-1384-01SKID PLATE£17.81 Add to
A081139-1341-01MAGNET HOLDER£4.37 Add to
A091139-1103-01SEAL WASHER£6.31 Add to
A101139-1444-01CIRCLIP£7.57 Add to
A111139-1123-01BOLT 8*12£3.64 Add to
A131139-1291-01BOLT£3.64 Add to
A141139-1397-01SEALING CAP£39.05 Add to
A991139-1436-01SEAL KIT£115.86 Add to
Al21139-1448-01BOLT (OBSOLETE)N/A
