KTM 10M CENTER CASE

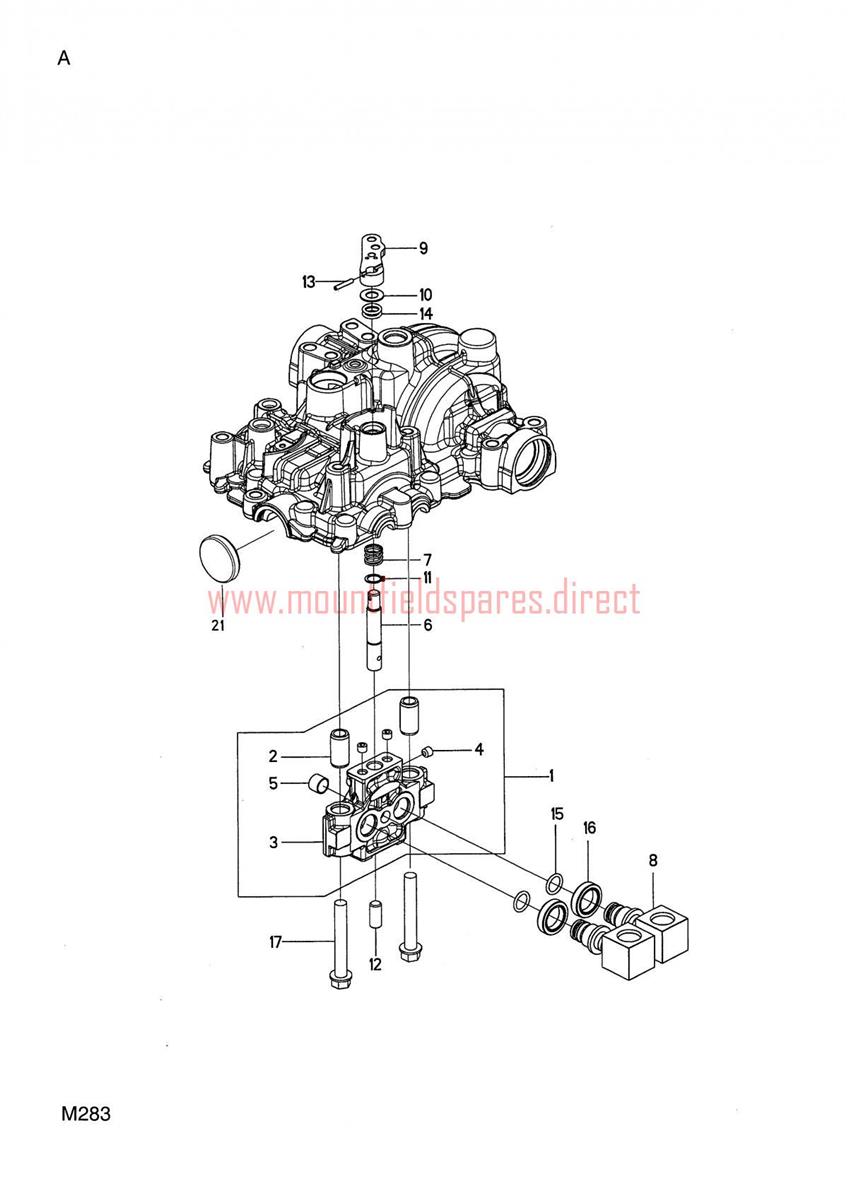

KTM 10M CENTER CASE assembly details for Mountfield 2100 and 4100 Series 2006 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
A01	1139-1419-01	CENTER CASE (KTM10G)	£418.37	Add to
A06	1139-1420-01	BY-PASS SHAFT (OBSOLETE)	N/A
A07	1139-1421-01	SPRING (OBSOLETE)	N/A
A08	1139-1737-01	CONNECTOR	£249.48	Add to
A09	1139-1189-01	BY-PASS LEVER	£9.19	Add to
A10	1139-1388-01	WASHER	£4.97	Add to
A11	1139-1391-01	RING (OBSOLETE)	N/A
A13	1139-1280-01	PIN (KTM10M) (OBSOLETE)	N/A
A14	1139-1114-01	O RING	£4.80	Add to
A15	1139-1446-01	O RING	£6.25	Add to
A16	1139-1447-01	SEAL	£17.51	Add to
A17	1139-1449-01	BOLT	£4.52	Add to
A21	1139-1450-01	SEALING CAP	£23.31	Add to
A99	1139-1436-01	SEAL KIT	£115.86	Add to
Al2	1139-1445-01	PIN (KTM10M)	£3.64	Add to
