KTM 10M FINAL PIN-MOTOR SHAFT

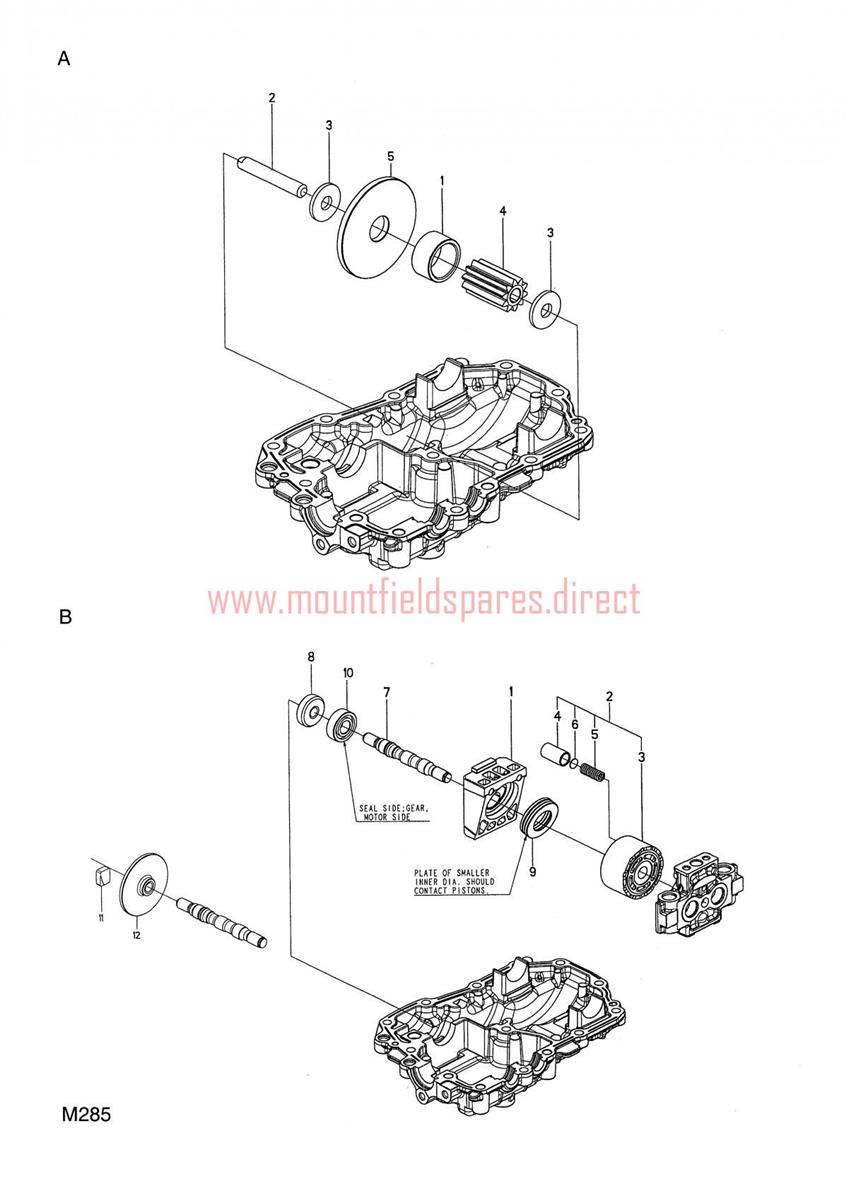

KTM 10M FINAL PIN-MOTOR SHAFT assembly details for Mountfield 2100 and 4100 Series 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
A011139-1428-01COLLAR 2006£29.54 Add to
A021139-1256-01REDUCTION SHAFT£14.69 Add to
A031139-1398-01WASHER£5.21 Add to
A041139-1361-01FINAL PINION GEAR£25.15 Add to
A051139-1430-01REDUCTION GEAR£130.35 Add to
B011139-1422-01HOUSING (KTM10M)£68.42 Add to
B021139-1139-01CYLINDER BLOCK ASSEMBLY£245.56 Add to
B071139-1425-01MOTOR SHAFT£135.19 Add to
B081139-1426-01MOTOR GEAR£135.06 Add to
B091139-1438-01BEARING£115.86 Add to
B101139-1286-01BALL BEARING£13.80 Add to
B111139-1260-01BRAKE SHOE£2.18 Add to
B121139-1451-01BRAKE DISC£98.08 Add to
