TRANSAXLE 6800-7

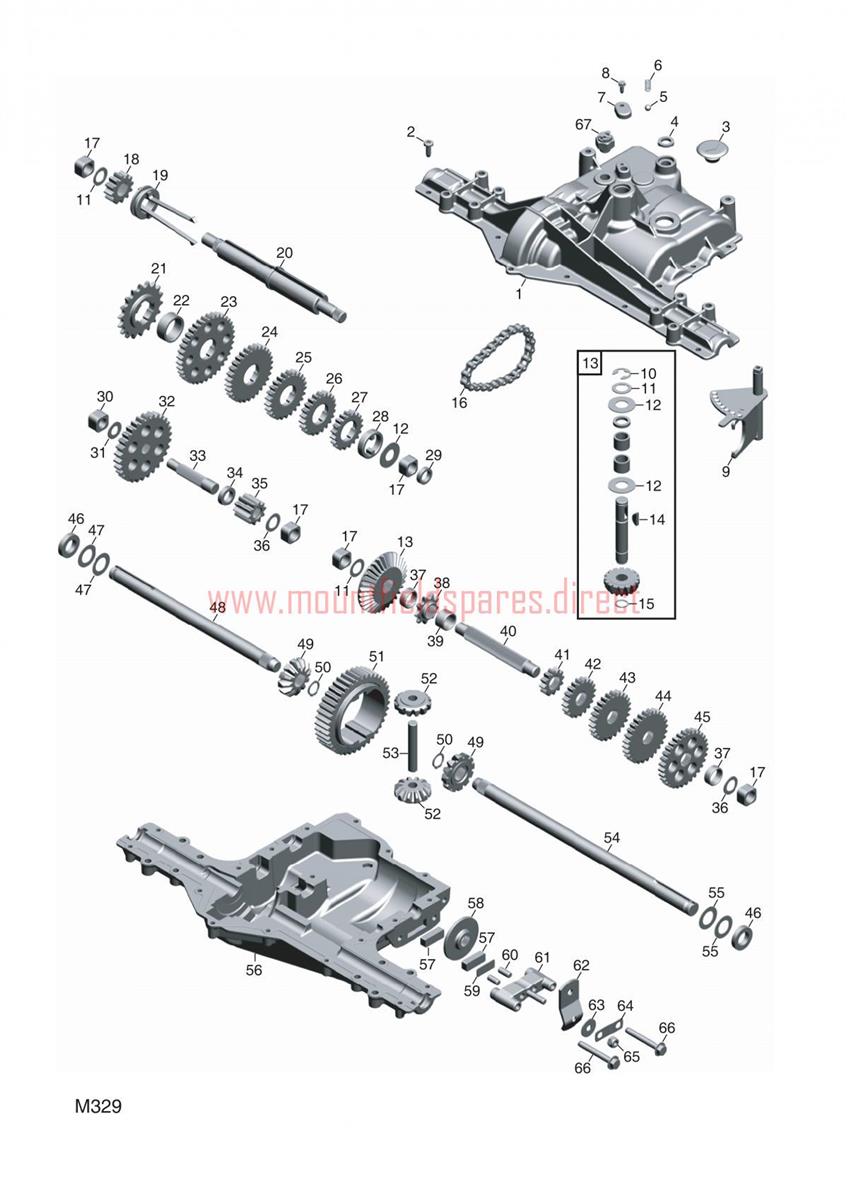

TRANSAXLE 6800-7 assembly details for Mountfield 2100 and 4100 series 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0001134-4847-01TRANSAXLE PEERLESS MST205£627.12 Add to
001F000-6768-00HOUSING UPPER ASSY (OBSOLETE)N/A
002F000-1919-00SCREW,TAP£5.45 Add to
003F004-1356-00RUBBER PLUG£2.47 Add to
004F000-7089-00SEAL RING (OBSOLETE)N/A
005F000-5947-00DETENT BALL (OBSOLETE)N/A
006F000-5948-00SPRING DETENT (OBSOLETE)N/A
007F000-7101-00DETENT COVER (OBSOLETE)N/A
008F084-0052-00SCREW£5.92 Add to
009F000-6670-00SHIFTER (OBSOLETE)N/A
010F000-1106-00CIRCLIP (OBSOLETE)N/A
011F000-4689-00ASSY,KIT,SHIM,625 SHAFT (OBSOLETE)N/A
012F000-3876-00WASHER£9.14 Add to
013F000-6753-00INPUT SHAFT ASSY (OBSOLETE)N/A
014F000-1746-00WOODRUFF KEY (OBSOLETE)N/A
015F000-3956-00RETAINING RING (OBSOLETE)N/A
016F000-3625-00CHAIN,24 PITCHES£101.13 Add to
017F000-7091-00BUSHING (OBSOLETE)N/A
018F000-7080-00SPUR GEAR (OBSOLETE)N/A
019F000-6692-00SHIFT COLLAR£183.07 Add to
020F000-7086-00INTERMEDIATE SHAFT(OBSOLETE)N/A
021F000-3830-00SPROCKET,18T£68.94 Add to
022F000-7094-00SPACER£8.84 Add to
023F000-5365-00SPUR GEAR 37T (OBSOLETE)N/A
024F000-3867-00GEAR,SPUR,30T£159.45 Add to
025F000-3783-00GEAR,SPUR,25T£109.10 Add to
026F000-3869-00GEAR SPUR 22T (OBSOLETE)N/A
027F000-5202-00GEAR,SPUR, 19T£88.77 Add to
028F000-5027-00SPACER£20.31 Add to
029F000-7115-00OIL SEAL (OBSOLETE)N/A
030F000-7092-00BUSHING£28.82 Add to
031F000-3890-00PLAIN WASHER£2.30 Add to
032F000-7079-00SPUR GEAR (OBSOLETE)N/A
033F000-7083-00IDLER SHAFT (OBSOLETE)N/A
034F000-3410-00SPACER (OBSOLETE)N/A
035F000-5180-00SPUR GEAR£24.74 Add to
036F000-1425-00WASHER (OBSOLETE)N/A
037F000-3714-00SPACER£12.21 Add to
038F000-3645-00SPROCKET,9T (OBSOLETE)N/A
039F000-7162-00SPACER£4.59 Add to
040F000-7084-00DRIVE SHAFT£54.79 Add to
041F000-5364-00GEAR, SPUR 12T£15.91 Add to
042F000-3866-00GEAR,SPUR,20T£61.73 Add to
043F000-3719-00GEAR SPUR 25T£90.57 Add to
044F000-3868-00GEAR SPUR (OBSOLETE)N/A
045F000-3683-00GEAR SPUR 31T£130.18 Add to
046F000-7088-00OIL SEAL (OBSOLETE)N/A
047F000-3184-00WASHER,PLAIN£9.62 Add to
048F000-7165-10WHEEL AXLE LH (OBSOLETE)N/A
049F000-5622-00GEAR, MITER 12T SPLINED (OBSOLETE)N/A
050F000-5270-00RETAINING RING£2.32 Add to
051F000-5181-00SPUR GEAR (OBSOLETE)N/A
052F000-5623-00GEAR MITER 12T IDLER (OBSOLETE)N/A
053F000-3919-00SHAFT,CROSS£38.33 Add to
054F000-7165-20WHEEL AXLE RH (OBSOLETE)N/A
055F000-4691-00KIT SHIM (OBSOLETE)N/A
056F000-7071-A0HOUSING LOWER (OBSOLETE)N/A
057F000-6754-00FRICTION PUCK KIT (OBSOLETE)N/A
058F000-7103-00BRAKE DISC (OBSOLETE)N/A
059F000-3758-00SPACER (OBSOLETE) (OBSOLETE)N/A
060F000-3843-00DOWEL PIN (OBSOLETE)N/A
061F000-5554-00BRAKE JAW (OBSOLETE)N/A
062F000-7032-00ACTUATING LEVER (OBSOLETE)N/A
063F000-3760-00WASHER,PLAIN£4.52 Add to
064F000-5555-00ANTI-ROTATION BRACKET (OBSOLETE)N/A
065F000-3847-00NUT, LOCK (OBSOLETE)N/A
066F000-5562-00SCREW£6.69 Add to
