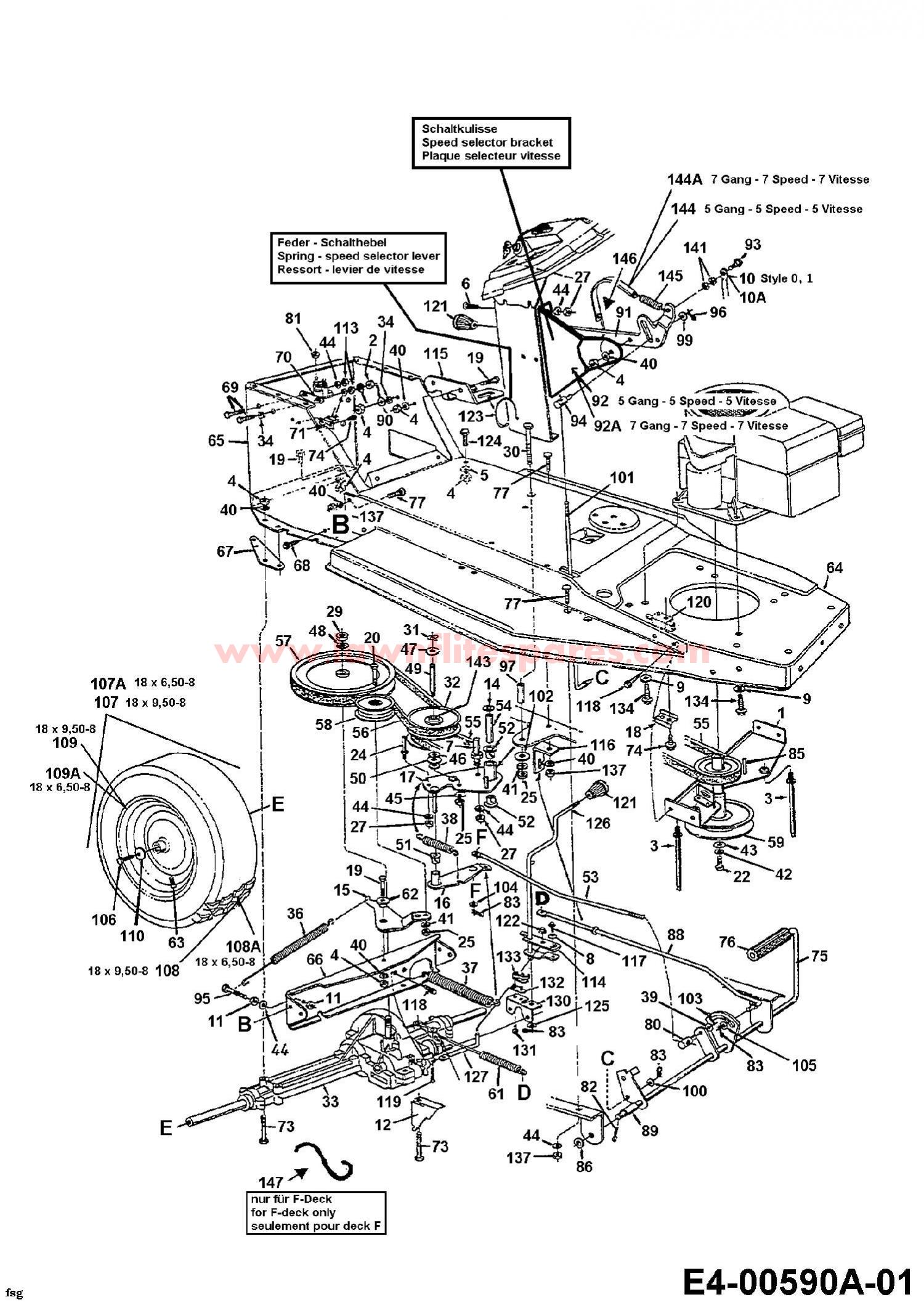

DRIVE SYSTEM, ENGINE PULLEY, PEDAL, REAR WHEELS

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001783-0265A637NO LONGER AVAILABLEN/A POA
002712-0291LOCK-NUT£2.77 Add to
003711-1239PIN£5.00 Add to
004712-3010NUT 5/16 x 18£2.77 Add to
005736-0242BELL WASHER£3.72 Add to
006710-0286SCREW£3.31 Add to
007711-1000BELT KEEPER£9.71 Add to
008736-0270BELL WASHER£3.91 Add to
009736-3072WASH:FLAT:.38 x.93 x.110:HT£8.27 Add to
010749-0836ANO LONGER AVAILABLEN/A POA
011712-0138NUT£3.03 Add to
012783-1325637HALTEWINKEL R CKZUGFEDER DECK£14.28 Add to
013710-0176HHCS:5/16-18:2.75:GR5:STD£6.11 Add to
014736-0235WASHER:FLAT:.406 x 1.260x .170£8.35 Add to
01517694ANO LONGER AVAILABLEN/A POA
01616554A-ZBRKT:VAR.SPD.TORQ ASSY-PAI 16554A£26.52 Add to
01716676BBRKT:ASM VARIABLE SPEED£43.32 Add to
01817962PLT:SW£4.66 Add to
019710-3008HEX BOLT£3.03 Add to
020710-0151HHCS:3/8-24:2.00:GR5:SPEC£4.84 Add to
022710-0757HEX SCREW£7.96 Add to
024711-1000BELT KEEPER£9.71 Add to
025712-0241HEX NUT 3/8-24£2.79 Add to
027712-0287NUT HEX£3.31 Add to
029712-3035NUT:JAM:9/16-18:GRADE 5£3.59 Add to
030710-0902SCREW HHCS:3/8-24:3.75:GR5:STD£15.40 Add to
031716-0114RING:RET:.56 DIA SHAFT£3.58 Add to
032717-0800APUL:DR:VARI SPD 5.06 DIA£236.50 Add to
033618-0166DTRANSAXLE£577.74 Add to
034736-0607WASH:LOCK:5/16 EXT TOOTH£3.31 Add to
036732-0384EXT SPRING£15.79 Add to
037732-0459SPRING 6.7£15.10 Add to
038732-0568SPRING EXTENSION£5.45 Add to
039736-0117WASH:FLAT:.385 x.620 x.033£3.31 Add to
040736-0119LOCK WASHER 5/16£3.33 Add to
041736-0169L. WASHER£2.89 Add to
042736-0171WASHER£2.93 Add to
043736-0322FI-WASH£8.68 Add to
044736-0329L. WASHER£3.26 Add to
045736-0331BELL WASHER£3.95 Add to
046736-0355WASHER£3.19 Add to
047736-0414WASHER£5.00 Add to
048736-0427BELL:WASH:.567 x 1.125 x .06£3.31 Add to
049738-0569SHAFT V. PULLEY£39.36 Add to
050741-0405NO LONGER AVAILABLEN/A POA
051741-0419FLANGE BEARING (OBSOLETE)N/A
052741-0495FLANGED BRG.£8.22 Add to
053747-0599BNO LONGER AVAILABLEN/A POA
054750-0703SPACER .375 ID X .625 OD X 1.5£11.36 Add to
055754-0280ABELT£70.95 Add to
056754-0281BELT TRANS 620£53.72 Add to
057656-0003Pulley£60.48 Add to
058756-0643APUL IDLER FLAT 3.12£27.94 Add to
059756-0551ENGINE PULLEY£76.80 Add to
061732-0413EXT SPRING£12.22 Add to
062748-0234SHOULDER SPACER£5.43 Add to
063734-0255VALVE - TUBELESS AIR£7.02 Add to
06417588G637FRM:LWR:400 SERIES£216.47 Add to
065783-04796637NO LONGER AVAILABLEN/A POA
06616654A637NO LONGER AVAILABLEN/A POA
06716659637PLATE-REINFORCEMENT£12.14 Add to
068710-0726HEX SCREW AB 5/16-12:0.750£3.19 Add to
069710-0751BOLT 069£3.39 Add to
070725-1426ASOLENOID£24.30 Add to
071753-0685KIT CIRCUIT BREAKER£38.03 Add to
073710-0176HHCS:5/16-18:2.75:GR5:STD£6.11 Add to
074710-1388SCREW£3.23 Add to
07517644A637ROD ASM:BRK/CL 17644A£76.77 Add to
076735-0239AFOOT PAD£8.75 Add to
077710-1012BOLT:RIBBED:HD 5/16-24 x.87"LG£3.39 Add to
080711-0198PIVOT BUSHING£12.12 Add to
081712-0271NUT:SEMS:1/4-20£3.03 Add to
082714-0470COTTER PIN£5.07 Add to
083714-0507COTTER PIN 3/32 DIA£3.13 Add to
085714-0114SQUARE KEY£5.26 Add to
086736-0256WASHER:FL:.635 IDX.930 ODX.03£3.20 Add to
088747-0593ROD:BRAKE£24.20 Add to
089750-0800SPACER£3.90 Add to
090725-0976ANO LONGER AVAILABLEN/A POA
09117457BNO LONGER AVAILABLEN/A POA
09216693BNO LONGER AVAILABLEN/A POA
093738-0138ASCR HEX CAP£9.42 Add to
094711-0677FERRULE:5/16-18 x.312 DIA£13.47 Add to
095710-0428NO LONGER AVAILABLEN/A POA
096714-0104PIN INTERNAL COTTER£2.78 Add to
097750-0703SPACER .375 ID X .625 OD X 1.5£11.36 Add to
099736-0264WASH:FLAT:.330 x.630x.0635£3.59 Add to
100736-0463WASH:FLAT: .250 x .630 x .052£3.31 Add to
101747-0675ANO LONGER AVAILABLEN/A POA
102736-0133WASH:FLAT:.411 X 1.25 X .100£3.87 Add to
103714-0115COTTER PIN£3.42 Add to
104736-0275WASH:FLAT:.344 x .688 x.065£3.07 Add to
105736-0278WASH:FLAT:.330x.687x.030:HT£3.20 Add to
106710-0627HEX SCREW£3.32 Add to
107734-0817662WHL COMP:18x9.5 734-0817£225.94 Add to
107A734-0592-GWHL:COMP:18 x 6.5 7£184.03 Add to
108734-0448TIRE:18 X 9.5£140.76 Add to
108A734-0294TIRE:18 X 6.5 X 8 SQ SH£125.82 Add to
109634-04369662RIM ASM:COLOUR CUB BEIGE 634-0070£105.87 Add to
109A634-04174662RIM ASM-8.0X5.38 w/VALVE£78.95 Add to
10A749-0820BRACE-SPEED SELECTOR£12.90 Add to
110736-0242BELL WASHER£3.72 Add to
113712-0298NUT:JAM:1/4-20:GR2£3.80 Add to
11417178ANO LONGER AVAILABLEN/A POA
115783-1016BBRKT:ROD:SPEED CONTROL£8.99 Add to
11617597637NO LONGER AVAILABLEN/A POA
117710-0289HHCS:1/4-20:.50:GR2:STD£20.02 Add to
118710-0599HEX TT SCREW 1/4-20£4.95 Add to
119714-0149BCOTTER PIN£3.58 Add to
120725-1657ASAFETY SWITCH£14.15 Add to
121720-0232KNOB:SHFT:1.60 OD X 1.56£6.72 Add to
122726-0231CUP-RETAINER£3.59 Add to
123732-0525COMP SPRING CLIP£3.13 Add to
124710-0650SCREW£3.58 Add to
125736-0226WASHER:FLAT:.474 x.879 x.064£3.39 Add to
126747-0694AP3ZNO LONGER AVAILABLEN/A POA
127747-0685CLUTCH LINK£10.19 Add to
13017179NO LONGER AVAILABLEN/A POA
131710-0227SCR:AB:#8-18:0.500:HXINDWH£3.07 Add to
132726-0222PLATE-INSULATOR NUT£3.05 Add to
133753-0580NO LONGER AVAILABLEN/A POA
134710-0502ASCR:TTSEMS:3/8-16:1.250:HXLWSH£7.56 Add to
137712-3057NUT 5/16-24£3.00 Add to
141736-0141WASH:SPR:.440 x.750 x.015£3.39 Add to
143741-0404BRG:NDL:.5625 IDx.7500x.5550£34.91 Add to
144683-0331only 7 left now obsolete£16.38 Add to
144A683-0239NO LONGER AVAILABLEN/A POA
145732-0691EXT SPRING 2.04 INCH LONG£5.54 Add to
146747-0816HOOK SPEED INDICATOR£3.42 Add to
147732-0722ASPRING:BRAKE RETURN ANCHOR£8.39 Add to
148736-0702WASHER£2.40 Add to
92A783-0993-ZBRKT:SEL:7 SPEED 783-0993£25.64 Add to
