FG503_0130 B10

Parts list

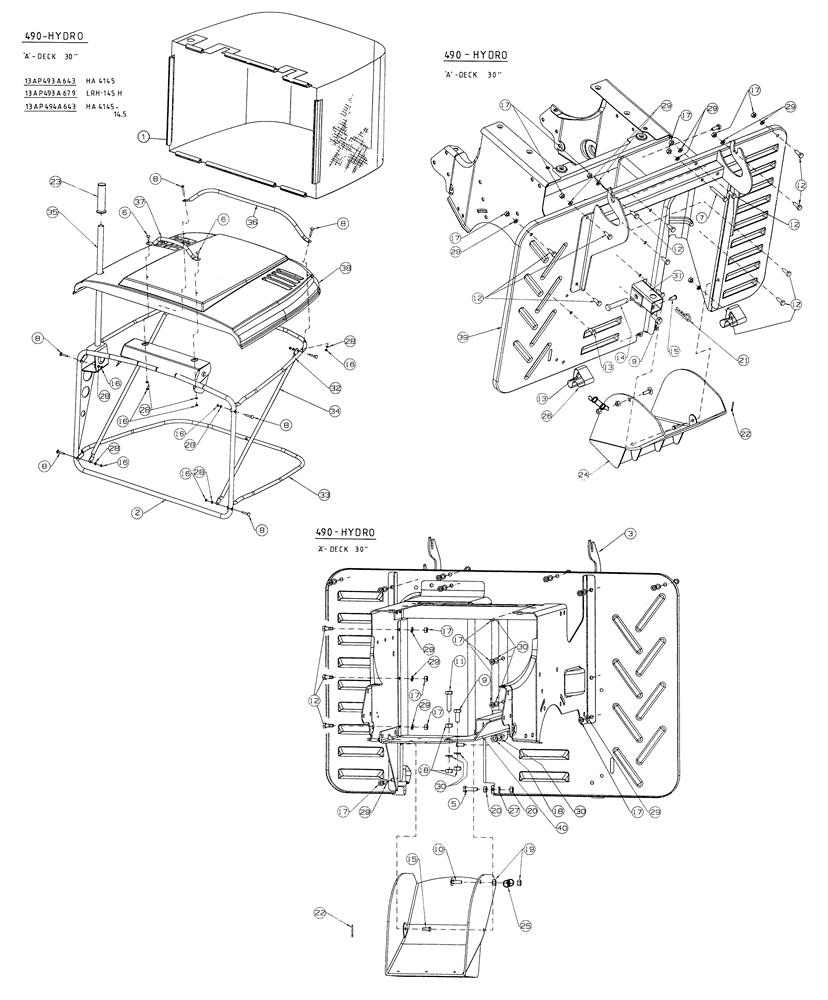

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
	753-0754	SCREW PACK	£5.69	Add to
001	664-0125A	GRASS BAG TISSUE	£239.03	Add to
002	683-0171B	TUBE FRAME:ASM:	N/A	POA
003	683-0230A637	SUPPORT CPL.	£105.00	Add to
004	683-0289637	SHLD ASM:GRSBG 683-0289	£32.82	Add to
005	710-0597	HEX SEMS SCREW	£2.97	Add to
006	710-1360	SCREW DIN 603 M5x16-8.8	£3.05	Add to
007	710-1391	Screw 21.1443.55	£4.00	Add to
008	710-1612	BOLT:CRG:5mm x 30.0 LG	£5.69	Add to
009	710-1681	HEX BOLT M8 X 20 DIN 933 (RED)	£3.24	Add to
010	710-1687	BOLT	£3.26	Add to
011	719-1688	SCHRAUBE M8X35 DIN 931	N/A	POA
012	710-1690	HHCS:M6-1:16.00	£3.39	Add to
013	710-1691	HEX. SCREW:M6X12 DIN 933 8.8	£4.11	Add to
014	711-0679A	CLEVIS PIN	£6.70	Add to
015	711-0701	CLEVIS PIN	£4.89	Add to
016	712-0675	NUT:HEX:M5 x.80:DIN 985	£4.25	Add to
017	712-0689	NUT:HEX:M6-1:DIN 934	£2.33	Add to
018	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add to
019	712-0691	HEX NUT M6 DIN 985	£2.66	Add to
020	712-3006	NUT	£2.77	Add to
021	714-0147	COTTER PIN	£3.51	Add to
022	714-0507	COTTER PIN 3/32 DIA	£3.13	Add to
023	720-0301	GRIP	£7.51	Add to
024	731-1606B	CHUT:dis:30" RD DECK	£43.05	Add to
025	732-0755	EXT SPRING	£6.72	Add to
026	732-0838A	SPRING	£6.95	Add to
027	736-0329	L. WASHER	£3.26	Add to
028	736-0602	WASHER A 5,3 DIN 125	£2.70	Add to
029	736-0648	WASHER:LOCK:B6:DIN 127	£2.44	Add to
030	736-0649A	WASHER:LOCK:B8:DIN 12 736-0649	£2.70	Add to
031	749-0966637	HITCH TUBE 400 749-0966	£63.25	Add to
032	749-1009637	NO LONGER AVAILABLE	N/A	POA
033	749-1010637	NO LONGER AVAILABLE	N/A	POA
034	749-1011	BRACE-VAR SP	£25.20	Add to
035	749-1012A	TUBE:LVR:BAG:LIFT (OBSOLETE)	N/A
036	749-1013	HANDLE LONG	£34.10	Add to
037	749-1014637	HANDLE SHORT 749-1014	£24.91	Add to
038	783-0583	HOOD:CATCHER	N/A	POA
039	783-0820637	HITCH PLATE 783-0820	£73.47	Add to
040	783-0821	TOW BRACKET	£14.15	Add to
