FG503_0150 B10

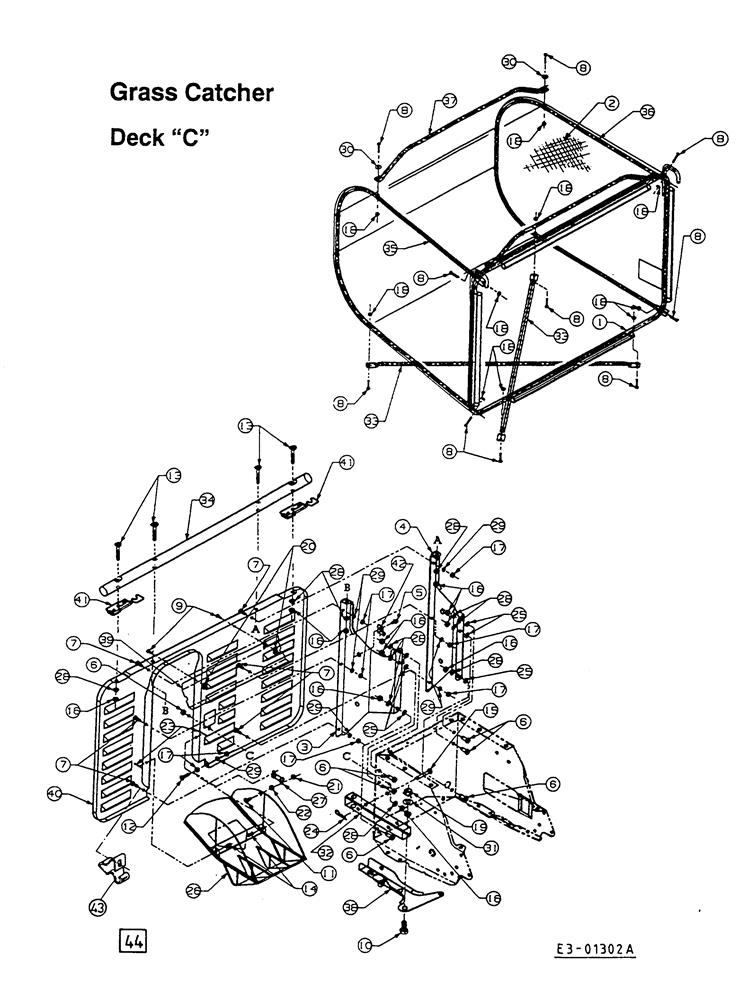

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	649-0011637	TUBE ASSY CATCHER	£123.78	Add to
002	664-0073B	BAG ONLY	£159.09	Add to
003	683-0106A637	BRKT ASM:SUPT:GRSCTCH:R.H 683-0106A	£54.96	Add to
004	683-0105	BRKT ASM:SPRT:LH GRASSCTCH	£45.13	Add to
005	710-0599	HEX TT SCREW 1/4-20	£4.95	Add to
006	710-3008	HEX BOLT	£3.03	Add to
007	710-0751	BOLT 069	£3.39	Add to
008	710-1194	SCREW 10/24 x 1.00 DX60 CATCHER	£4.95	Add to
009	710-1388	SCREW	£3.23	Add to
010	710-1701	SCREW HEX M12x25 DIN 933-8.8	£5.46	Add to
011	710-0134	BOLT	£3.03	Add to
012	710-0597	HEX SEMS SCREW	£2.97	Add to
013	710-1174	BOLT CURVED HEAD	£5.76	Add to
014	711-0701	CLEVIS PIN	£4.89	Add to
015	711-0679A	CLEVIS PIN	£6.70	Add to
016	712-3010	NUT 5/16 x 18	£2.77	Add to
017	712-3006	NUT	£2.77	Add to
018	712-0161	NYLOK NUT #10-24	£6.05	Add to
019	712-0630	NUT: HEX:M12-1.75:DIN 934-8	£3.44	Add to
020	712-0147	NO LONGER AVAILABLE	N/A	POA
021	712-0291	LOCK-NUT	£2.77	Add to
022	712-0271	NUT:SEMS:1/4-20	£3.03	Add to
023	714-0507	COTTER PIN 3/32 DIA	£3.13	Add to
024	714-0147	COTTER PIN	£3.51	Add to
025	726-0201	SPEED NUT	£3.10	Add to
026	731-1606B	CHUT:dis:30" RD DECK	£43.05	Add to
027	732-0755	EXT SPRING	£6.72	Add to
028	736-0119	LOCK WASHER 5/16	£3.33	Add to
029	736-0329	L. WASHER	£3.26	Add to
030	736-0400	FLAT WASHER .194x.620Dx.63TH	£3.77	Add to
031	736-0253	WASH:BLVL:.525 x 1.000 x.050	£3.87	Add to
032	749-0966637	HITCH TUBE 400 749-0966	£63.25	Add to
033	749-0964637	TUBE 1/2 X 29.51 BLACK	£23.66	Add to
034	749-0963637	TUBE:1.25 DIA X 29.4 LG 749-0963	£29.47	Add to
035	749-04227637	SIDE FRAME (R.H.)	£52.24	Add to
036	749-04226637	SIDE FRAME (LH)	£52.12	Add to
037	749-0962A637	HANDLE	£15.87	Add to
038	783-0286637	BRACKET-HITCH EXT	£26.00	Add to
039	783-0308637	SHIELD:GRASS 783-0308	£11.55	Add to
040	783-0278A637	BACK PLATE BLACK	£143.36	Add to
041	15995A	GRASS CATCHER SUPPORT PLATE	N/A	POA
042	16606-Z	BRKT:HOOK:RETAINER 16606	£5.80	Add to
043	732-0838A	SPRING	£6.95	Add to
044	913-04196	GRASS CATCHER CPL	£513.61	Add to
