FG503_0350

Parts list

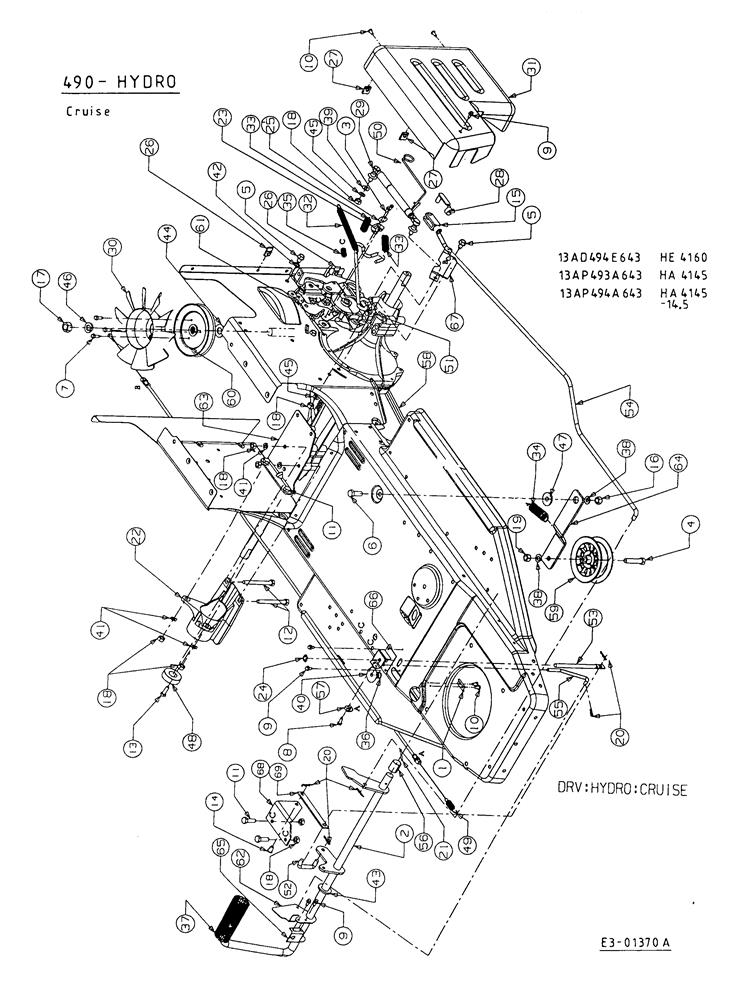

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
	618-0389A	NO LONGER AVAILABLE	N/A	POA
001	17962	PLT:SW	£4.66	Add to
002	683-0281	PED ASM:ACCEL	£55.98	Add to
003	710-0227	SCR:AB:#8-18:0.500:HXINDWH	£3.07	Add to
004	710-0347	HEX SCR	£3.72	Add to
005	710-0604A	SCREW	£3.62	Add to
006	710-1039	HEX BOLT 3/8-24 x 1 INCH Lg	£3.62	Add to
007	710-1189	NO LONGER AVAILABLE	N/A	POA
008	710-1237	SCREW SELF TAP	£3.00	Add to
009	710-1355	SCR:TT:M5-.8:10.00:HXFLG	£2.98	Add to
010	710-1388	SCREW	£3.23	Add to
011	710-1682	SCR:M8-1:25.00 LG:DIN 933	£2.98	Add to
012	710-1685	SCR:M8-1:75.00 LG:DIN 931	£6.46	Add to
013	710-3015	SCREW HEX CAP	£3.33	Add to
014	711-1229	BOLT 25.7428.19	£17.19	Add to
015	711-1407	LINK	£14.01	Add to
016	712-0241	HEX NUT 3/8-24	£2.79	Add to
017	712-0333	NUT:HEX:1/2-20:GR2	£3.20	Add to
018	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add to
019	712-3017	NUT:JAM:3/8-16:GR5	£2.97	Add to
020	714-0104	PIN INTERNAL COTTER	£2.78	Add to
021	714-0470	COTTER PIN	£5.07	Add to
022	719-0534	SUPPORTING BRACKET	£63.26	Add to
023	725-1644	SWITCH:SPRING:SHORT	£6.24	Add to
024	726-0201	SPEED NUT	£3.10	Add to
025	726-0320	INSULATING PLATE	£2.97	Add to
026	726-0358	SPEED NUT M6	£5.62	Add to
027	726-0360	NUT 000.06.380	£2.90	Add to
028	726-0457	CLIP	£9.50	Add to
029	727-0626	CYL:DAMPER	£97.73	Add to
030	731-1449A	FAN:BLADE:10	£22.24	Add to
031	731-2141	COVER HYDRO	£11.64	Add to
032	732-0308	EXTENSION SPRING	£10.04	Add to
033	732-0888	NO LONGER AVAILABLE	N/A	POA
034	732-0890	SPRING	£5.57	Add to
035	732-0891	SPR:COMP:11.50 OD X 20.4 LG	£4.74	Add to
036	732-0973	SPR:COMP:11.70 ID X 19.06 LG	£2.90	Add to
037	735-0239A	FOOT PAD	£8.75	Add to
038	736-0169	L. WASHER	£2.89	Add to
039	736-0264	WASH:FLAT:.330 x.630x.0635	£3.59	Add to
040	736-0362	WASH-FLAT:.330 x 1.25 x.06:HD	£4.66	Add to
041	736-0649A	WASHER:LOCK:B8:DIN 12 736-0649	£2.70	Add to
042	736-0689	L-WASHER	£3.26	Add to
043	736-0705	WASHER	£11.22	Add to
044	736-0707	WASH:FLAT:A 15 DIN 125	£3.85	Add to
045	736-0708	Lockwasher 24.8190.18	£2.72	Add to
046	736-0921	WASHER:LOCK:1/2:REGULAR DUTY	£2.98	Add to
047	738-0347	SPACER	£4.16	Add to
048	741-0998	BRG:BALL:19mm x 40mm OD x 12mm	£30.41	Add to
049	746-1023	BRAKE CABLE 1242mm LONG	£26.34	Add to
050	747-1039	NO LONGER AVAILABLE	N/A	POA
051	747-1041	ROD-BRAKE	£8.85	Add to
052	747-1048	U-ROD,CRUISE	£9.28	Add to
053	747-1167	ROD: CONT	£15.34	Add to
054	747-1089	ROD:DR 747-1177 (OBSOLETE) (OBSOLETE)	N/A
055	747-1180A	PLGR:REL:CRUS	£13.99	Add to
056	750-0379	SPACER .657 ID X .87 OD X .85	£5.33	Add to
057	751B213146	CASING CLAMP (OBSOLETE) (OBSOLETE)	N/A
058	754-0478	BELT:V TYP:96.9	£37.98	Add to
059	756-0643A	PUL IDLER FLAT 3.12	£27.94	Add to
060	756-1052	PULLEY TRANS 4.50 DIA	£33.76	Add to
061	783-0786-Z	BRKT:ACTR:SW EURO 783-0786	£8.13	Add to
062	783-0816	BRKT:BRAKE	£8.04	Add to
063	783-0823	BRKT:AXLE:MT	N/A	POA
064	783-0835-Z	BRKT:IDLR 783-0835	£18.77	Add to
065	783-0906	BRKT:	£11.85	Add to
066	783-0909	BRKT:CRUISE	£13.05	Add to
067	783-0910-Z	BRKT:DAMPER 783-0910	£30.70	Add to
068	783-0929	BRACKET	£6.33	Add to
069	783-0930	PLATE	£6.37	Add to
