FG503_0360

Parts list

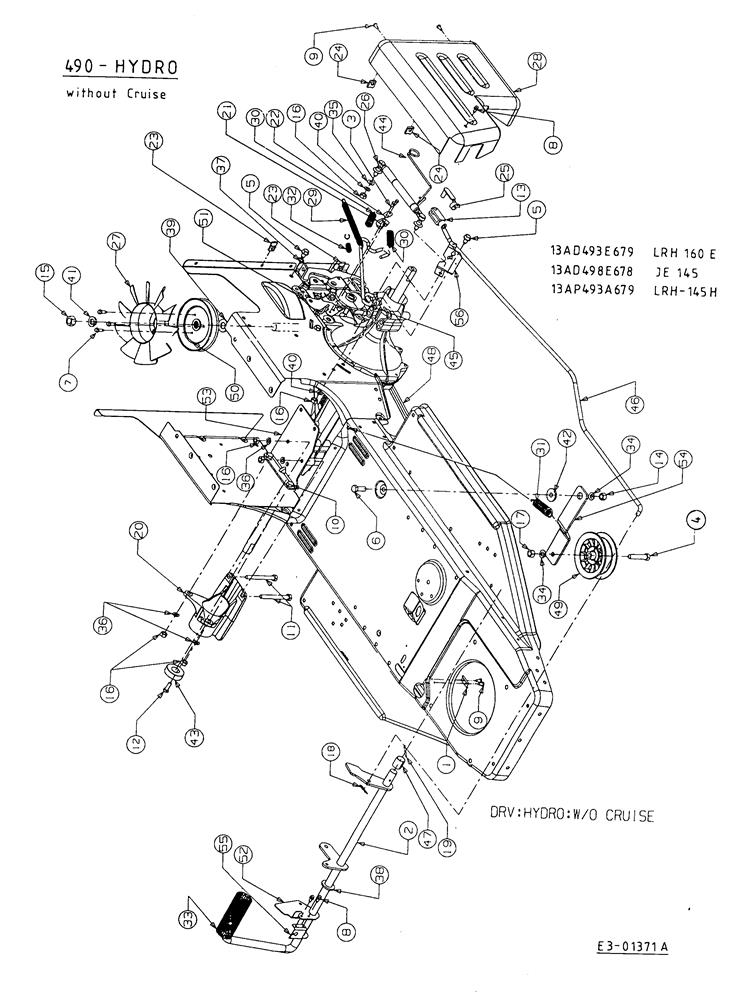

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
	618-0389A	NO LONGER AVAILABLE	N/A	POA
001	17962	PLT:SW	£4.66	Add to
002	683-0281	PED ASM:ACCEL	£55.98	Add to
003	710-0227	SCR:AB:#8-18:0.500:HXINDWH	£3.07	Add to
004	710-0347	HEX SCR	£3.72	Add to
005	710-0604A	SCREW	£3.62	Add to
006	710-1039	HEX BOLT 3/8-24 x 1 INCH Lg	£3.62	Add to
007	710-1189	NO LONGER AVAILABLE	N/A	POA
008	710-1355	SCR:TT:M5-.8:10.00:HXFLG	£2.98	Add to
009	710-1388	SCREW	£3.23	Add to
010	710-1682	SCR:M8-1:25.00 LG:DIN 933	£2.98	Add to
011	710-1685	SCR:M8-1:75.00 LG:DIN 931	£6.46	Add to
012	710-3015	SCREW HEX CAP	£3.33	Add to
013	711-1407	LINK	£14.01	Add to
014	712-0241	HEX NUT 3/8-24	£2.79	Add to
015	712-0333	NUT:HEX:1/2-20:GR2	£3.20	Add to
016	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add to
017	712-3017	NUT:JAM:3/8-16:GR5	£2.97	Add to
018	714-0104	PIN INTERNAL COTTER	£2.78	Add to
019	714-0470	COTTER PIN	£5.07	Add to
020	719-0534	SUPPORTING BRACKET	£63.26	Add to
021	725-1644	SWITCH:SPRING:SHORT	£6.24	Add to
022	726-0320	INSULATING PLATE	£2.97	Add to
023	726-0358	SPEED NUT M6	£5.62	Add to
024	726-0360	NUT 000.06.380	£2.90	Add to
025	726-0457	CLIP	£9.50	Add to
026	727-0626	CYL:DAMPER	£97.73	Add to
027	731-1449A	FAN:BLADE:10	£22.24	Add to
028	731-2141	COVER HYDRO	£11.64	Add to
029	732-0308	EXTENSION SPRING	£10.04	Add to
030	732-0888	NO LONGER AVAILABLE	N/A	POA
031	732-0890	SPRING	£5.57	Add to
032	732-0891	SPR:COMP:11.50 OD X 20.4 LG	£4.74	Add to
033	735-0239A	FOOT PAD	£8.75	Add to
034	736-0169	L. WASHER	£2.89	Add to
035	736-0264	WASH:FLAT:.330 x.630x.0635	£3.59	Add to
036	736-0649A	WASHER:LOCK:B8:DIN 12 736-0649	£2.70	Add to
037	736-0689	L-WASHER	£3.26	Add to
038	736-0705	WASHER	£11.22	Add to
039	736-0707	WASH:FLAT:A 15 DIN 125	£3.85	Add to
040	736-0708	Lockwasher 24.8190.18	£2.72	Add to
041	736-0921	WASHER:LOCK:1/2:REGULAR DUTY	£2.98	Add to
042	738-0347	SPACER	£4.16	Add to
043	741-0998	BRG:BALL:19mm x 40mm OD x 12mm	£30.41	Add to
044	747-1039	NO LONGER AVAILABLE	N/A	POA
045	747-1041	ROD-BRAKE	£8.85	Add to
046	747-1089	ROD:DR 747-1177 (OBSOLETE) (OBSOLETE)	N/A
047	750-0379	SPACER .657 ID X .87 OD X .85	£5.33	Add to
048	754-0478	BELT:V TYP:96.9	£37.98	Add to
049	756-0643A	PUL IDLER FLAT 3.12	£27.94	Add to
050	756-1052	PULLEY TRANS 4.50 DIA	£33.76	Add to
051	783-0786-Z	BRKT:ACTR:SW EURO 783-0786	£8.13	Add to
052	783-0816	BRKT:BRAKE	£8.04	Add to
053	783-0823	BRKT:AXLE:MT	N/A	POA
054	783-0835-Z	BRKT:IDLR 783-0835	£18.77	Add to
055	783-0906	BRKT:	£11.85	Add to
