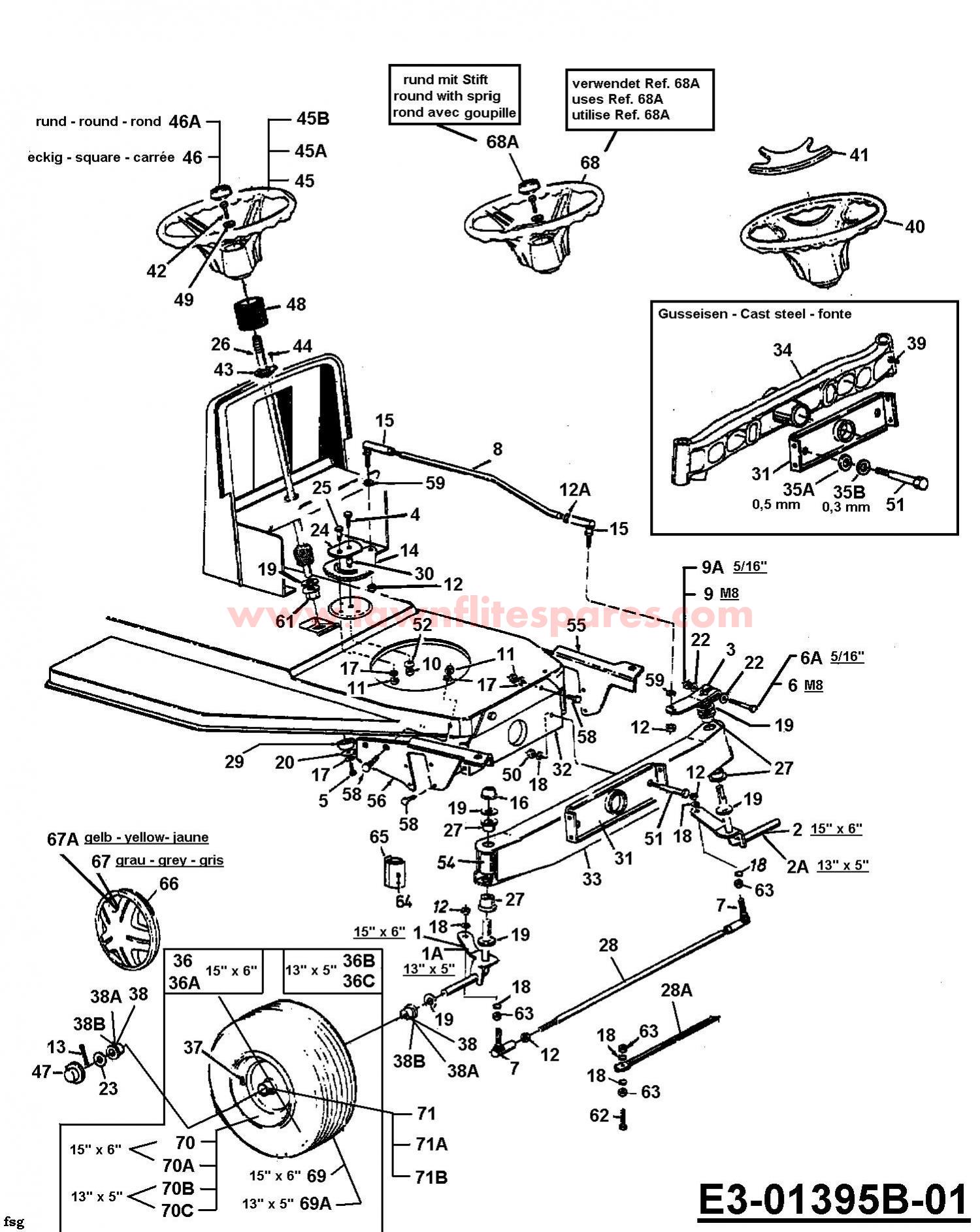

STEERING, FRONT WHEELS, PIVOT BAR

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	17584A637	FRONT AXLE RH 3.32 x 4.07	£126.42	Add to
002	17585A637	FRONT AXLE ASSY. L.H 3.64X5.34	£111.42	Add to
003	683-0055637	STEERING ARM	£51.15	Add to
004	710-1039	HEX BOLT 3/8-24 x 1 INCH Lg	£3.62	Add to
005	710-0538	HEX L BOLT	£4.15	Add to
006	710-1684	NO LONGER AVAILABLE	N/A	POA
007	723-3018	BALL JOINT	£24.02	Add to
008	711-1117A	NO LONGER AVAILABLE	N/A	POA
009	712-0692	HEX NUT	£3.10	Add to
010	712-0214	HEX NUT	£3.55	Add to
011	712-0158	NUT, HEX CENTER LOCK, 5/16-18	£9.35	Add to
012	712-0262	NUT:JAMLK:3/8-24:GR2	£12.97	Add to
013	714-0470	COTTER PIN	£5.07	Add to
014	717-0622C	GEAR SEGMENT	£39.29	Add to
015	723-0448A	BALL JOINT ASSY	£24.61	Add to
016	726-0214	PUSH CAP	£5.36	Add to
017	736-0119	LOCK WASHER 5/16	£3.33	Add to
018	736-0169	L. WASHER	£2.89	Add to
019	736-0366	WASHER	£3.95	Add to
01A	683-0040A	NO LONGER AVAILABLE	N/A	POA
020	736-0343	WASHER-5/16 x 1.25	£4.57	Add to
022	736-3081	WASH:FLAT:.320 x .600 x.060:HT	£10.52	Add to
023	736-0285	FLAT WASHER	£4.06	Add to
024	783-04644	BRACKET	£15.63	Add to
025	738-0141	SHLD SCREW	£8.66	Add to
026	738-0937	STEERING SHAFT	£64.66	Add to
027	741-0659	FLANGE BEARING	£5.31	Add to
028	747-0753	TIE ROD KIT one only now obsolete	£31.50	Add to
029	750-0532	SPACER (OBSOLETE)	N/A
02A	683-0041A637	AXLE BLACK	£54.15	Add to
030	750-0535	SPACER	£10.09	Add to
031	17548637	PIVOT BAR SUPP BRACKET FRONT (OBSOLETE)	£35.00	Add to
032	17547637	NO LONGER AVAILABLE	N/A	POA
033	683-0128B637	PIVOT BAR ASSY	£65.51	Add to
034	719-0342B	PIVOT BAR ASS`Y 719-0342A	£350.08	Add to
036	634-0097B662	OYSTER GRAY 788-0662	£176.87	Add to
037	734-0255	VALVE - TUBELESS AIR	£7.02	Add to
038	741-0487C	FLANGE BEARING	£6.18	Add to
039	737-3000	FITTING LUBE 3/16 DRIVE TYPE	£3.87	Add to
040	731-1869	WHL:STR:BLACK .625 SPLINE	£90.44	Add to
041	731-1904	CAP-STEERINF WHEEL W/SPRIG	£25.20	Add to
042	710-0643	BOLT	£3.85	Add to
043	741-0501	NO LONGER AVAILABLE	N/A	POA
044	710-0837	OVAL SUNK SCREW	£3.51	Add to
045	731-1693	WHL:STRG:5/8 SPLINE 12.0 DIA	£79.78	Add to
046	731-0220	STEERING WHEEL CAP	£9.71	Add to
047	731-0484A	HUB CAP	£5.05	Add to
048	731-0954	BELLOW STEERING COLUMN	£20.36	Add to
049	736-0242	BELL WASHER	£3.72	Add to
050	712-0431	NUT	£3.20	Add to
051	738-0527	SCR:SHLDR:.498 DIA X 2.045	£7.78	Add to
052	736-0356	BELL WASHER	£3.95	Add to
054	731-1649	CAPAXLE CAP	£3.89	Add to
055	783-0255B637	PLT:SD:PIVOT BAR-L.H. 783-0255B	£24.40	Add to
056	783-0256B637	PLT:SD:PIVOT BAR-R.H. 783-0256B	£24.20	Add to
058	710-0604A	SCREW	£3.62	Add to
059	736-0217	H.L. WASHER (RED)	£4.89	Add to
061	741-0225	HEX FLANGE BEARING	£4.92	Add to
062	710-0459A	TIE ROD BOLT	£3.62	Add to
063	712-0241	HEX NUT 3/8-24	£2.79	Add to
064	737-0280	FITTING-GREASE	£13.79	Add to
065	731-1291A	ENDCAP AXLE	£10.11	Add to
066	727-0425A	SPRING CLIP	£2.98	Add to
067	734-1613A	HUBCP:6"DIA: OYS GREY W/SPRIG	£19.68	Add to
068	631-04028	WHL ASS:STRG:3 SPOKE STD GRIP	£42.96	Add to
069	734-1731	TYRE 15x6.00-6 NHS	£123.31	Add to
06A	710-0593	SCREW-HEX	£4.86	Add to
070	634-0173	WHEEL RIM ASSY	£72.79	Add to
071	737-0211A	FITTING-GREASE 737-0211	£3.59	Add to
09A	712-0411	NUT	£2.69	Add to
12A	712-0240	NUT	£3.62	Add to
28A	747-0861637	ROD:TIE:NON-ADJ 21.72 LG 747-0861	£19.25	Add to
35A	736-0769	NO LONGER AVAILABLE	N/A	POA
35B	736-0770	WASHER one only now (OBSOLETE) (OBSOLETE)	N/A
36A	634-0091	WHEEL ASSY - COMPL. (OBSOLETE) (OBSOLETE)	N/A
36B	634-0097A662	WHL:COMPL.: 13 X 5 X 6:PLAS 634-0097	N/A	POA
36C	634-0099	NO LONGER AVAILABLE	N/A	POA
38A	741-0569	BALL BEARING	£18.91	Add to
38C	741-0706	BRG:FLNG:.632 ID W/FTG	£8.44	Add to
45A	731-1687	NO LONGER AVAILABLE	N/A	POA
45B	631-0027	WHL:STRG:13.25 DIA:4 SPK 5/8	£73.34	Add to
46A	731-1459A	CAP-STEERING WHL SQ 731-1459	£6.11	Add to
67A	734-1787A	RADKAPPE GELB 731-1787A	£14.67	Add to
68A	731-04039	CAP:NO SPRIGG:SMALL	£4.87	Add to
69A	734-0298	TIRE 13 X 5.00-6	£126.72	Add to
70A	634-0090	WHEEL RIM	£74.11	Add to
70B	634-0097B662	OYSTER GRAY 788-0662	£176.87	Add to
70C	634-0098A	NO LONGER AVAILABLE	N/A	POA
71A	737-0280	FITTING-GREASE	£13.79	Add to
71B	737-0212A	PLUG-GREASE FITTING 737-0212	£3.31	Add to
