AIR CLEANER, CARBURETOR

Parts list

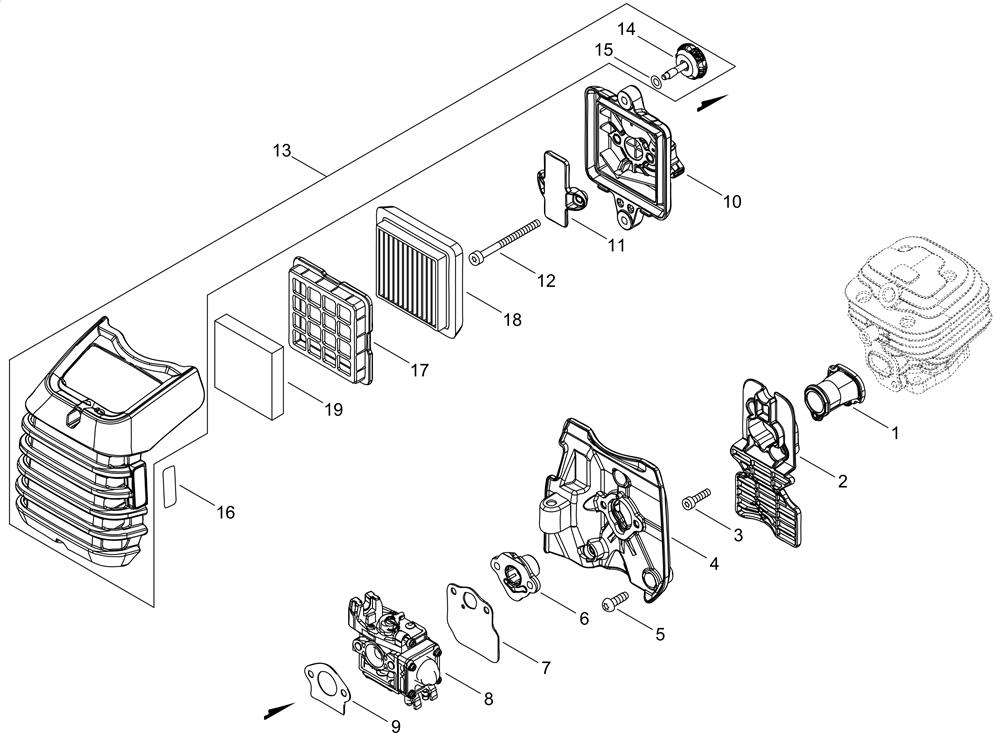

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001EC-A202-000330BELLOWS , INTAKE£16.53 Add to
003EC-V805-000150BOLT, TORX 5£2.66 Add to
005EC-V805-000000BOLT, TORX 5£2.17 Add to
007EC-V103-002010GASKET , INTAKE£2.66 Add to
008EC-A021-004831CARBURETOR , DIAPHRAGM£112.58 Add to
009EC-V103-001900GASKET , INTAKE£3.00 Add to
010EC-P021-050880CLEANER CASE ASY£15.79 Add to
011EC-A244-000370PLATE , PREVENT£16.23 Add to
013EC-P100-005291CLEANER COVER ASY£14.10 Add to
014EC-V299-000640KNOB , FASTENER£8.47 Add to
015EC-V340-000210WASHER£2.16 Add to
016EC-890332-52730LABLE, CHOKE£3.35 Add to
017EC-A227-000050PLATE , ELEMENT£5.10 Add to
018EC-A226-002030ELEMENT , AIR FILTER£15.00 Add to
019EC-A226-002040ELEMENT , AIR FILTER£3.82 Add to
