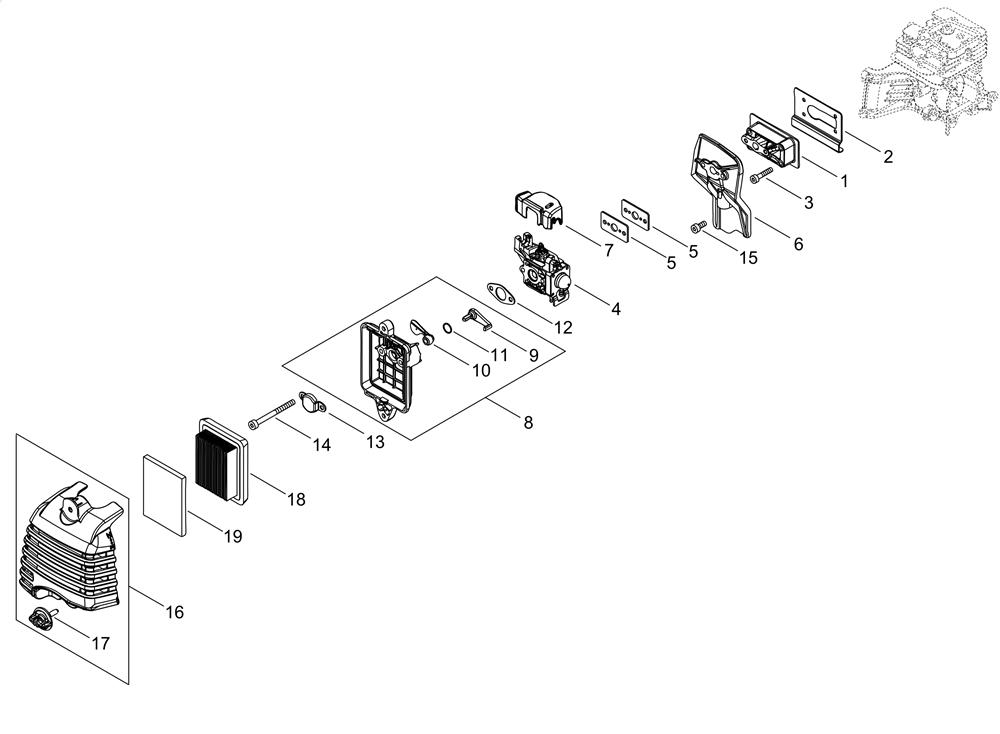

AIR CLEANER, CARBURETOR

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001EC-A200-001190INSULATOR , INTAKE£10.12 Add to
002EC-V103-001980GASKET , INTAKE£6.64 Add to
004EC-A021-004820CARB£115.29 Add to
005EC-V103-001990GASKET , INTAKE£2.31 Add to
006EC-A209-001070PLATE , INSULATOR£5.53 Add to
007EC-P200-000270DUST COVER KIT£11.96 Add to
008EC-A023-000360CASE , CLEANER£14.10 Add to
009EC-A242-000280LEVER , CHOKE£3.92 Add to
012EC-V103-001970GASKET , INTAKE£2.52 Add to
013EC-A244-000330PLATE , PREVENT£4.80 Add to
014EC-V805-000100BOLT, TORX 5£2.86 Add to
015EC-V805-000140BOLT , TORX 5£2.66 Add to
016EC-P100-004790CLEANER COVER ASY£17.45 Add to
017EC-A235-000450KNOB , CLEANER KIT£4.50 Add to
018EC-A226-000361ELEMET , AIR FILTER£8.89 Add to
019EC-A226-002200ELEMET , AIR FILTER£7.37 Add to
