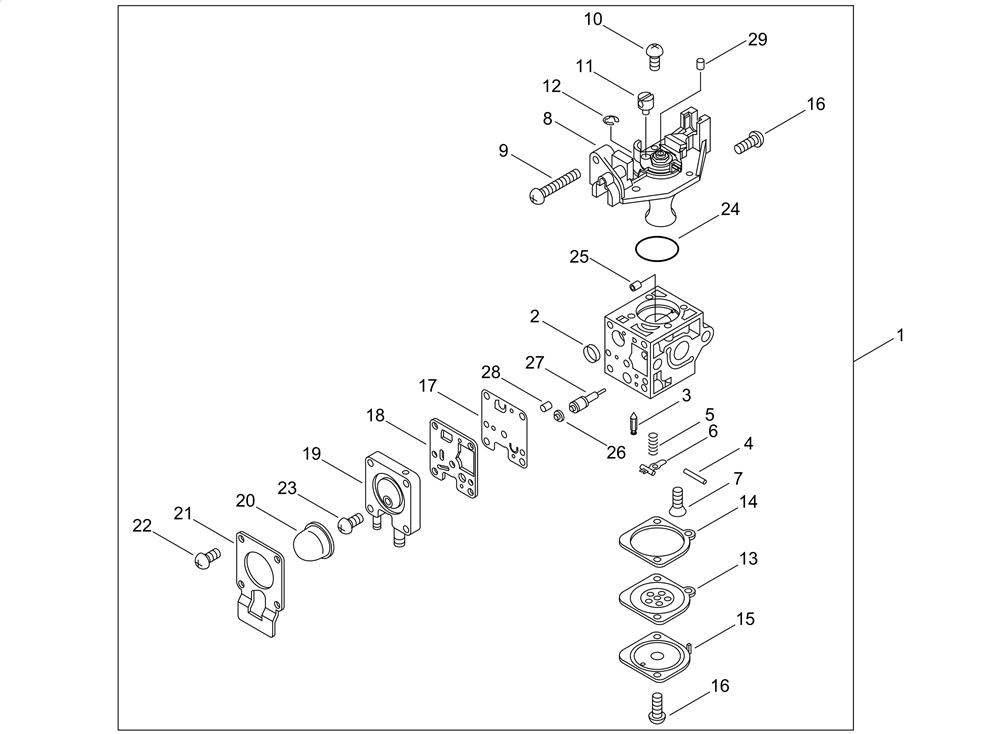

CARBURETOR

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001EC-A021-004900CARBURETOR, DIAPHRAGM£99.01 Add to
002EC-P005-000010STRAINER£3.70 Add to
003EC-125337-08260VALVE, INLET NEEDLE£10.91 Add to
004EC-125338-13930PIN, METERING ARM£3.92 Add to
005EC-P005-000940SPRING, METER. LEVER£3.57 Add to
006EC-125323-08260ARM, VALVE£6.02 Add to
007EC-125339-42030SCREW£3.92 Add to
008EC-P005-002050COVER ASSY, ROTOR£61.01 Add to
010EC-125344-13931SCREW£3.35 Add to
013EC-P005-003760DIAPHRAGM, METERING£18.06 Add to
014EC-P005-000200GASKET, METERING£3.70 Add to
015EC-125342-52130COVER, DIAPHRAGM£9.51 Add to
016EC-125344-52130SCREW£3.35 Add to
017EC-P005-000510DIAPHRAGM, PUMP£10.43 Add to
018EC-P005-000520GASKET, PUMP£5.85 Add to
019EC-P005-004240BASE, ASSY PRIMER£32.42 Add to
020EC-P005-003110PUMP, PRIMER£7.37 Add to
022EC-P005-001900SCREW£3.21 Add to
023EC-P005-000270SCREW£3.70 Add to
025EC-P005-001000ROLLER, GUIDE£4.01 Add to
027EC-P005-001260SCREW, MAIN MIXTURE£9.39 Add to
028EC-P005-001270PLUG, H ADJUST SCREW£3.35 Add to
