CARBURETOR

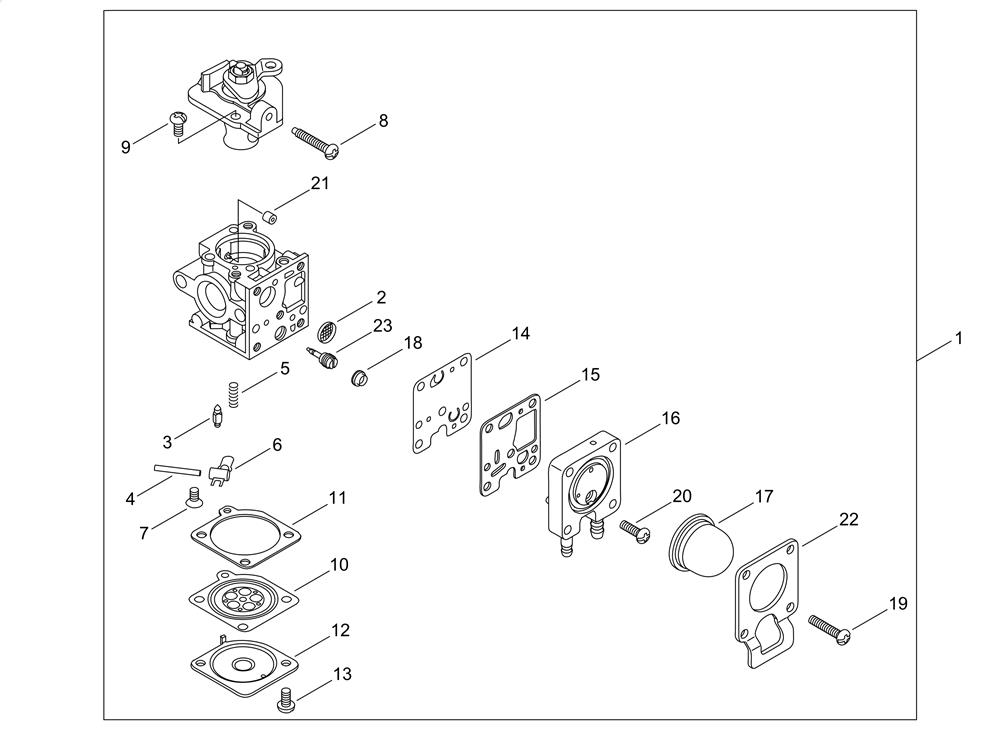

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	EC-A021-004700	CARBURETOR , DIAPHRAGM	£85.43	Add to
002	EC-P005-000010	STRAINER	£3.70	Add to
003	EC-P005-004030	VALVE , INLET NEEDLE	£10.91	Add to
004	EC-125338-13930	PIN, METERING ARM	£3.92	Add to
005	EC-P005-000940	SPRING, METER. LEVER	£3.57	Add to
006	EC-125323-08260	ARM, VALVE	£6.02	Add to
007	EC-125339-42030	SCREW	£3.92	Add to
009	EC-125344-13931	SCREW	£3.35	Add to
010	EC-P005-003760	DIAPHRAGM, METERING	£18.06	Add to
011	EC-P005-000200	GASKET, METERING	£3.70	Add to
012	EC-125342-52130	COVER, DIAPHRAGM	£9.51	Add to
013	EC-125344-52130	SCREW	£3.35	Add to
014	EC-P005-000510	DIAPHRAGM, PUMP	£10.43	Add to
015	EC-P005-000520	GASKET, PUMP	£5.85	Add to
017	EC-P005-003110	PUMP, PRIMER	£7.37	Add to
019	EC-P005-001900	SCREW	£3.21	Add to
020	EC-P005-000270	SCREW	£3.70	Add to
021	EC-P005-001000	ROLLER, GUIDE	£4.01	Add to
