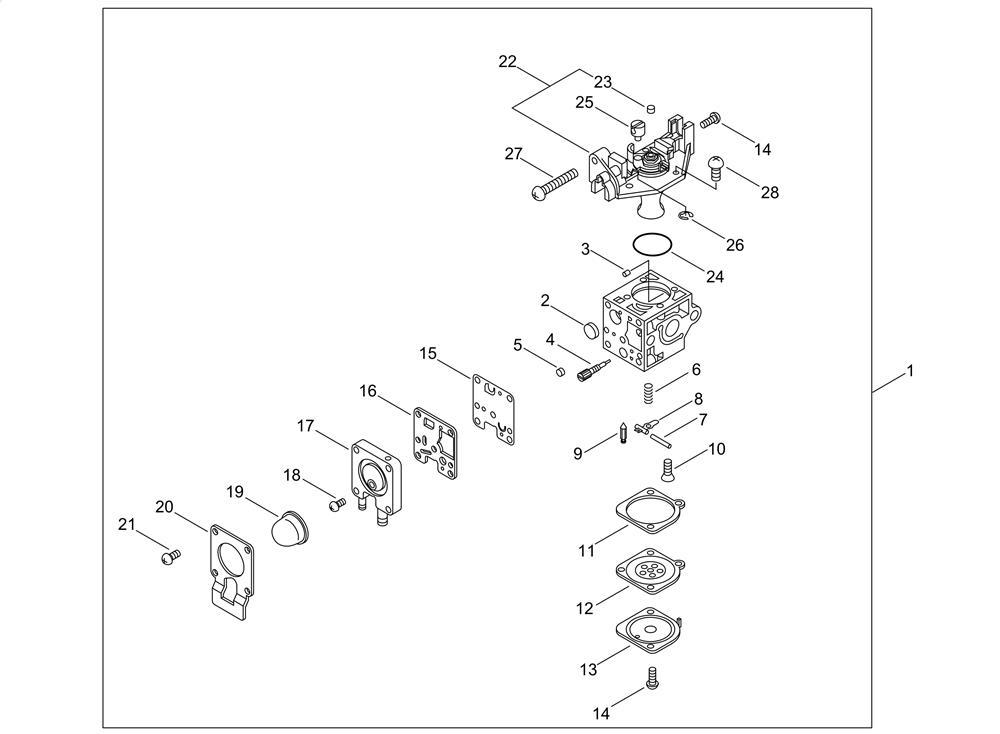

CARBURETOR

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	EC-A021-005101	CARBURETOR	£104.44	Add to
002	EC-P005-000010	STRAINER	£3.70	Add to
003	EC-P005-001000	ROLLER, GUIDE	£4.01	Add to
004	EC-P005-001260	SCREW, MAIN MIXTURE	£9.39	Add to
007	EC-125338-13930	PIN, METERING ARM	£3.92	Add to
008	EC-125323-08260	ARM, VALVE	£6.02	Add to
009	EC-125337-08260	VALVE, INLET NEEDLE	£10.91	Add to
010	EC-125339-42030	SCREW	£3.92	Add to
011	EC-P005-000200	GASKET, METERING	£3.70	Add to
012	EC-P005-003760	DIAPHRAGM, METERING	£18.06	Add to
013	EC-125342-52130	COVER, DIAPHRAGM	£9.51	Add to
014	EC-125344-52130	SCREW	£3.35	Add to
015	EC-P005-000510	DIAPHRAGM, PUMP	£10.43	Add to
016	EC-P005-000520	GASKET, PUMP	£5.85	Add to
017	EC-P005-004240	BASE, ASSY PRIMER	£32.42	Add to
018	EC-P005-000270	SCREW	£3.70	Add to
019	EC-P005-003110	PUMP, PRIMER	£7.37	Add to
021	EC-P005-001900	SCREW	£3.21	Add to
022	EC-P005-004950	COVER ASY , ROTOR	£56.24	Add to
023	EC-P005-001270	PLUG, H ADJUST SCREW	£3.35	Add to
028	EC-125344-13931	SCREW	£3.35	Add to
