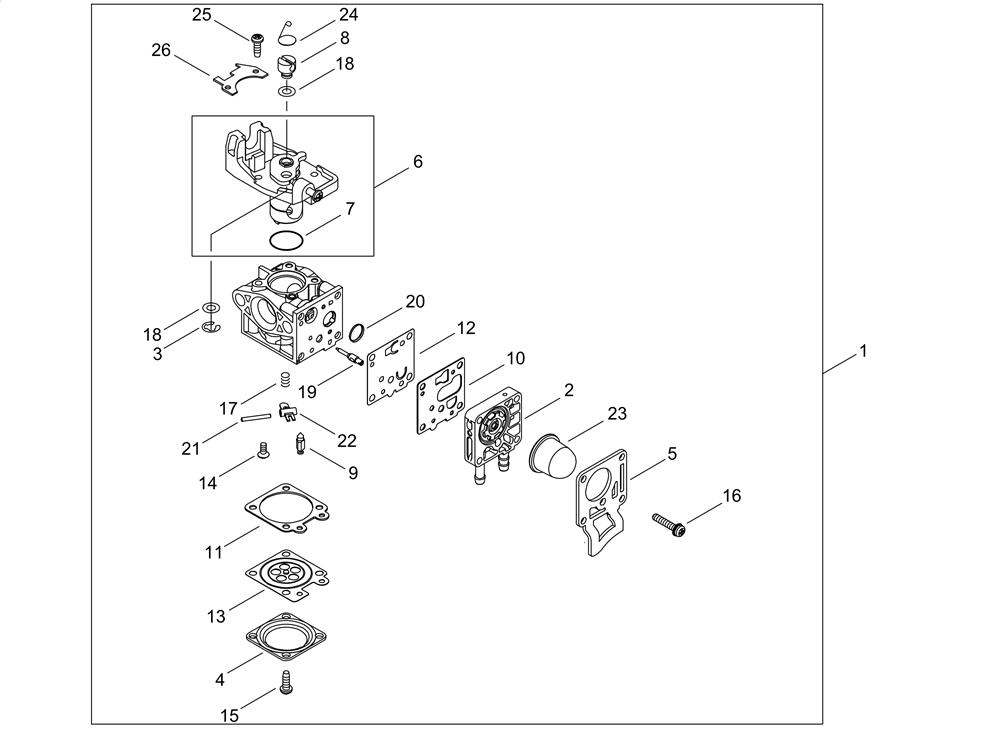

CARBURETOR

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	EC-A021-004831	CARBURETOR , DIAPHRAGM	£112.58	Add to
002	EC-P003-006120	BODY ASSEMBLEY , PUMP	£24.78	Add to
004	EC-123142-03930	COVER , M , DIAPHRAGM	£7.25	Add to
007	EC-P003-004480	O-RING	£3.21	Add to
008	EC-P003-005850	SWIVEL	£8.59	Add to
009	EC-123137-19830	VALVE, INLET NEEDLE	£10.12	Add to
010	EC-P003-004530	GASKET , FUEL PUMP	£4.32	Add to
011	EC-123140-27230	GASKET, M , DIAPHRAGM	£4.00	Add to
012	EC-P003-004540	DIAPHRAGM , FUEL PUMP	£10.43	Add to
013	EC-P003-001670	DIAPHRAGM , METERING	£18.06	Add to
018	EC-P003-001710	WASHER	£3.21	Add to
019	EC-P003-005880	NEEDLE	£13.78	Add to
020	EC-123126-10631	SCREEN, INLET	£3.21	Add to
021	EC-123138-03930	PIN, METERING LEVER	£3.21	Add to
022	EC-P003-001630	LEVER , METERING	£6.02	Add to
023	EC-123181-09560	PUMP , PRIMER	£7.37	Add to
024	EC-P003-005890	CLIP	£4.00	Add to
