CARBURETOR

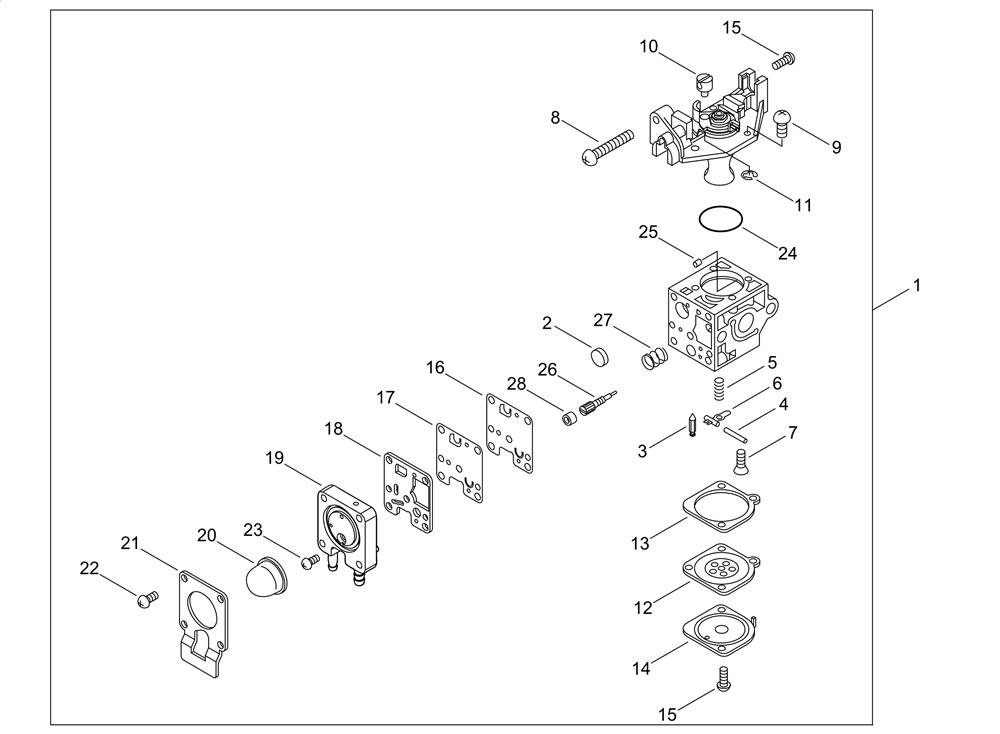

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	EC-A021-004820	CARB	£115.29	Add to
002	EC-P005-000010	STRAINER	£3.70	Add to
003	EC-125337-08260	VALVE, INLET NEEDLE	£10.91	Add to
004	EC-125338-13930	PIN, METERING ARM	£3.92	Add to
006	EC-125323-08260	ARM, VALVE	£6.02	Add to
007	EC-125339-42030	SCREW	£3.92	Add to
009	EC-125344-13931	SCREW	£3.35	Add to
012	EC-P005-003760	DIAPHRAGM, METERING	£18.06	Add to
013	EC-P005-000200	GASKET, METERING	£3.70	Add to
014	EC-125342-52130	COVER, DIAPHRAGM	£9.51	Add to
015	EC-125344-52130	SCREW	£3.35	Add to
016	EC-P005-003930	DIAPHRAGM , PUMP	£10.43	Add to
017	EC-P005-003940	DIAPHRAGM , PUMP	£10.44	Add to
018	EC-P005-000520	GASKET, PUMP	£5.85	Add to
019	EC-P005-004240	BASE, ASSY PRIMER	£32.42	Add to
020	EC-P005-003110	PUMP, PRIMER	£7.37	Add to
022	EC-P005-001900	SCREW	£3.21	Add to
023	EC-P005-000270	SCREW	£3.70	Add to
024	EC-P005-000280	O-RING	£7.37	Add to
025	EC-P005-001000	ROLLER, GUIDE	£4.01	Add to
027	EC-P005-003960	SPRING , PUMP	£5.10	Add to
028	EC-P005-001270	PLUG, H ADJUST SCREW	£3.35	Add to
