CARBURETOR

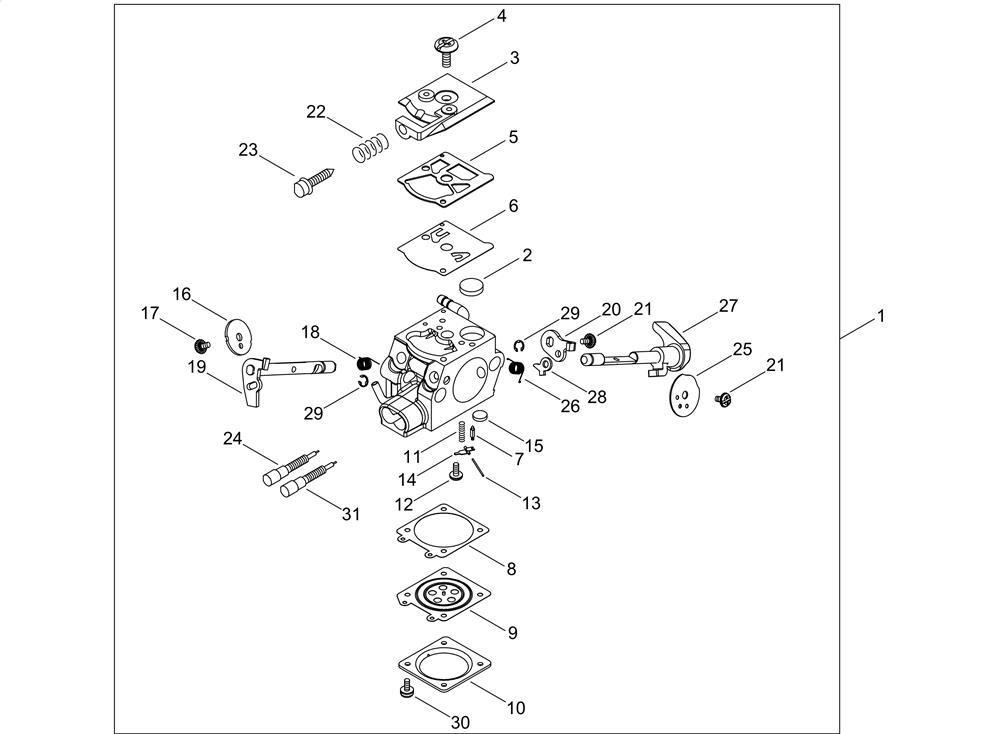

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	EC-A021-005020	CARBURETOR , DIAPHRAGM	£116.66	Add to
002	EC-123126-10631	SCREEN, INLET	£3.21	Add to
005	EC-123125-15030	GASKET, FUEL PUMP	£5.85	Add to
006	EC-123112-15030	DIAPHRAGM, FUEL PUMP	£10.43	Add to
007	EC-123137-19830	VALVE, INLET NEEDLE	£10.12	Add to
008	EC-123140-27230	GASKET, M , DIAPHRAGM	£4.00	Add to
009	EC-P003-001850	DIAPHRAGM, METERING	£18.06	Add to
010	EC-123142-03930	COVER , M , DIAPHRAGM	£7.25	Add to
013	EC-123138-03930	PIN, METERING LEVER	£3.21	Add to
015	EC-123146-10631	PLUG, WELCH	£3.57	Add to
017	EC-P003-002380	SCREW	£3.21	Add to
018	EC-123113-37530	SPRING , THROTTLE RTN	£3.71	Add to
021	EC-123114-38830	SCREW	£3.21	Add to
022	EC-123133-04260	SPRING, IDLE ADJUST	£3.70	Add to
024	EC-P003-004190	NEEDLE	£14.70	Add to
029	EC-123127-15030	RING	£2.03	Add to
031	EC-P003-004180	NEEDLE	£17.45	Add to
