CARBURETOR

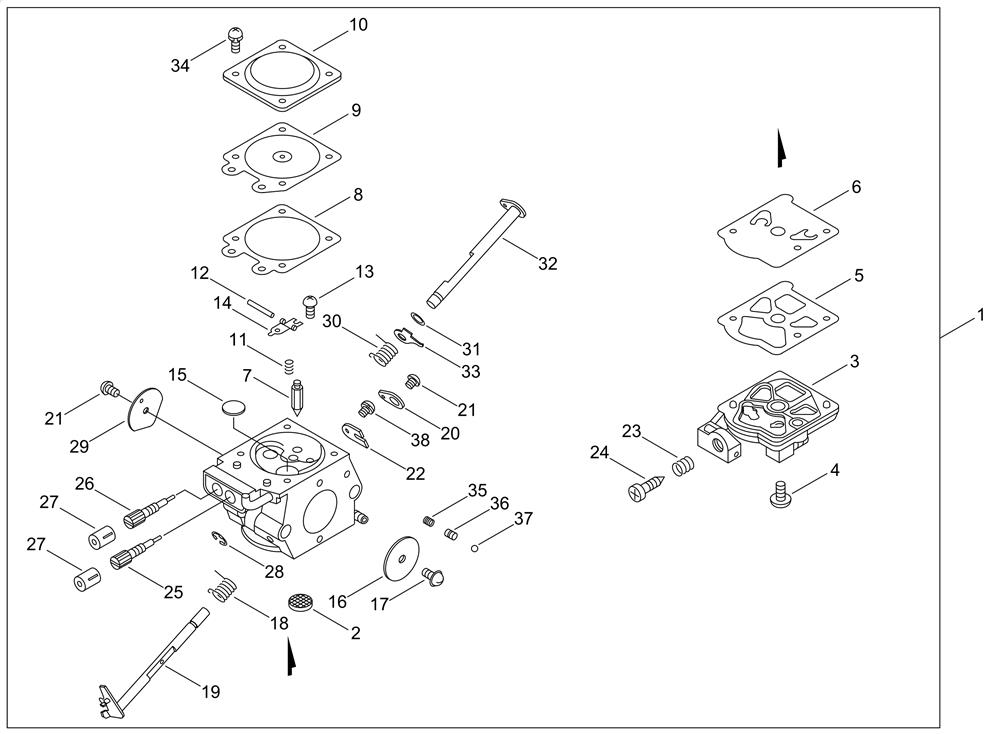

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	EC-A021-001700	CARBURETOR , DIAPHRAGM	£119.36	Add to
002	EC-123126-10631	SCREEN, INLET	£3.21	Add to
005	EC-123125-15030	GASKET, FUEL PUMP	£5.85	Add to
006	EC-123112-15030	DIAPHRAGM, FUEL PUMP	£10.43	Add to
007	EC-123137-19830	VALVE, INLET NEEDLE	£10.12	Add to
008	EC-123140-03930	GASKET , M.DIAPHRAGM	£4.01	Add to
009	EC-P003-001850	DIAPHRAGM, METERING	£18.06	Add to
010	EC-123142-03930	COVER , M , DIAPHRAGM	£7.25	Add to
012	EC-123138-03930	PIN, METERING LEVER	£3.21	Add to
015	EC-123146-10631	PLUG, WELCH	£3.57	Add to
018	EC-123113-37530	SPRING , THROTTLE RTN	£3.71	Add to
021	EC-123114-38830	SCREW	£3.21	Add to
023	EC-123133-04260	SPRING, IDLE ADJUST	£3.70	Add to
024	EC-123134-04260	SCREW , IDLE ADJUST	£3.71	Add to
027	EC-P003-000010	LIMITER CAP	£4.33	Add to
028	EC-123127-15030	RING	£2.03	Add to
