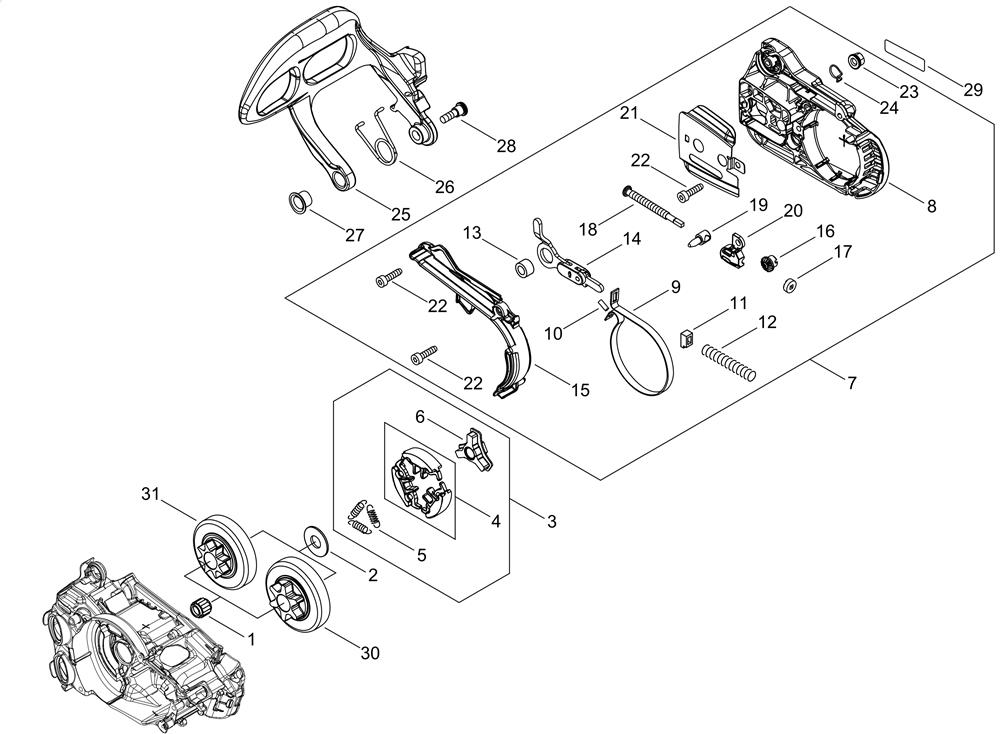

CHAIN BRAKE

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001EC-V555-000190BEARING , NEEDLE 10£13.36 Add to
002EC-A551-000170PLATE , CLUTCH£3.92 Add to
003EC-A056-000830CLUTCH ASY£62.34 Add to
004EC-P100-004180CLUTCH SHOE SET£30.90 Add to
005EC-A566-000290SPRING , CLUTCH£3.00 Add to
006EC-A566-000290SPRING , CLUTCH£3.00 Add to
007EC-P100-002170GUARD , SPROCKET ASY£80.00 Add to
008EC-C300-001140GUARD , SPROCKET£39.44 Add to
009EC-C328-000330BRAKE BAND£11.83 Add to
010EC-93050-30080ROLLER£1.96 Add to
011EC-V376-000450SPACER£2.17 Add to
012EC-V450-002080SPRING , COMPRESSION£3.92 Add to
013EC-V355-000860COLLAR , 8£2.17 Add to
014EC-C334-000340CONNECTOR , BRAKE£11.96 Add to
015EC-C345-000640COVER , BRAKE£7.98 Add to
016EC-V651-001060GEAR , BEVEL£3.92 Add to
017EC-V651-000011GEAR , BEVEL£10.00 Add to
018EC-V203-000041BOLT , 5£7.06 Add to
019EC-C309-000110TENSIONER , CHAIN£3.35 Add to
020EC-V355-000840COLLAR , 8£3.92 Add to
021EC-C305-000521PLATE , SPROCKET GUARD£4.32 Add to
022EC-V804-000000BOLT TORX 4£2.16 Add to
023EC-V265-000550NUT , 8£4.04 Add to
024EC-C649-000420HOOK£4.40 Add to
025EC-C320-000511LEVER , BRAKE£28.44 Add to
026EC-V452-001660SPRING , TORSION£3.92 Add to
027EC-V356-000780COLLAR , 10£3.57 Add to
028EC-V203-002270BOLT , 5£1.96 Add to
029EC-X502-000340LABEL , ECHO£3.70 Add to
030EC-A556-001710DRUM , CLUTCH 1/4£47.07 Add to
031EC-A556-001720DRUM , CLUTCH 3/8£47.07 Add to
