CHAIN BRAKE

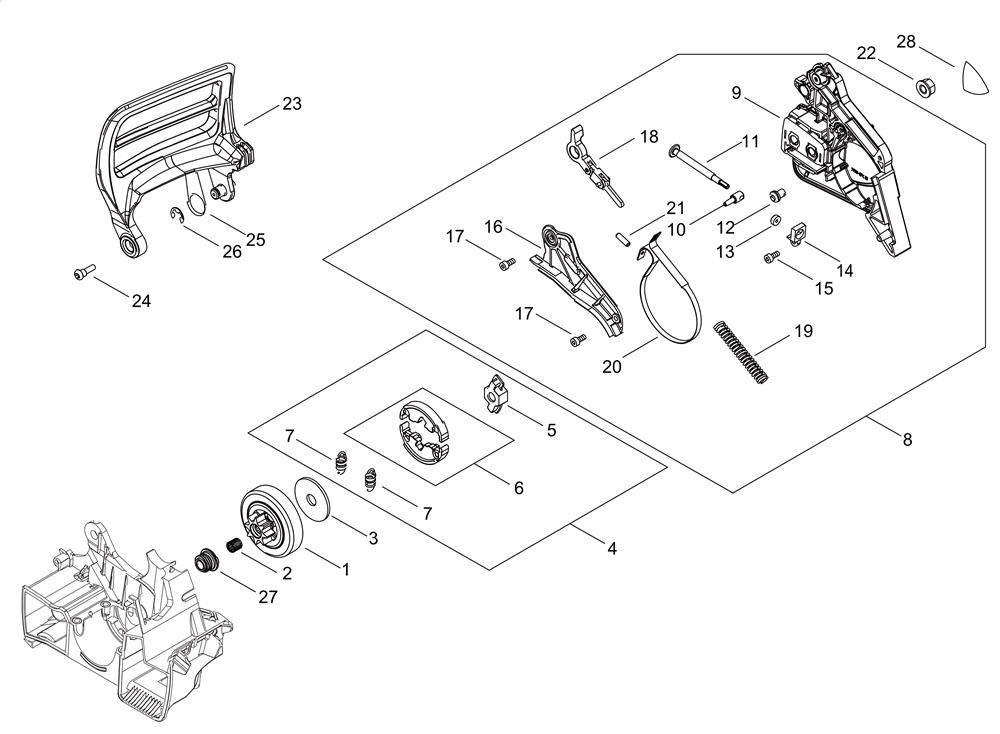

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	EC-A556-001880	CLUTCH DRUM	£36.37	Add to
002	EC-V555-000150	BEARING , NEEDLE	£8.27	Add to
003	EC-A551-000210	PLATE , CLUTCH	£4.20	Add to
004	EC-A056-000870	CLUTCH ASY	£40.96	Add to
007	EC-A566-000350	CLUTCH SPRING	£6.15	Add to
008	EC-P100-009580	GUARD , SPROCKET ASY	£80.00	Add to
009	EC-C300-001190	GUARD , SPROCKET	£44.03	Add to
010	EC-C309-000030	TENSIONER , CHAIN	£6.15	Add to
011	EC-V203-000110	BOLT	£6.93	Add to
012	EC-V651-000001	GEAR , BEVEL	£10.91	Add to
013	EC-V651-000011	GEAR , BEVEL	£10.00	Add to
014	EC-V355-000140	COLLAR , 8	£2.66	Add to
015	EC-V804-000000	BOLT TORX 4	£2.16	Add to
017	EC-V804-000000	BOLT TORX 4	£2.16	Add to
018	EC-C334-000100	CONNECTOR , BRAKE	£13.78	Add to
019	EC-V450-000070	SPRING , COMPRESSION	£3.92	Add to
020	EC-C328-000030	BRAKE BAND	£11.04	Add to
021	EC-93050-30098	ROLLER	£1.97	Add to
022	EC-V265-000200	NUT	£3.00	Add to
023	EC-C320-000590	LEVER , BRAKE	£19.90	Add to
024	EC-V203-002270	BOLT , 5	£1.96	Add to
025	EC-V452-000250	SPRING , TORSION	£3.35	Add to
026	EC-900700-00008	E-RING 8	£1.61	Add to
027	EC-V652-000280	GEAR , WORM	£3.57	Add to
