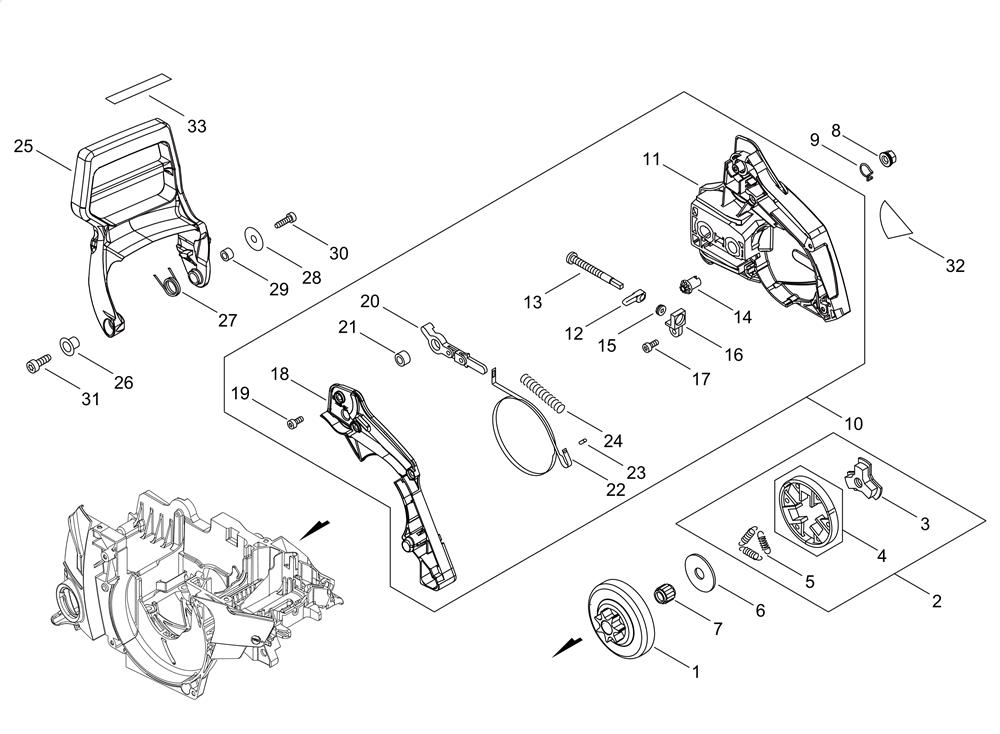

CHAIN BRAKE

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	EC-A556-000481	DRUM , CLUTCH	£42.01	Add to
002	EC-A056-000840	CLUTCH ASY	£62.35	Add to
004	EC-P021-007051	CLUTCH SHOE SET	£35.77	Add to
005	EC-V451-000500	SPRING , TENSION	£4.49	Add to
007	EC-V555-000150	BEARING , NEEDLE	£8.27	Add to
008	EC-V265-000550	NUT , 8	£4.04	Add to
009	EC-C649-000420	HOOK	£4.40	Add to
010	EC-P100-004653	GUARD SPROCKET	£80.00	Add to
011	EC-C300-001161	GUARD , SPROCKET	£45.24	Add to
012	EC-C309-000160	CHAIN TENSIONER	£6.03	Add to
013	EC-V203-000110	BOLT	£6.93	Add to
014	EC-V651-001040	GEAR , BEVEL	£16.71	Add to
015	EC-V651-001050	GEAR , BEVEL	£8.46	Add to
016	EC-V355-000140	COLLAR , 8	£2.66	Add to
017	EC-V804-000010	BOTL, TORX 4	£2.17	Add to
019	EC-V804-000010	BOTL, TORX 4	£2.17	Add to
020	EC-C334-000100	CONNECTOR , BRAKE	£13.78	Add to
021	EC-433116-35430	SPACER	£3.71	Add to
022	EC-C328-000110	BRAKE BAND	£13.11	Add to
023	EC-900330-30120	ROLLER	£1.82	Add to
024	EC-V450-000070	SPRING , COMPRESSION	£3.92	Add to
025	EC-C320-000530	LEVER , BRAKE	£21.61	Add to
026	EC-V356-000430	COLLAR , 10	£2.66	Add to
027	EC-V452-001281	SPRING , TORSION	£3.35	Add to
028	EC-177214-03930	WASHER	£2.52	Add to
029	EC-433116-35430	SPACER	£3.71	Add to
030	EC-V804-000010	BOTL, TORX 4	£2.17	Add to
031	EC-V805-000010	BOLT, TORX 5	£2.17	Add to
033	EC-X505-010150	LABEL , CAUTION	£3.35	Add to
