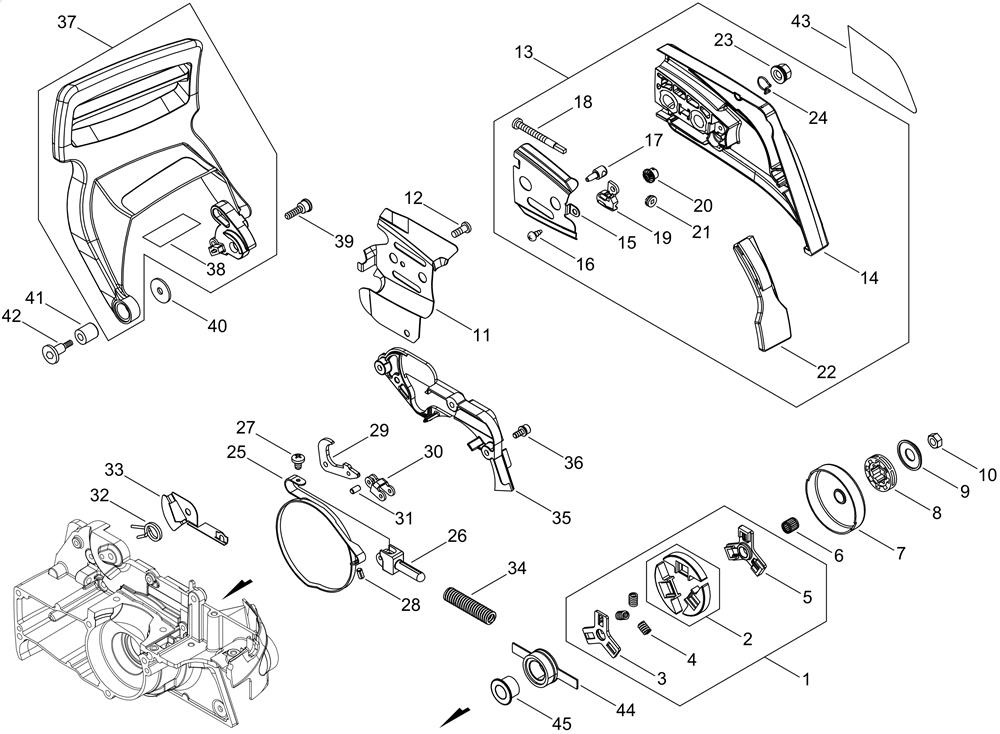

CHAIN BRAKE

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001EC-A056-000611CLUTCH ASY£51.36 Add to
004EC-V451-000930SPRING£3.35 Add to
006EC-V555-000150BEARING , NEEDLE£8.27 Add to
007EC-A556-001121DRUM , CLUTCH£39.13 Add to
008EC-175114-12530SPROCKET , RIM .325£12.75 Add to
009EC-V307-000451WASHER£3.15 Add to
010EC-V265-000211NUT£3.71 Add to
011EC-C305-000411PLATE , SPROCKET GUARD£12.50 Add to
012EC-V252-000470SCREW£1.82 Add to
013EC-P100-005710GUARD , SPROCKET ASY£50.93 Add to
014EC-C300-001040GUARD , SPROCKET£45.24 Add to
015EC-C305-000470PLATE , SPROCKET GUARD£9.08 Add to
016EC-900253-04008SCREW , TAPPING£1.47 Add to
017EC-C309-000190TENSIONER , CHAIN£3.71 Add to
018EC-V203-000021BOLT , 5£6.93 Add to
019EC-V355-000840COLLAR , 8£3.92 Add to
020EC-V651-001060GEAR , BEVEL£3.92 Add to
021EC-V651-000011GEAR , BEVEL£10.00 Add to
022EC-C302-000030PROTECTOR£4.80 Add to
023EC-V265-000550NUT , 8£4.04 Add to
024EC-C649-000420HOOK£4.40 Add to
025EC-C328-000220BRAKE BAND£24.17 Add to
026EC-C334-000180CONNECTOR , BRAKE£4.92 Add to
029EC-C334-000350CONNECTOR , BRAKE£4.20 Add to
030EC-C334-000200CONNECTOR , BRAKE£7.98 Add to
031EC-900330-30120ROLLER£1.82 Add to
033EC-C347-000010PLATE , BRAKE SEAL£5.85 Add to
034EC-V450-001160SPRING , COIL£7.56 Add to
035EC-C345-000431COVER , BRAKE£6.76 Add to
037EC-P021-048630BRAKE LEVER ASY£19.90 Add to
041EC-J211-000430BUSH£2.52 Add to
042EC-V203-001410BOLT£2.86 Add to
043EC-X502-001020LABEL , ECHO£3.92 Add to
044EC-P021-023110GEAR£33.02 Add to
045EC-V357-000370COLLAR , 12£7.37 Add to
