CHAIN BRAKE

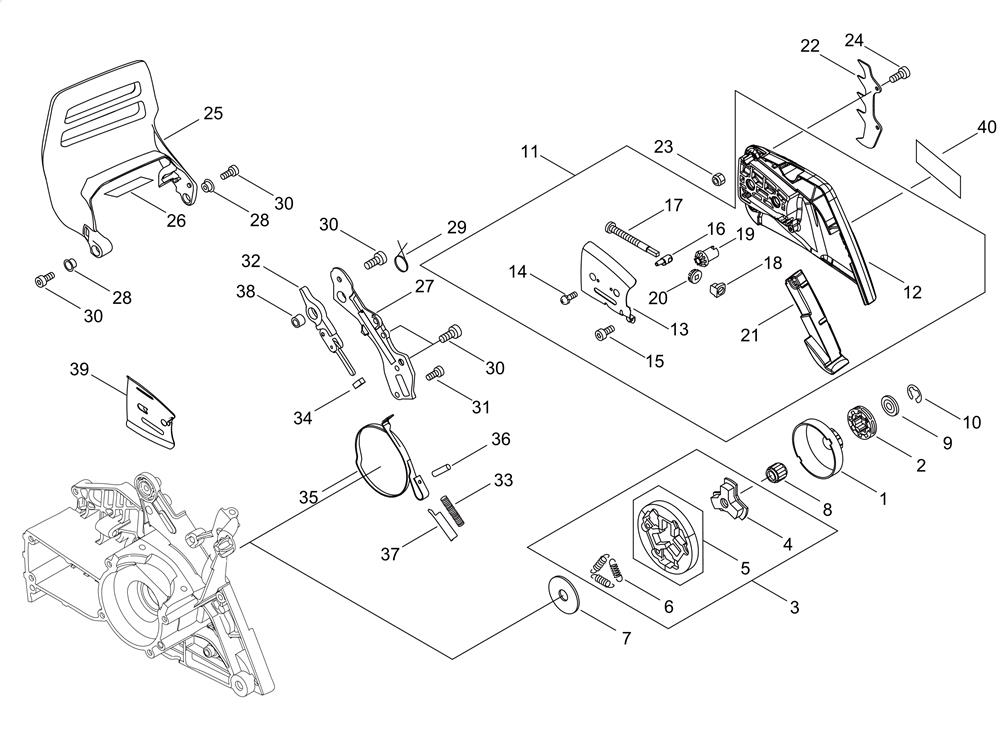

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	EC-A556-001610	DRUM , CLUTCH	£59.91	Add to
002	EC-175033-14731	SPROCKET , RIM	£17.94	Add to
003	EC-A056-000221	CLUTCH ASY	£64.13	Add to
005	EC-P021-007051	CLUTCH SHOE SET	£35.77	Add to
006	EC-V451-000500	SPRING , TENSION	£4.49	Add to
007	EC-A551-000110	PLATE , CLUTCH	£5.10	Add to
008	EC-V555-000010	BEARING , NEEDLE 10	£13.36	Add to
009	EC-V307-000520	WASHER	£3.35	Add to
010	EC-V583-000440	RING	£1.96	Add to
011	EC-P100-008890	CHAIN GUARD	£89.50	Add to
013	EC-C305-000101	PLATE , SPROCKET GUARD	£9.20	Add to
015	EC-V804-000000	BOLT TORX 4	£2.16	Add to
016	EC-C309-000160	CHAIN TENSIONER	£6.03	Add to
017	EC-V203-002140	BOLT	£6.93	Add to
018	EC-V355-000800	COLLAR , 8	£2.16	Add to
019	EC-V651-001040	GEAR , BEVEL	£16.71	Add to
020	EC-V651-001050	GEAR , BEVEL	£8.46	Add to
022	EC-C304-000300	SPIKE	£19.47	Add to
023	EC-900560-00005	NUT , LOCK	£1.96	Add to
024	EC-V805-000300	BOLT, TORX 5	£2.66	Add to
025	EC-C320-000182	LEVER , BRAKE	£28.43	Add to
027	EC-C345-000283	COVER , BRAKE	£8.17	Add to
028	EC-V356-000440	COLLAR , 10	£2.66	Add to
029	EC-V452-000400	SPRING , TORSION	£3.35	Add to
030	EC-V805-000000	BOLT, TORX 5	£2.17	Add to
031	EC-V804-000000	BOLT TORX 4	£2.16	Add to
032	EC-C334-000111	CONNECTOR , BRAKE	£13.79	Add to
033	EC-V450-000740	SPRING , COMPRESSION	£5.85	Add to
034	EC-V376-000450	SPACER	£2.17	Add to
035	EC-C328-000121	BRAKE BAND	£21.12	Add to
036	EC-93050-30098	ROLLER	£1.97	Add to
037	EC-C603-000220	PLATE , SIDE	£3.35	Add to
038	EC-V356-000470	COLLAR , 10	£4.92	Add to
039	EC-C305-000111	PLATE , SPROCKET GUARD	£9.20	Add to
040	EC-X502-000340	LABEL , ECHO	£3.70	Add to
