CRANKCASE

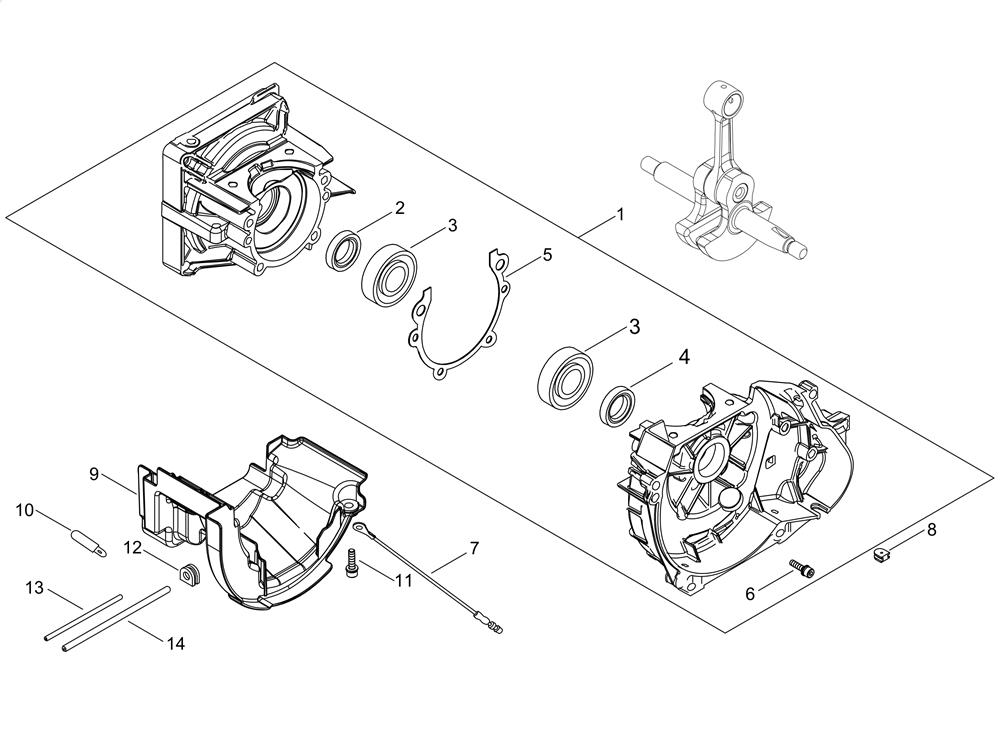

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001EC-P100-002630CRANKCASE SET£128.88 Add to
002EC-V505-000020OIL SEAL 12£7.25 Add to
003EC-900888-36201BEARING , BALL£6.32 Add to
004EC-100213-05530OIL SEAL£7.37 Add to
005EC-V102-000250GASKET , CRANKCASE£3.70 Add to
010EC-159116-21231CLAMP£2.52 Add to
011EC-V835-000000BOLT, TORX 5£2.66 Add to
012EC-156110-04920BUSHING£2.66 Add to
014EC-V475-007610TUBE£2.52 Add to
