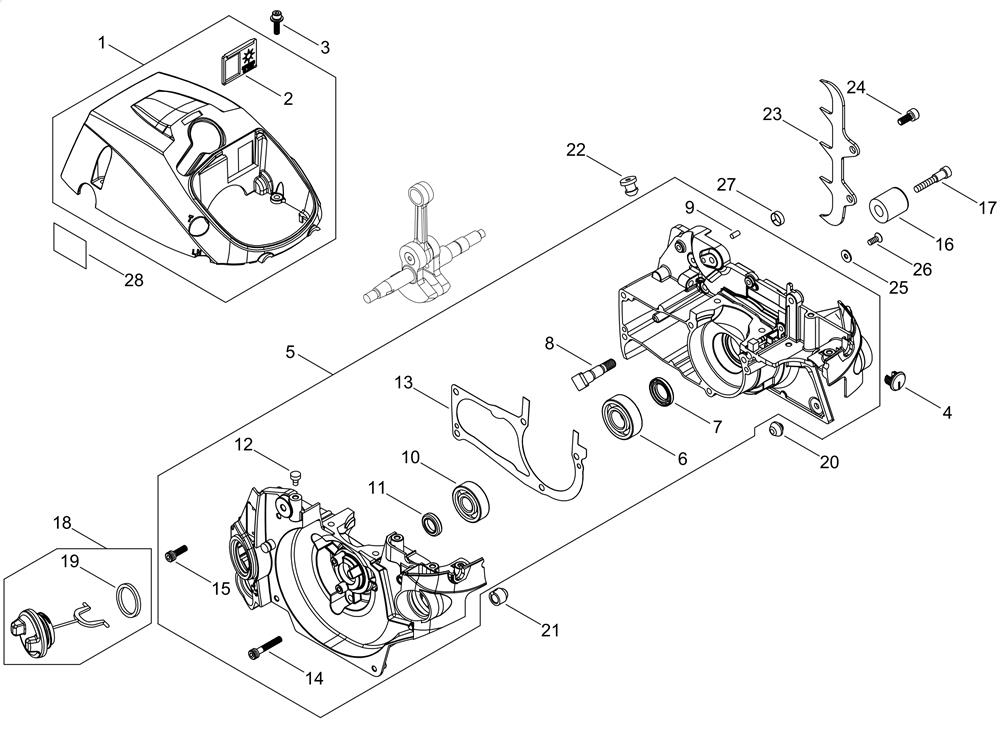

CRANKCASE

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001EC-P100-000740CYLINDER COVER ASY£36.37 Add to
005EC-P100-005021CRANKCASE SET£196.75 Add to
007EC-V508-000070OIL SEAL£7.37 Add to
008EC-V225-000150BOLT , STUD£4.80 Add to
010EC-94035-36201BEARING BALL£7.98 Add to
011EC-V505-000070OIL SEAL£6.15 Add to
016EC-C310-000110CATCHER , CHAIN£3.90 Add to
017EC-V203-002410BOLT , 5£1.96 Add to
018EC-C020-000040CAP£8.89 Add to
020EC-V420-004980CUSHION£6.45 Add to
021EC-V420-002780CUSHION£2.16 Add to
022EC-V133-000040GROMMET£13.36 Add to
023EC-C304-000310SPIKE£19.47 Add to
026EC-900212-04008SCREW£1.47 Add to
027EC-V355-000460COLLAR , 8£2.16 Add to
028EC-890345-39231LABEL , CAUTION£3.35 Add to
