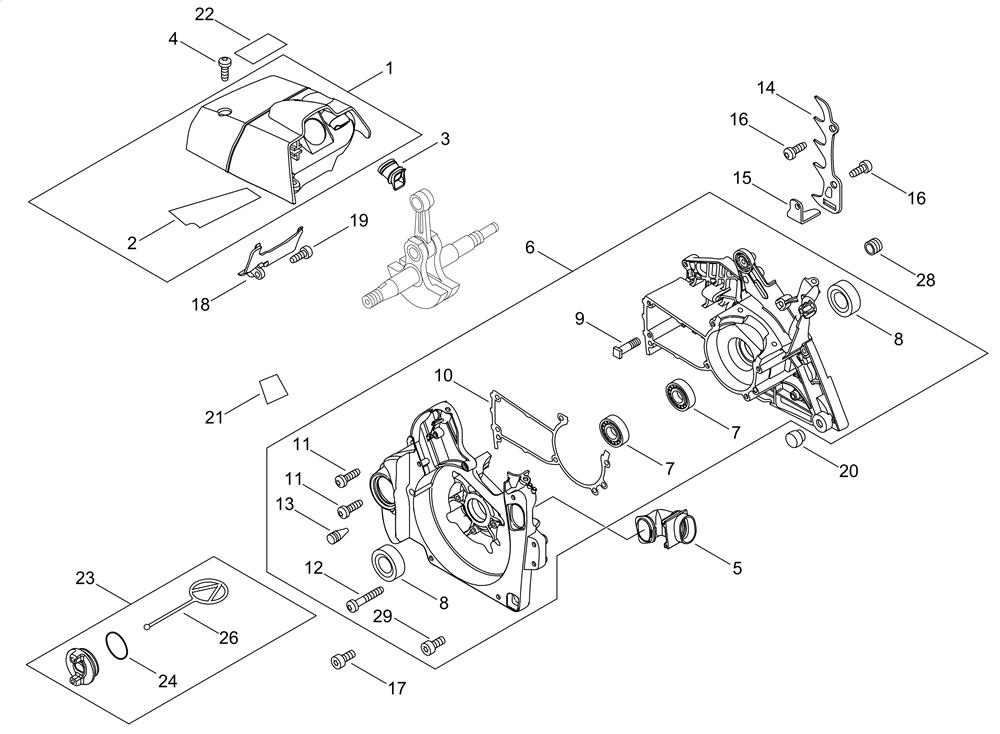

CRANKCASE

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001EC-P100-002830CYLINDER COVER ASY£13.66 Add to
003EC-A239-000070PIPE , INTAKE£4.49 Add to
004EC-V805-000000BOLT, TORX 5£2.17 Add to
007EC-94036-46202BEARING BALL£7.98 Add to
008EC-V508-000100SEAL , OIL 15£5.85 Add to
009EC-433011-19831STUD , GUIDE BAR£4.20 Add to
010EC-V102-000060GASKET , CRANKCASE£3.71 Add to
011EC-V805-000010BOLT, TORX 5£2.17 Add to
012EC-V805-000020BOLT, TORX 5£2.16 Add to
013EC-436114-13930VALVE , CHECK£7.85 Add to
015EC-C310-000010CATCHER , CHAIN£4.33 Add to
016EC-V805-000000BOLT, TORX 5£2.17 Add to
017EC-V805-000170BOLT, TORX 5£2.66 Add to
019EC-V805-000000BOLT, TORX 5£2.17 Add to
022EC-890345-39231LABEL , CAUTION£3.35 Add to
023EC-P100-004881CAP , OIL ASY£12.43 Add to
026EC-A365-000050CONNECTOR, CAP£3.21 Add to
028EC-132115-01462GROMMET£2.52 Add to
029EC-V805-000160BOLT, TORX 5£2.66 Add to
