CRANKCASE

Parts list

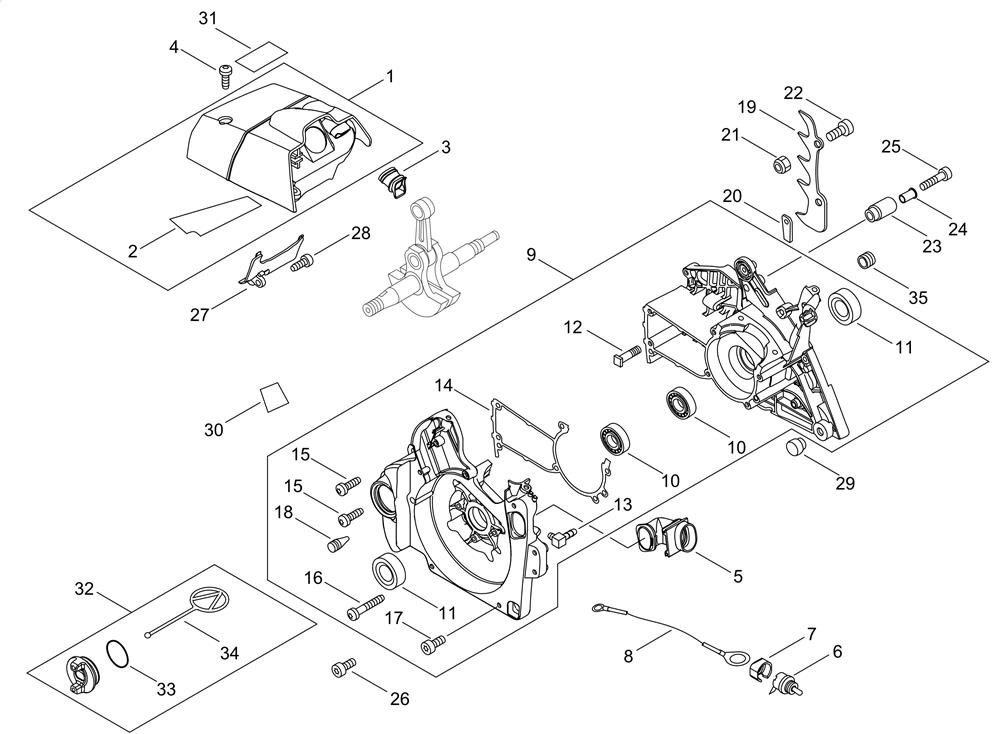

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001EC-P100-002830CYLINDER COVER ASY£13.66 Add to
003EC-A239-000070PIPE , INTAKE£4.49 Add to
004EC-V805-000000BOLT, TORX 5£2.17 Add to
006EC-A440-001190SWITCH , ON OFF£12.26 Add to
008EC-V485-001101LEAD£4.92 Add to
010EC-94036-46202BEARING BALL£7.98 Add to
011EC-V508-000100SEAL , OIL 15£5.85 Add to
012EC-433011-19831STUD , GUIDE BAR£4.20 Add to
014EC-V102-000060GASKET , CRANKCASE£3.71 Add to
015EC-V805-000010BOLT, TORX 5£2.17 Add to
016EC-V805-000020BOLT, TORX 5£2.16 Add to
017EC-V805-000160BOLT, TORX 5£2.66 Add to
018EC-436114-13930VALVE , CHECK£7.85 Add to
019EC-C304-000290SPIKE£12.43 Add to
020EC-V376-001890SPACER£2.52 Add to
021EC-900560-00005NUT , LOCK£1.96 Add to
022EC-V805-000250BOLT , TORX 5£2.66 Add to
023EC-C310-000030CATCHER , CHAIN£3.71 Add to
024EC-V353-000120COLLAR , 5£5.53 Add to
025EC-V805-000020BOLT, TORX 5£2.16 Add to
026EC-V805-000170BOLT, TORX 5£2.66 Add to
028EC-V805-000000BOLT, TORX 5£2.17 Add to
031EC-890345-39231LABEL , CAUTION£3.35 Add to
032EC-P100-004881CAP , OIL ASY£12.43 Add to
034EC-A365-000050CONNECTOR, CAP£3.21 Add to
035EC-132115-01462GROMMET£2.52 Add to
