CRANKCASE

Parts list

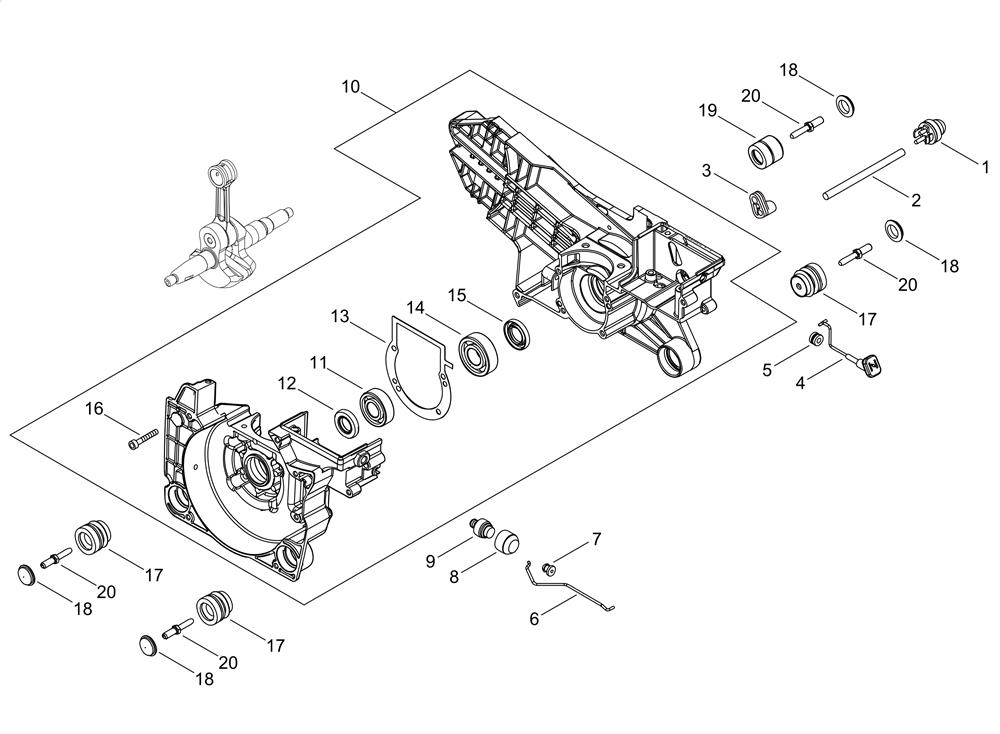

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0016685139PRIMING PUMP COMP£9.91 Add to
002EC-V470-001650PIPE£13.18 Add to
004EC-A240-000181ROD , CHOKE£6.45 Add to
005EC-V130-000160GROMMET , CHOKE£4.32 Add to
006EC-C454-000530ROD , THROTTLE£4.32 Add to
007EC-V133-000040GROMMET£13.36 Add to
008EC-V494-000330CAP£13.36 Add to
009EC-A440-001670SWITCH£15.18 Add to
010EC-P021-052660CRANKCASE SET£223.40 Add to
011EC-900810-36202BEARING£10.72 Add to
012EC-V508-000080OIL SEAL£12.75 Add to
013EC-V102-000280CRANKCASE GASKET£3.00 Add to
014EC-94000-36203BEARING£14.51 Add to
015EC-V510-000030OIL SEAL£11.04 Add to
017EC-V401-000350CUSHION 27£10.44 Add to
018EC-V421-000050PLUG 27£2.09 Add to
019EC-V401-000430CUSHION 26£10.00 Add to
020EC-V203-001650STOPPER BOLT£6.15 Add to
