CUTTING BLADE

Parts list

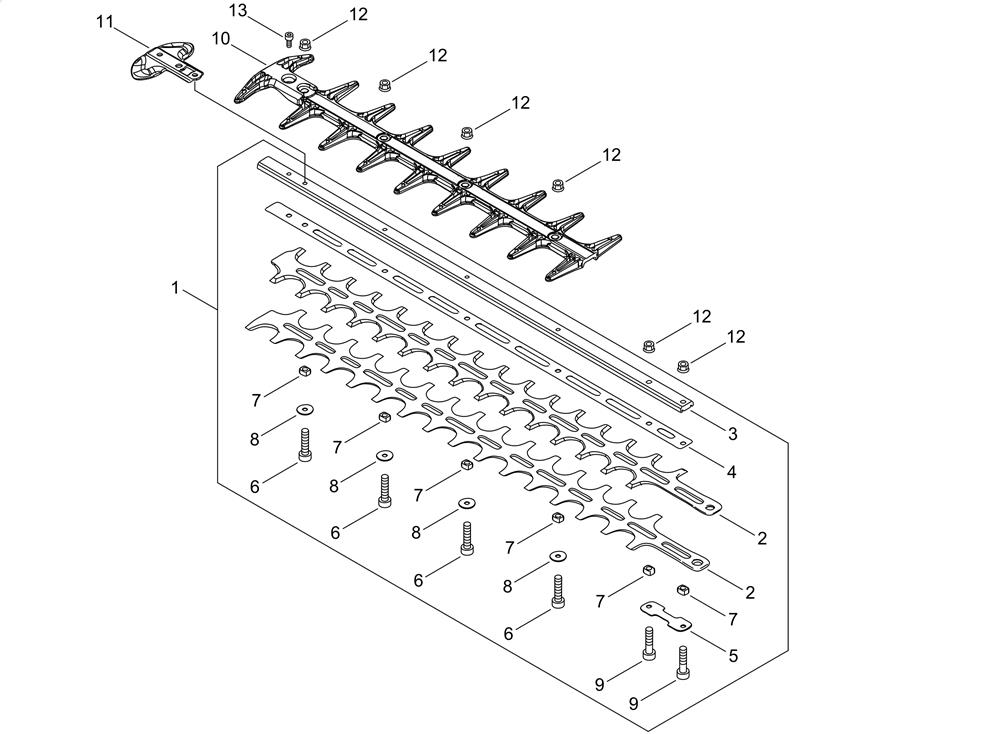

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
000EA-Y50001COMPLETE HEAD ASSY£420.00 Add to
001EC-X041-000630CUTTER ASM£135.66 Add to
002EC-X411-001360CUTTER X 1£63.26 Add to
003EC-X425-001030GUIDE BAR£42.20 Add to
006EC-V805-000170BOLT, TORX 5£2.66 Add to
007EC-V353-000250COLLAR£5.53 Add to
008EC-V303-000290WASHER£1.75 Add to
009EC-V805-000180BOLT , TORX 5£2.16 Add to
010EC-X431-000250PROTECTOR£13.79 Add to
011EC-E278-000311PROTECTOR£15.78 Add to
012EC-92108-05000NUT, FLANGE£2.86 Add to
013EC-V805-000120BOLT, TORX 5£2.66 Add to
