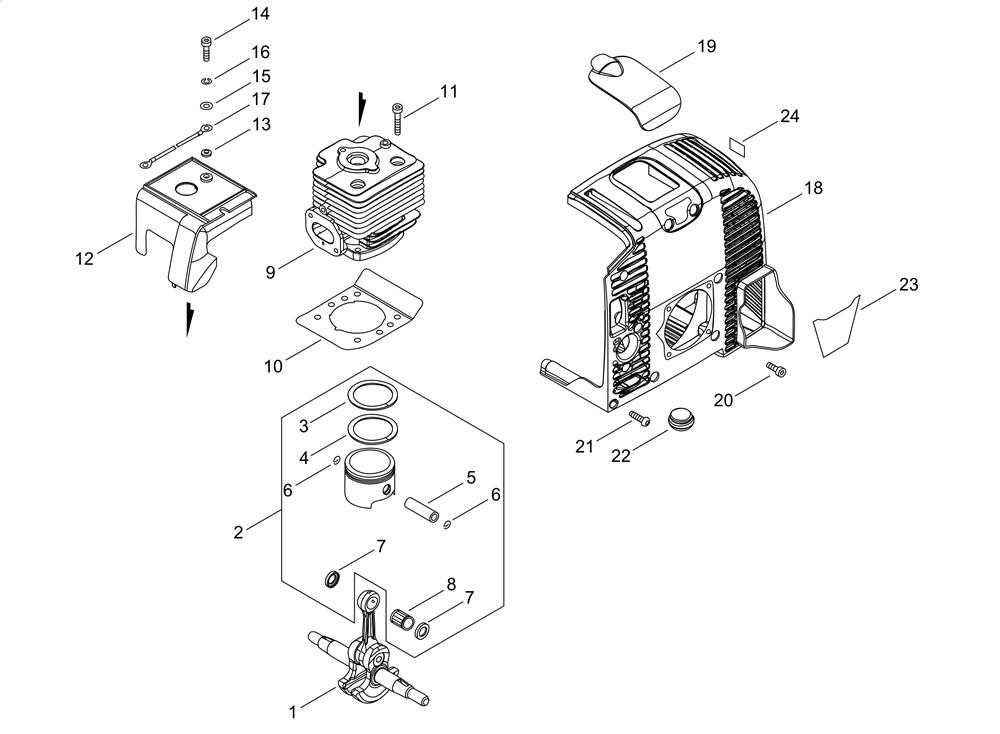

CYLINDER, PISTON, CRANKSHAFT

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002EC-P021-002984PISTON KIT£72.12 Add to
003EC-A101-000030RING , PISTON£12.75 Add to
004EC-A101-000020RING , PISTON£11.04 Add to
006EC-100015-00120CIRCLIP , PISTON PIN£1.97 Add to
008EC-V555-000010BEARING , NEEDLE 10£13.36 Add to
009EC-A130-001050CYLINDER£128.33 Add to
010EC-V100-000290GASKET , CYL£5.24 Add to
011EC-V805-000220BOLT, TORX 5£2.66 Add to
015EC-900600-00005WASHER 5£1.47 Add to
016EC-900605-00005WASHER , SPRING£1.61 Add to
018EC-A190-000852COVER , ENGINE£48.61 Add to
019EC-A429-000060COVER , CAP£7.33 Add to
021EC-V805-000010BOLT, TORX 5£2.17 Add to
022EC-V420-000910CUSHION£4.01 Add to
