CYLINDER, PISTON, CRANKSHAFT

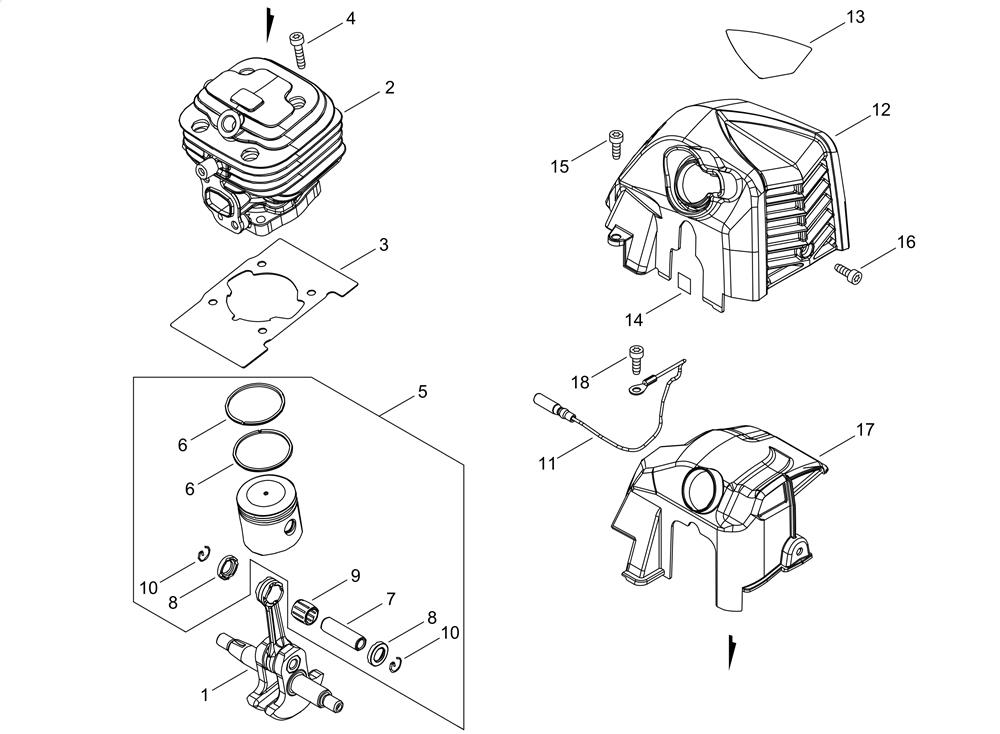

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	EC-A011-001540	CRANKSHAFT , ASY	£122.71	Add to
002	EC-A130-002350	CYLINDER	£128.49	Add to
003	EC-V100-000870	GASKET , CYL	£5.72	Add to
004	EC-V805-000210	BOLT, TORX 5	£2.66	Add to
005	EC-P100-005250	PISTON KIT	£59.91	Add to
006	EC-A101-000740	PISTON RING	£7.67	Add to
007	EC-100013-27430	PIN , PISTON	£6.77	Add to
008	EC-100014-53630	SPACER , PISTON PIN	£5.24	Add to
009	EC-100012-16131	BEARING , NEEDLE	£13.36	Add to
010	EC-100015-03931	CIRCLIP , PISTON PIN	£1.97	Add to
014	EC-X524-001901	LABEL	£3.35	Add to
015	EC-V805-000140	BOLT , TORX 5	£2.66	Add to
016	EC-V835-000010	BOLT , TORX 5	£2.66	Add to
018	EC-V805-000140	BOLT , TORX 5	£2.66	Add to
