CYLINDER, PISTON, CRANKSHAFT

Parts list

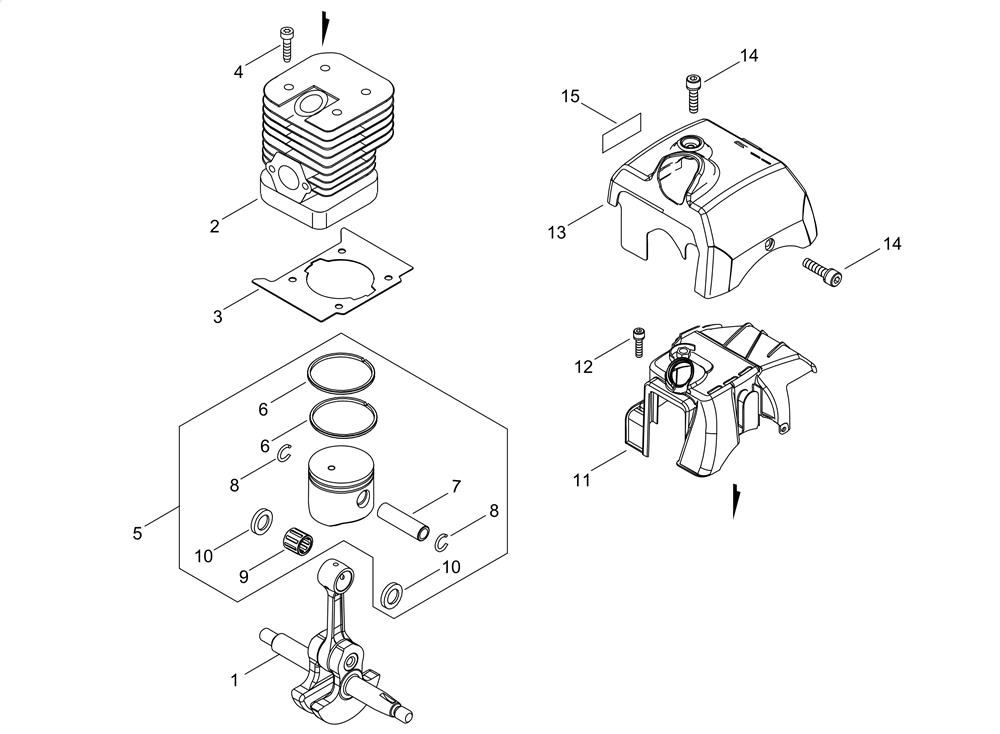

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001EC-A011-001230CRANKSHAFT ASY£138.24 Add to
002EC-A130-002070CYLINDER£146.41 Add to
003EC-V100-000760GASKET , CYL£5.53 Add to
004EC-V805-000210BOLT, TORX 5£2.66 Add to
005EC-P021-041390PISTON KIT£44.02 Add to
006EC-A101-000160RING , PISTON£7.85 Add to
007EC-V608-000000PIN , ENG 10£6.77 Add to
008EC-V580-000010RING , END£1.97 Add to
009EC-100012-19830BEARING , NEEDLE£13.36 Add to
010EC-100014-17330SPACER , PISTON PIN£7.37 Add to
011EC-A160-002620COVER , CYLINDER£13.05 Add to
012EC-V835-000000BOLT, TORX 5£2.66 Add to
013EC-A160-002632COVER , CYLINDER£10.72 Add to
014EC-V835-000000BOLT, TORX 5£2.66 Add to
