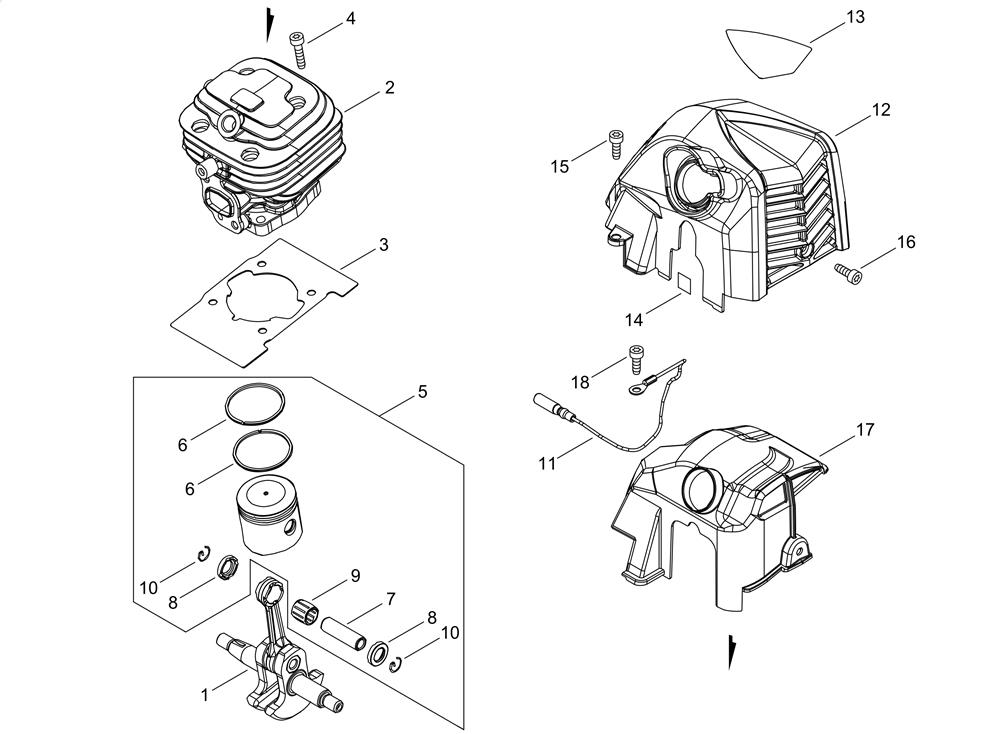

CYLINDER, PISTON, CRANKSHAFT

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001EC-A011-001540CRANKSHAFT , ASY£122.71 Add to
002EC-A130-002350CYLINDER£128.49 Add to
003EC-V100-000870GASKET , CYL£5.72 Add to
004EC-V805-000210BOLT, TORX 5£2.66 Add to
005EC-P100-005250PISTON KIT£59.91 Add to
006EC-A101-000740PISTON RING£7.67 Add to
007EC-100013-27430PIN , PISTON£6.77 Add to
008EC-100014-53630SPACER , PISTON PIN£5.24 Add to
009EC-100012-16131BEARING , NEEDLE£13.36 Add to
010EC-100015-03931CIRCLIP , PISTON PIN£1.97 Add to
014EC-X524-001901LABEL£3.35 Add to
014EC-V805-000140BOLT , TORX 5£2.66 Add to
016EC-V835-000010BOLT , TORX 5£2.66 Add to
018EC-V805-000140BOLT , TORX 5£2.66 Add to
