CYLINDER, PISTON, CRANKSHAFT

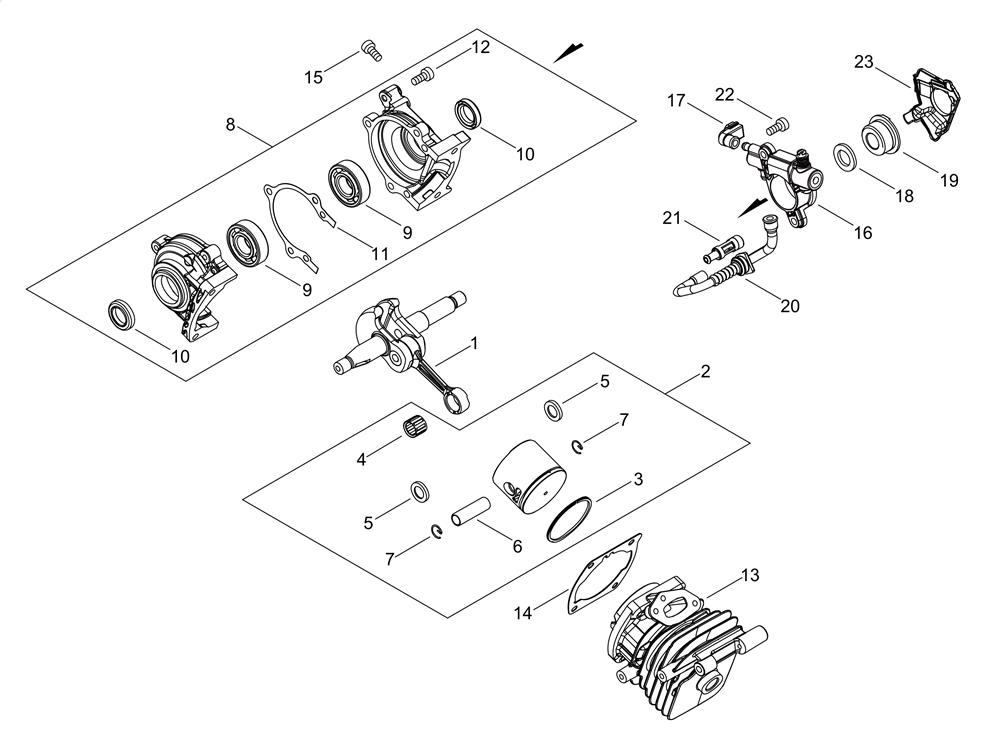

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	EC-A011-001440	CRANKSHAFT , ASM	£130.67	Add to
002	EC-P021-050120	PISTON KIT	£59.64	Add to
003	EC-A101-000700	RING , PISTON	£8.89	Add to
004	EC-V553-000020	BEARING , NEEDLE 8	£13.36	Add to
005	EC-100014-55930	SPACER , PISTON PIN	£6.93	Add to
006	EC-V606-000020	PIN	£6.64	Add to
007	EC-100015-04630	CIRCLIP, PISTON PIN	£1.97	Add to
008	EC-P021-050130	CRANKCASE SET	£104.44	Add to
009	EC-900800-36001	BEARING , BALL	£8.77	Add to
010	EC-V505-000070	OIL SEAL	£6.15	Add to
011	EC-V102-000290	GASKET , CRANKCASE	£3.70	Add to
012	EC-V804-000100	BOLT	£1.82	Add to
013	EC-P021-051920	CYLINDER	£125.62	Add to
014	EC-V100-000830	GASKET , CYL	£3.90	Add to
015	EC-V804-000100	BOLT	£1.82	Add to
016	EC-C022-000211	AUTO-OILER ASSEMBLEY	£62.34	Add to
017	EC-V470-002171	PIPE	£3.35	Add to
018	EC-V308-000030	WASHER	£3.71	Add to
019	EC-V652-000230	GEAR , WORM	£9.80	Add to
020	EC-V470-002200	PIPE	£8.16	Add to
021	EC-P021-050140	STAINER , OIL ASY	£11.96	Add to
022	EC-V804-000050	BOLT, TORX 4	£2.17	Add to
023	EC-C236-000150	COVER , OILER	£5.53	Add to
