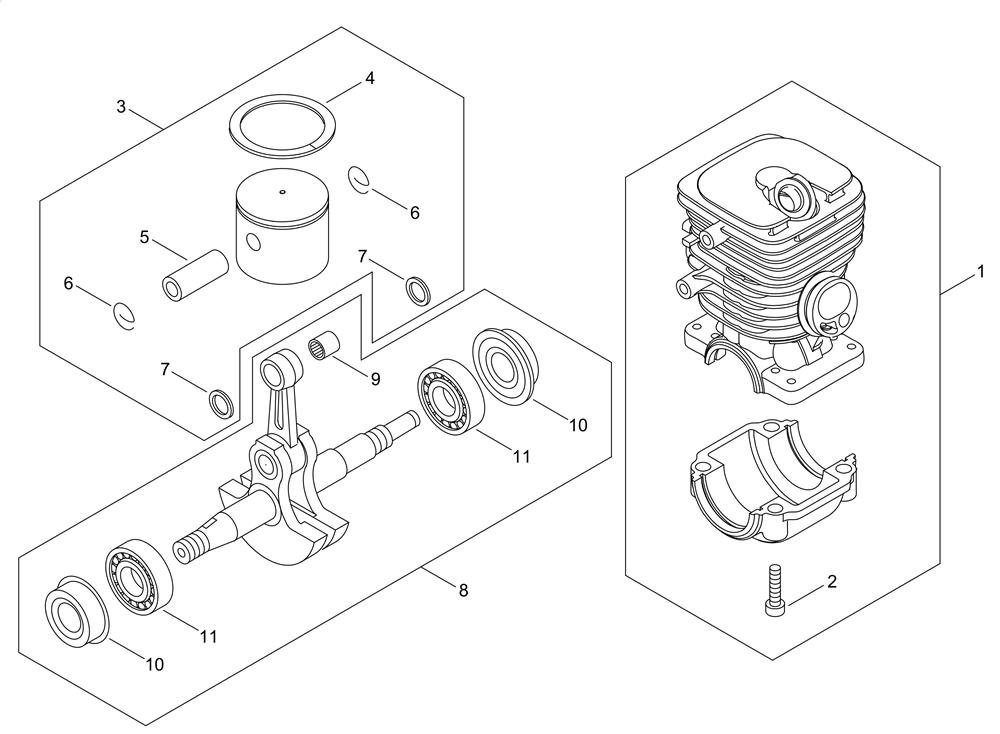

CYLINDER, PISTON, CRANKSHAFT

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	EC-P021-015050	CRANK CASE KIT	£116.66	Add to
002	EC-V805-000220	BOLT, TORX 5	£2.66	Add to
003	EC-P021-015061	PISTON KIT	£58.68	Add to
004	EC-100011-16131	RING , PISTON	£10.91	Add to
006	EC-100015-04630	CIRCLIP, PISTON PIN	£1.97	Add to
007	EC-100014-11520	SPACER, PISTON PIN	£5.24	Add to
009	EC-V553-000060	BEARING , NEEDLE 8	£12.75	Add to
010	EC-V505-000011	OIL SEAL 12	£7.84	Add to
011	EC-94035-36201	BEARING BALL	£7.98	Add to
