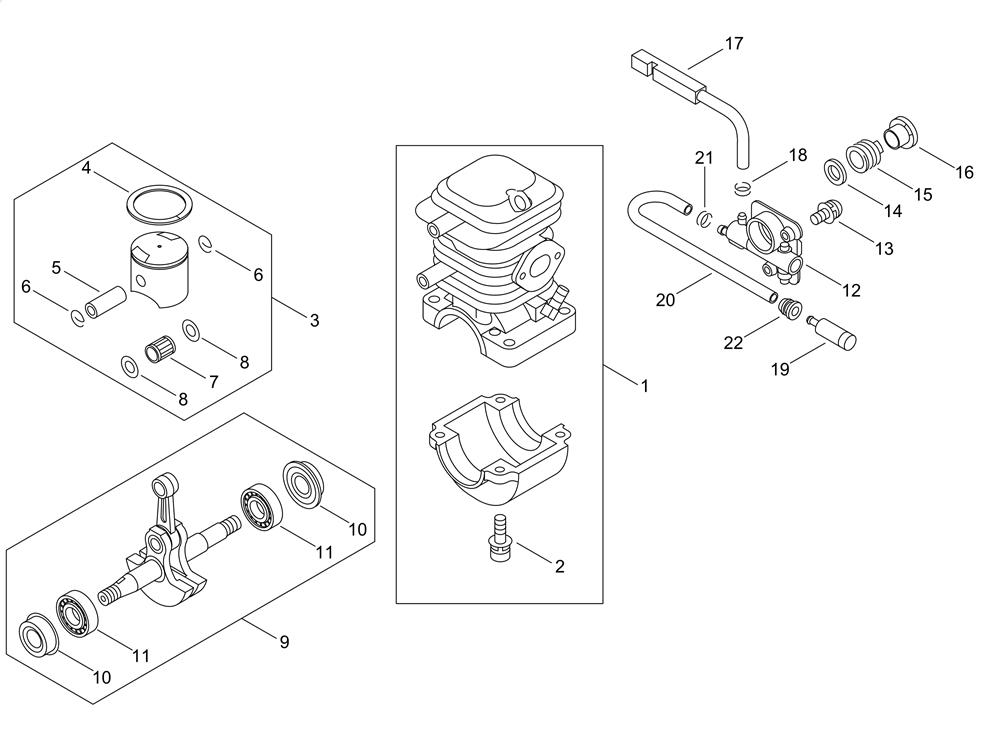

CYLINDER, PISTON, CRANKSHAFT

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	EC-P021-017360	CRANKCASE SET	£120.41	Add to
002	EC-900162-05022	BOLT HSH	£2.31	Add to
003	EC-P021-036520	PISTON KIT	£59.60	Add to
004	EC-A101-000160	RING , PISTON	£7.85	Add to
006	EC-100015-03931	CIRCLIP , PISTON PIN	£1.97	Add to
007	EC-100012-16131	BEARING , NEEDLE	£13.36	Add to
008	EC-100014-53630	SPACER , PISTON PIN	£5.24	Add to
010	EC-V505-000011	OIL SEAL 12	£7.84	Add to
011	EC-900888-36201	BEARING , BALL	£6.32	Add to
012	EC-C022-000020	AUTO-OILER ASSEMBLEY	£55.93	Add to
013	EC-900238-04012	SCREW	£1.47	Add to
014	EC-V308-000030	WASHER	£3.71	Add to
015	EC-V652-000030	GEAR , WORM	£12.14	Add to
016	EC-V356-000390	COLLAR , 10	£3.92	Add to
017	EC-437210-39932	PIPE	£12.75	Add to
018	EC-V490-001230	CLIP	£1.82	Add to
019	EC-436205-02832	STRAINER , OIL	£8.89	Add to
020	EC-437210-35431	PIPE , OIL	£4.92	Add to
021	EC-V490-001230	CLIP	£1.82	Add to
022	EC-132115-12330	GROMMET	£2.66	Add to
