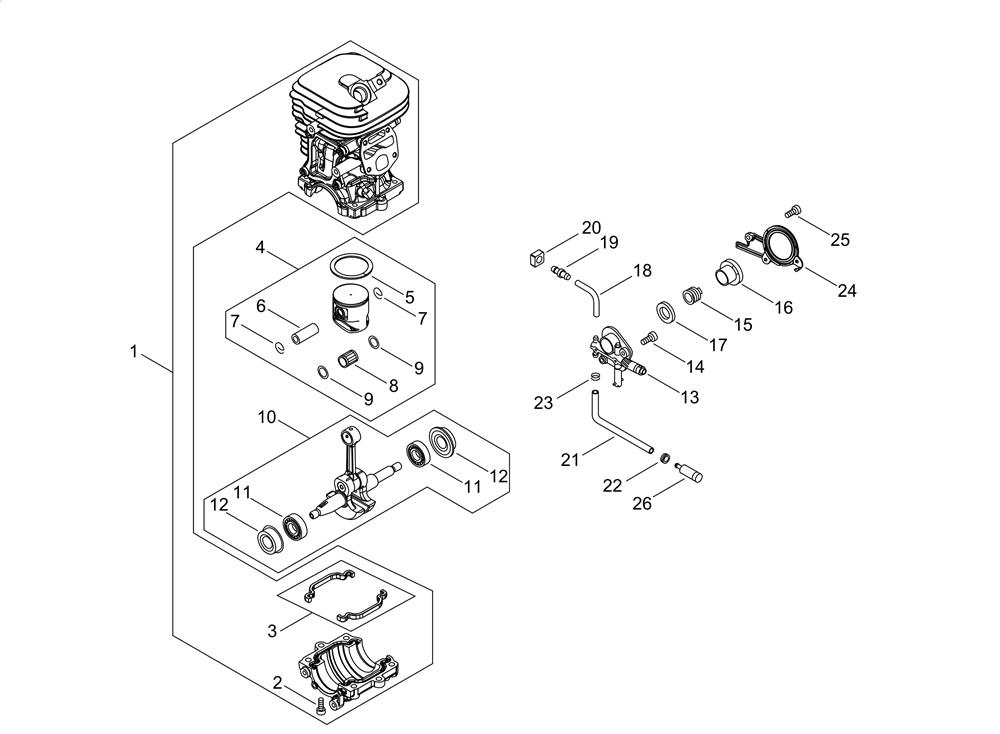

CYLINDER, PISTON, CRANKSHAFT

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	EC-P100-004570	CRANKCASE ASY	£165.62	Add to
002	EC-V805-000250	BOLT , TORX 5	£2.66	Add to
004	EC-P100-004580	PISTON SET	£62.08	Add to
005	EC-A101-000710	PISTON RING	£10.12	Add to
007	EC-V580-000010	RING , END	£1.97	Add to
008	EC-V555-000140	BEARING , NEEDLE	£10.12	Add to
009	EC-100014-17330	SPACER , PISTON PIN	£7.37	Add to
010	EC-P100-004590	CRANKSHAFT ASY	£138.24	Add to
011	EC-900810-36202	BEARING	£10.72	Add to
012	EC-V508-000110	OIL SEAL	£6.76	Add to
013	EC-C022-000010	OILER , ASM AUTO	£55.93	Add to
014	EC-V805-000140	BOLT , TORX 5	£2.66	Add to
015	EC-V652-000030	GEAR , WORM	£12.14	Add to
016	EC-V356-000390	COLLAR , 10	£3.92	Add to
017	EC-V308-000030	WASHER	£3.71	Add to
019	EC-V187-000010	NIPPLE	£2.52	Add to
021	EC-V471-005201	PIPE	£5.10	Add to
022	EC-132115-01462	GROMMET	£2.52	Add to
023	EC-V490-001230	CLIP	£1.82	Add to
024	EC-C236-000160	COVER , OILER	£3.00	Add to
025	EC-V804-000000	BOLT TORX 4	£2.16	Add to
026	EC-436205-02832	STRAINER , OIL	£8.89	Add to
