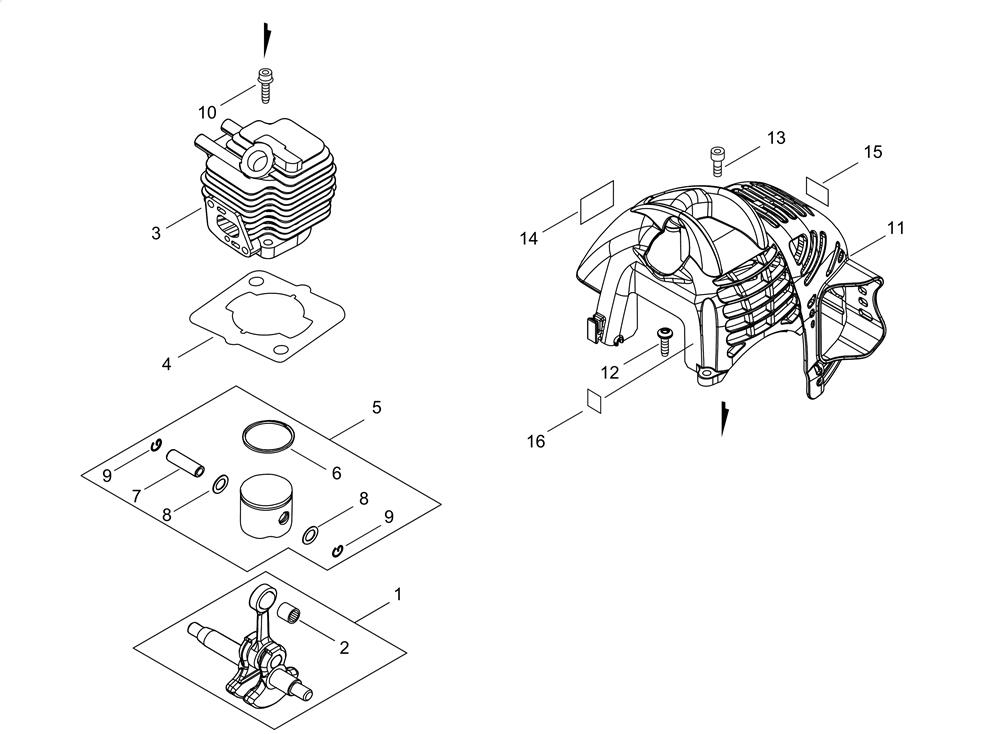

CYLINDER, PISTON, CRANKSHAFT

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	EC-A011-001410	CRANKSHAFT , ASY	£131.04	Add to
002	EC-V553-000060	BEARING , NEEDLE 8	£12.75	Add to
003	EC-A130-002100	CYLINDER	£118.98	Add to
004	EC-101010-44332	GASKET , CYL . BASE	£3.57	Add to
005	EC-P021-007712	PISTON KIT	£58.44	Add to
006	EC-A101-000090	RING, PISTON	£11.04	Add to
007	EC-100013-11520	PIN , PISTON	£6.76	Add to
008	EC-100014-11520	SPACER, PISTON PIN	£5.24	Add to
009	EC-100015-04630	CIRCLIP, PISTON PIN	£1.97	Add to
010	EC-900162-05022	BOLT HSH	£2.31	Add to
011	EC-A160-001091	ENGINE COVER	£16.65	Add to
012	EC-V805-000000	BOLT, TORX 5	£2.17	Add to
013	EC-V805-000150	BOLT, TORX 5	£2.66	Add to
015	EC-X505-007710	LABEL , CAUTION	£3.35	Add to
016	EC-X524-001901	LABEL	£3.35	Add to
