ENGINE COVER

Parts list

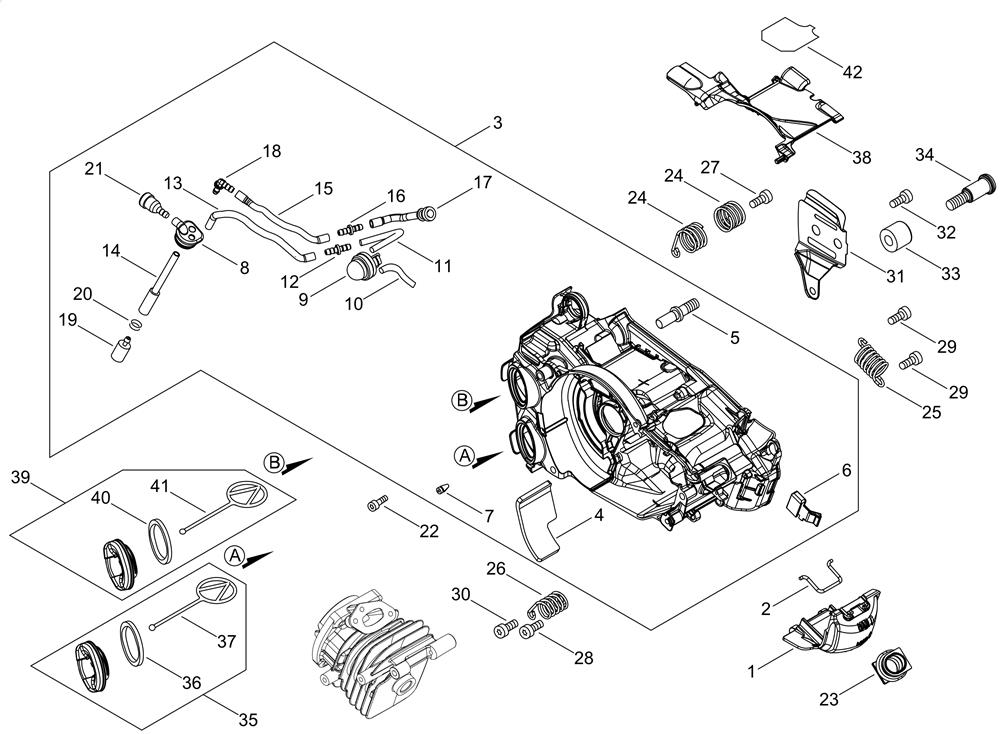

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001EC-A429-000200COVER , CAP£5.10 Add to
002EC-C649-000440HOOK£3.70 Add to
003EC-P100-004937ENGINE COVER£89.50 Add to
004EC-V341-000201WASHER , SQUARE£3.71 Add to
005EC-V225-000263BOLT£4.89 Add to
006EC-A219-000071SHUTTER , AIR£3.00 Add to
007EC-436114-13930VALVE , CHECK£7.85 Add to
008EC-V137-000140GROMMETT , FUEL£6.77 Add to
0096685139PRIMING PUMP COMP£9.91 Add to
010EC-V470-002181PIPE£6.15 Add to
011EC-V471-004871PIPE£2.17 Add to
013EC-V471-003661PIPE£2.66 Add to
014EC-V470-002210PIPE£3.70 Add to
015EC-V471-003821PIPE£4.32 Add to
016EC-V186-000510JOINT , PIPE£2.52 Add to
017EC-V470-002191PIPE£3.35 Add to
018EC-V186-000530JOINT , PIPE£2.52 Add to
019EC-A369-000420STRAINER , FUEL£9.69 Add to
020EC-V490-000500CLIP£1.47 Add to
021EC-131300-56431VENT ASSEMBLEY , FUEL£7.56 Add to
022EC-V804-000100BOLT£1.82 Add to
023EC-A239-000110PIPE , INTAKE£3.00 Add to
024EC-V450-002050SPRING , COMPRESSION£3.89 Add to
025EC-V450-002060SPRING , COMPRESSION£5.85 Add to
026EC-V450-002070SPRING , COMPRESSION£4.33 Add to
027EC-V804-000000BOLT TORX 4£2.16 Add to
028EC-V804-000000BOLT TORX 4£2.16 Add to
029EC-V804-000000BOLT TORX 4£2.16 Add to
030EC-V804-000010BOTL, TORX 4£2.17 Add to
031EC-C305-000511PLATE , SPROCKET GUARD£4.32 Add to
032EC-V203-002280BOLT£2.16 Add to
033EC-C310-000140CATCHER , CHAIN£3.92 Add to
034EC-V203-002260BOLT£2.16 Add to
035EC-A033-000390CAP , OIL£12.44 Add to
036EC-V107-000180GASKET , FUEL CAP£3.57 Add to
037EC-A365-000050CONNECTOR, CAP£3.21 Add to
038EC-A127-000450COVER , DUST£3.70 Add to
039EC-A033-000410CAP , FUEL£12.43 Add to
040EC-V107-000180GASKET , FUEL CAP£3.57 Add to
041EC-A365-000050CONNECTOR, CAP£3.21 Add to
042EC-X505-010230LABEL , CAUTION£3.90 Add to
