GEAR CASE

Parts list

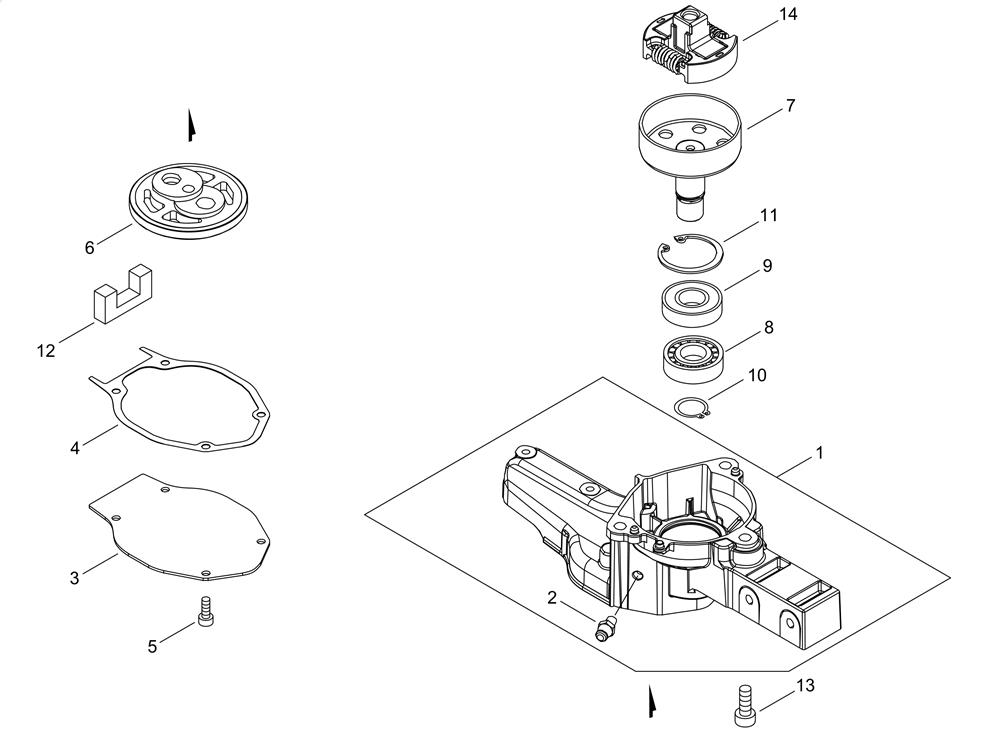

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001EC-P100-006070GEARCASE£46.77 Add to
004EC-V110-000230GASKET, GEAR CASE£2.31 Add to
005EC-V804-000050BOLT, TORX 4£2.17 Add to
006EC-V650-000740GEAR, SPUR£34.25 Add to
007EC-A556-001840DRUM, CLUTCH£48.61 Add to
009EC-900802-06002BEARING, BALL 6002£11.52 Add to
010EC-900701-00014CIRCLIP 14£1.61 Add to
011EC-900702-00032RETAINING RING£2.66 Add to
012EC-V541-000750SEAL£3.92 Add to
013EC-V806-000130BOLT, TORX 6£2.66 Add to
014EC-A056-000790CLUTCH ASSY£31.82 Add to
