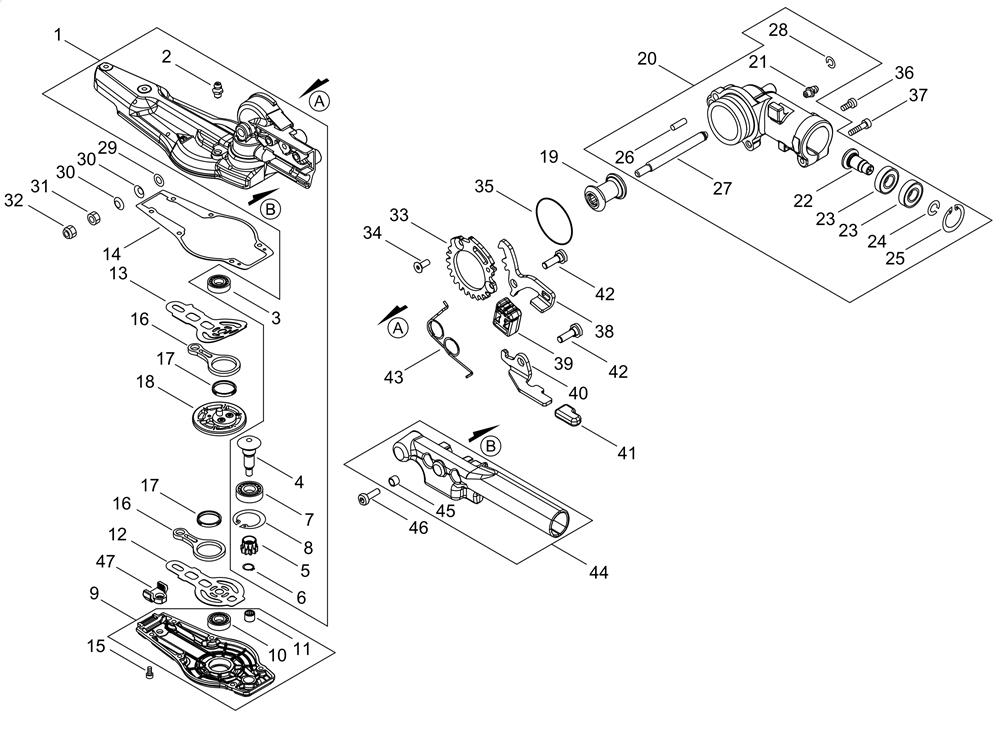

GEAR CASE

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001EC-P100-003621GEAR CASE ASY£234.07 Add to
002EC-V187-000080GREASE NIPPLE£2.30 Add to
003EC-900800-00608BEARING£7.56 Add to
004EC-V655-000110SHAFT , PINION£37.92 Add to
005EC-V650-000730GEAR , SPUR£12.75 Add to
007EC-900800-06001BEARING , BALL£8.77 Add to
008EC-900702-00028CIRCLIP£2.17 Add to
010EC-900800-00608BEARING£7.56 Add to
011EC-V551-000000BEARING , NEEDLE 6£6.32 Add to
012EC-V150-004310PLATE , EYE£4.49 Add to
013EC-V150-004320PLATE , EYE£4.92 Add to
014EC-V110-000200GASKET , GEAR CASE£3.35 Add to
015EC-V804-000050BOLT, TORX 4£2.17 Add to
016EC-C532-000530ROD , CONNECTING£25.88 Add to
017EC-V572-000000BEARING , NEEDLE£13.47 Add to
018EC-V060-000130GEAR , SPUR£100.53 Add to
019EC-P100-003640GEAR£39.75 Add to
020EC-P100-005381CASE , GEAR ASY£123.44 Add to
021EC-V187-000080GREASE NIPPLE£2.30 Add to
022EC-V651-001100GEAR£33.34 Add to
023EC-900857-06901BEARING , BALL£29.55 Add to
024EC-900706-00012RETAINING RING£2.16 Add to
025EC-900702-00024RETAINING RING£2.16 Add to
027EC-C534-001101SHAFT , GEAR£28.75 Add to
028EC-92411-08000RETAINING RING£2.16 Add to
029EC-900603-00006WASHER£1.47 Add to
030EC-V347-000030CONE WASHER£1.81 Add to
031EC-900502-00006NUT 6 (3N)£1.47 Add to
032EC-900560-00006NUT , LOCK£2.42 Add to
033EC-C465-000040RESETTER , LATCH£31.69 Add to
034EC-900175-05012BOLT , H.S.H£1.96 Add to
035EC-900724-00035O-RING£2.91 Add to
036EC-V805-000130BOLT£2.66 Add to
037EC-V805-000170BOLT, TORX 5£2.66 Add to
038EC-C661-000210LEVER£10.72 Add to
039EC-V494-001070CAP£4.32 Add to
040EC-C661-000220LEVER , RELEASE£10.72 Add to
041EC-V494-000891CAP£5.85 Add to
042EC-V204-000580PIN , RATCHET£3.71 Add to
043EC-V452-001740SPRING£4.32 Add to
044EC-C403-000880GRIP , HANDLE£29.66 Add to
045EC-131045-28230COLLAR£3.35 Add to
046EC-V805-000150BOLT, TORX 5£2.66 Add to
047EC-V541-000620SEAL£3.92 Add to
