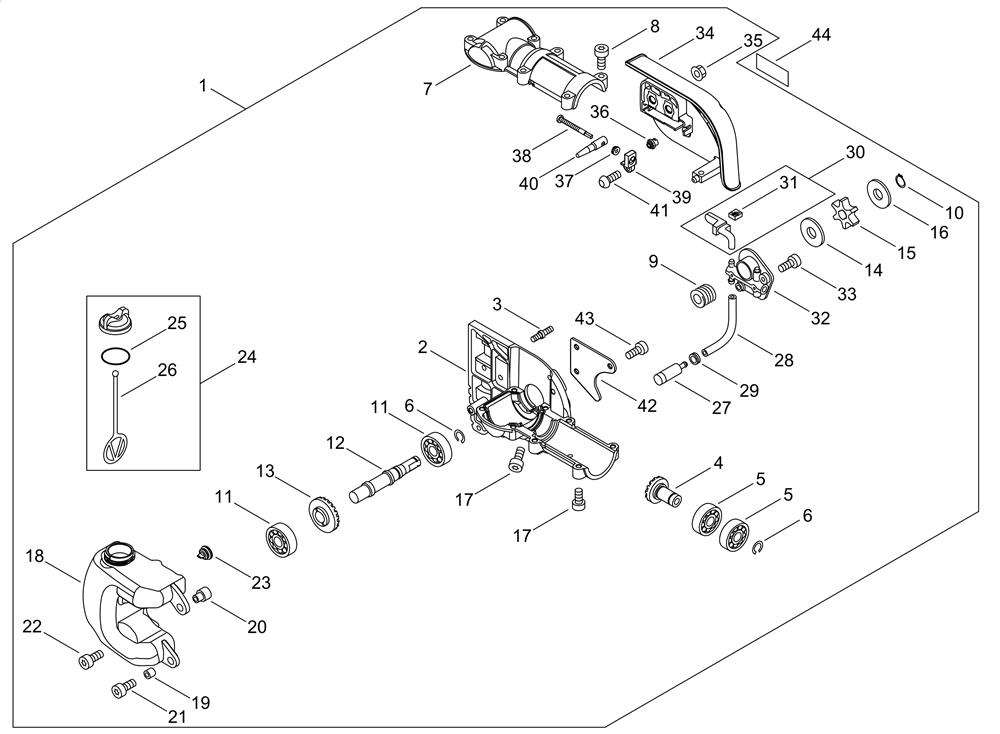

GEAR CASE

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002EC-C531-000460CASE , GEAR£82.72 Add to
003EC-V224-000040BOLT , STUD 6£3.35 Add to
006EC-900706-00012RETAINING RING£2.16 Add to
007EC-C531-000010CASE , GEAR£111.01 Add to
008EC-V805-000170BOLT, TORX 5£2.66 Add to
009EC-437063-38330GEAR , WORM£10.31 Add to
010EC-V583-000090RING£2.16 Add to
012EC-C534-000430SHAFT , GEAR£29.05 Add to
013EC-V651-001190GEAR BEVEL£30.90 Add to
014EC-175014-39131WASHER , CLUTCH£3.92 Add to
015EC-C580-000070SPROCKET , DRIVE£8.27 Add to
016EC-V307-000160WASHER , CIRCULAR 10£2.86 Add to
017EC-V805-000130BOLT£2.66 Add to
018EC-C200-000081TANK , OIL£21.72 Add to
019EC-131045-28230COLLAR£3.35 Add to
020EC-V354-000010COLLAR ,6£11.22 Add to
021EC-V805-000160BOLT, TORX 5£2.66 Add to
022EC-V805-000170BOLT, TORX 5£2.66 Add to
023EC-131314-06320VALVE , CHECK£8.17 Add to
024EC-P021-005591CAP ASY£8.77 Add to
025EC-900720-00018O-RING 18£2.16 Add to
026EC-A365-000050CONNECTOR, CAP£3.21 Add to
027EC-436205-02832STRAINER , OIL£8.89 Add to
028EC-130110-12331PIPE£5.24 Add to
029EC-132115-01462GROMMET£2.52 Add to
030EC-P100-003331OIL PIPE£4.92 Add to
032EC-C022-000010OILER , ASM AUTO£55.93 Add to
033EC-V805-000130BOLT£2.66 Add to
034EC-C300-000921GUARD , SPROCKET£45.55 Add to
035EC-433019-03933NUT , FLANGE 6£3.21 Add to
036EC-V651-000320GEAR , BEVEL£4.20 Add to
037EC-V651-000310GEAR , BEVEL£3.71 Add to
038EC-V203-000041BOLT , 5£7.06 Add to
039EC-V355-000140COLLAR , 8£2.66 Add to
040EC-C309-000030TENSIONER , CHAIN£6.15 Add to
041EC-V252-000040SCREW , 4£3.71 Add to
042EC-C649-000140HOOK£3.92 Add to
043EC-V805-000130BOLT£2.66 Add to
