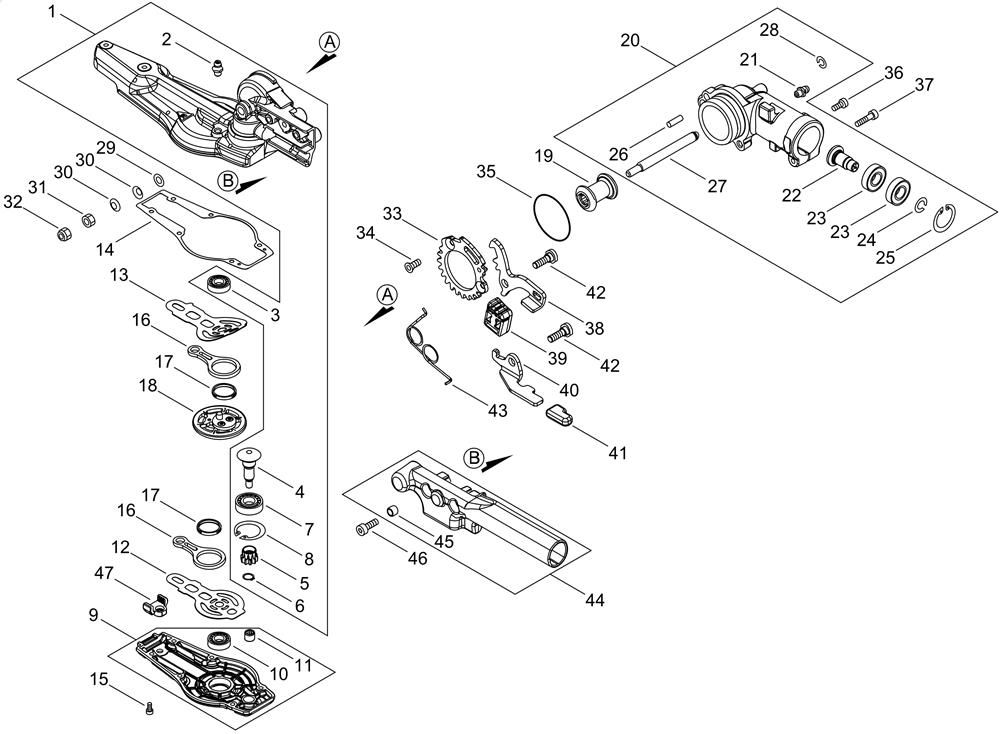

GEAR CASE

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	EC-P100-003621	GEAR CASE ASY	£234.07	Add to
002	EC-V187-000080	GREASE NIPPLE	£2.30	Add to
003	EC-900800-00608	BEARING	£7.56	Add to
004	EC-V655-000110	SHAFT , PINION	£37.92	Add to
005	EC-V650-000730	GEAR , SPUR	£12.75	Add to
006	EC-900701-00008	RETAINING RING	£1.47	Add to
007	EC-900800-06001	BEARING , BALL	£8.77	Add to
008	EC-900702-00028	CIRCLIP	£2.17	Add to
009	EC-P100-003631	LID ASY , GEARCASE	£31.82	Add to
010	EC-900800-00608	BEARING	£7.56	Add to
011	EC-V551-000000	BEARING , NEEDLE 6	£6.32	Add to
012	EC-V150-004310	PLATE , EYE	£4.49	Add to
013	EC-V150-004320	PLATE , EYE	£4.92	Add to
014	EC-V110-000200	GASKET , GEAR CASE	£3.35	Add to
015	EC-V804-000050	BOLT, TORX 4	£2.17	Add to
016	EC-C532-000530	ROD , CONNECTING	£25.88	Add to
017	EC-V572-000000	BEARING , NEEDLE	£13.47	Add to
018	EC-V060-000130	GEAR , SPUR	£100.53	Add to
019	EC-P100-003640	GEAR	£39.75	Add to
020	EC-P100-005381	CASE , GEAR ASY	£123.44	Add to
021	EC-V187-000080	GREASE NIPPLE	£2.30	Add to
022	EC-V651-001100	GEAR	£33.34	Add to
023	EC-900857-06901	BEARING , BALL	£29.55	Add to
024	EC-900706-00012	RETAINING RING	£2.16	Add to
025	EC-900702-00024	RETAINING RING	£2.16	Add to
027	EC-C534-001101	SHAFT , GEAR	£28.75	Add to
028	EC-92411-08000	RETAINING RING	£2.16	Add to
029	EC-900603-00006	WASHER	£1.47	Add to
030	EC-V347-000030	CONE WASHER	£1.81	Add to
031	EC-900502-00006	NUT 6 (3N)	£1.47	Add to
032	EC-900560-00006	NUT , LOCK	£2.42	Add to
033	EC-C465-000040	RESETTER , LATCH	£31.69	Add to
034	EC-900175-05012	BOLT , H.S.H	£1.96	Add to
035	EC-900724-00035	O-RING	£2.91	Add to
036	EC-V805-000130	BOLT	£2.66	Add to
037	EC-V805-000170	BOLT, TORX 5	£2.66	Add to
038	EC-C661-000210	LEVER	£10.72	Add to
039	EC-V494-001070	CAP	£4.32	Add to
040	EC-C661-000220	LEVER , RELEASE	£10.72	Add to
041	EC-V494-000891	CAP	£5.85	Add to
042	EC-V204-000580	PIN , RATCHET	£3.71	Add to
043	EC-V452-001740	SPRING	£4.32	Add to
044	EC-C403-000880	GRIP , HANDLE	£29.66	Add to
045	EC-131045-28230	COLLAR	£3.35	Add to
046	EC-V805-000150	BOLT, TORX 5	£2.66	Add to
047	EC-V541-000620	SEAL	£3.92	Add to
