GEAR CASE, SHIELD

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

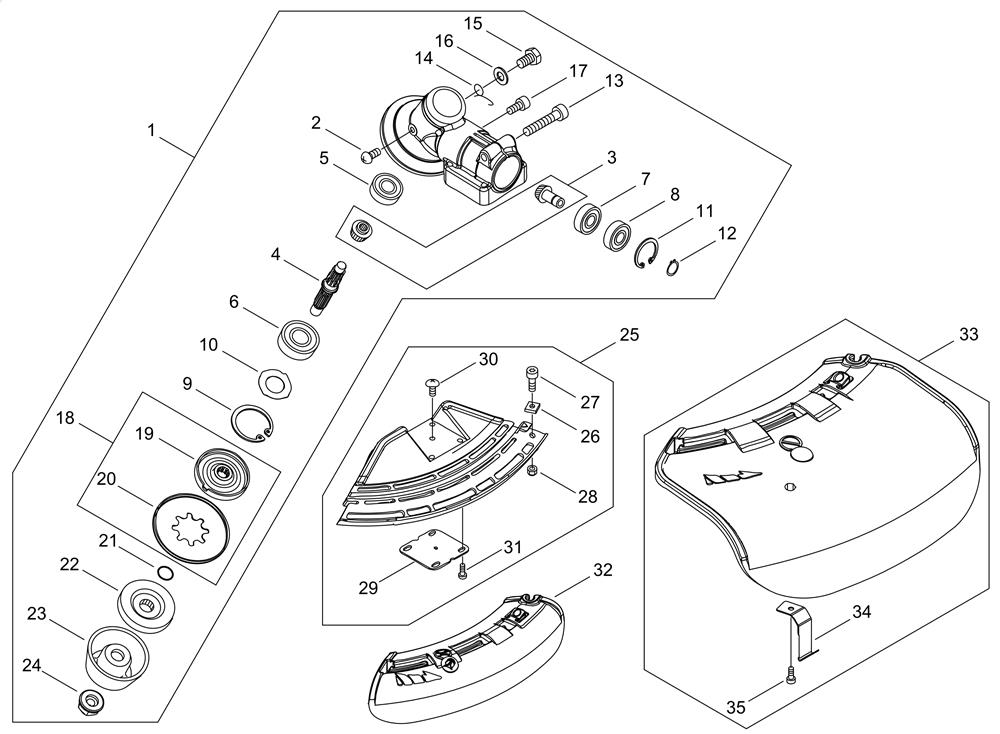

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	EC-P021-041342	CASE , GEAR	£137.60	Add to
002	EC-900220-04006	SCREW	£1.47	Add to
003	EC-610300-56930	GEAR SET	£64.51	Add to
004	EC-610310-56933	SHAFT , PTO	£42.99	Add to
005	EC-900810-00629	BEARING BALL	£14.88	Add to
006	EC-900812-06201	BEARING , BALL	£10.00	Add to
007	EC-900800-06001	BEARING , BALL	£8.77	Add to
008	EC-900803-06001	BEARING , BALL	£8.77	Add to
009	EC-900702-00032	RETAINING RING	£2.66	Add to
010	EC-610444-56830	WASHER	£3.00	Add to
011	EC-900702-00028	CIRCLIP	£2.17	Add to
012	EC-900701-00012	CIRCLIP	£1.61	Add to
014	EC-V452-001310	SPRING , TORSION	£7.25	Add to
015	EC-610434-50031	BOLT	£4.32	Add to
016	EC-900603-50008	WASHER	£1.47	Add to
017	EC-V805-000130	BOLT	£2.66	Add to
018	EC-P100-009780	FIXTURE , BLADE SET	£25.70	Add to
019	EC-C535-000011	FIXTURE , BLADE	£22.64	Add to
020	EC-610352-56830	PLATE CUP	£8.16	Add to
021	EC-900720-00012	O-RING	£2.17	Add to
022	EC-610314-52130	PLATE , ADAPTER (L)	£16.53	Add to
023	EC-699229-56830	PLATE , COVER	£8.90	Add to
024	EC-610320-52130	NUT 10	£4.32	Add to
025	EC-P021-050810	SHIELD BLADE ASY	£28.75	Add to
026	EC-900565-00005	NUT	£1.47	Add to
027	EC-V805-000170	BOLT, TORX 5	£2.66	Add to
028	EC-900562-00005	NUT , LOCK	£2.52	Add to
029	EC-C552-000200	PLATE , SHIELD	£4.32	Add to
030	EC-91316-04010	SCREW	£1.47	Add to
031	EC-V805-000260	BOLT , TORX 5	£2.66	Add to
032	EC-C550-000551	SHIELD , BLADE	£19.29	Add to
033	EC-P021-041320	SHIELD ASY , BLADE	£39.44	Add to
034	EC-C554-000030	KNIFE , CORD	£14.57	Add to
035	EC-V805-000150	BOLT, TORX 5	£2.66	Add to
