HANDLE

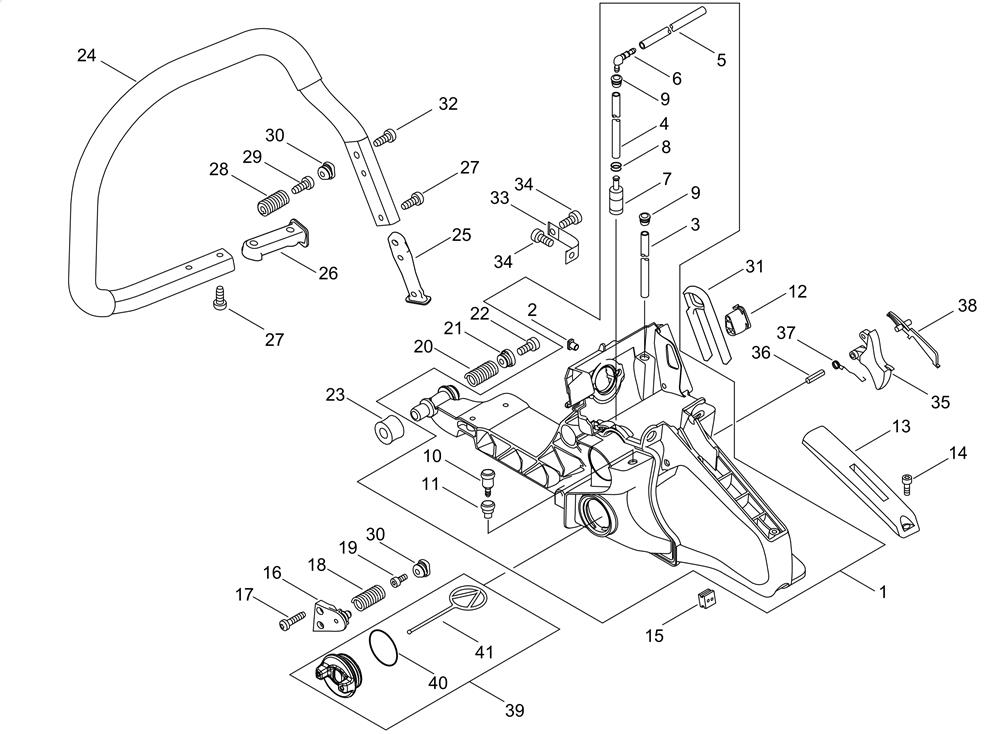

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001EC-P100-007320REAR HANDLE ASY£82.72 Add to
003EC-130110-30831PIPE£5.24 Add to
004EC-V471-000601PIPE£4.01 Add to
005EC-130110-14530PIPE , IMPULSE£5.10 Add to
006EC-V186-000500JOINT , PIPE£2.38 Add to
007EC-A369-000450STRAINER , FUEL£9.69 Add to
008EC-V490-001240CLIP£2.17 Add to
009EC-132115-01462GROMMET£2.52 Add to
010EC-131300-56431VENT ASSEMBLEY , FUEL£7.56 Add to
013EC-C411-000001LID , HANDLE£11.22 Add to
014EC-V804-000000BOLT TORX 4£2.16 Add to
017EC-V805-000010BOLT, TORX 5£2.17 Add to
018EC-V450-000760SPRING , COMPRESSION£4.49 Add to
019EC-V805-000230BOLT, TORX 5£2.16 Add to
020EC-V450-000771SPRING , COMPRESSION£5.10 Add to
021EC-V456-000101HOLDER , SPRING£3.00 Add to
023EC-V404-000210CUSHION , 10£5.10 Add to
024EC-C400-001171HANDLE , FRONT£66.81 Add to
026EC-C405-000570BRACKET , HANDLE£3.00 Add to
027EC-V805-000010BOLT, TORX 5£2.17 Add to
028EC-V450-000730SPRING , COMPRESSION£5.10 Add to
029EC-V805-000000BOLT, TORX 5£2.17 Add to
030EC-V456-000080HOLDER , SPRING£3.00 Add to
031EC-V456-000280HOLDER , SPRING£3.35 Add to
033EC-C617-000362STOPPER£3.92 Add to
034EC-V805-000000BOLT, TORX 5£2.17 Add to
035EC-C450-000360CONTROL , THROTTLE£7.37 Add to
036EC-900345-40025PIN , SPRING£1.60 Add to
037EC-V452-000260SPRING , TORSION£1.95 Add to
038EC-178090-37930LOCKOUT , T CONTROL£5.42 Add to
039EC-P100-004891FUEL CAP£9.81 Add to
040EC-V581-000600O-RING£2.99 Add to
041EC-A365-000050CONNECTOR, CAP£3.21 Add to
