HANDLE

Parts list

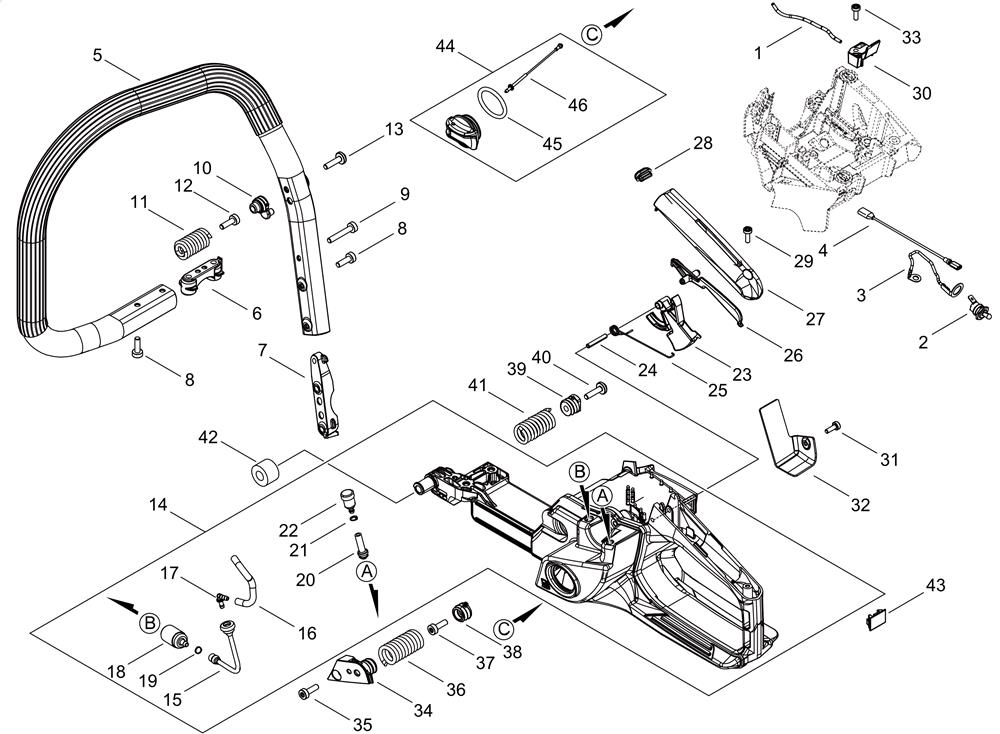

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002EC-A440-003490SWITCH£13.47 Add to
005EC-C400-001750HANDLE£107.15 Add to
008EC-V835-000000BOLT, TORX 5£2.66 Add to
010EC-V456-000460HOLDER , SPRING£3.00 Add to
011EC-V450-002410SPRING£6.64 Add to
012EC-V835-000000BOLT, TORX 5£2.66 Add to
014EC-P100-009382REAR HANDLE ASY£118.38 Add to
015EC-V470-001991PIPE£7.37 Add to
016EC-V471-005680PIPE£8.90 Add to
017EC-V186-000530JOINT , PIPE£2.52 Add to
018EC-A369-000460STRAINER , FUEL£9.69 Add to
019EC-V490-000500CLIP£1.47 Add to
020EC-V470-002410PIPE£6.02 Add to
021EC-V490-001230CLIP£1.82 Add to
022EC-131300-56431VENT ASSEMBLEY , FUEL£7.56 Add to
023EC-C450-001120CONTROL£7.37 Add to
024EC-900345-40025PIN , SPRING£1.60 Add to
025EC-V452-001970SPRING£3.35 Add to
026EC-C460-000660LOCKOUT£5.72 Add to
027EC-C411-000300LID , HANDLE£10.72 Add to
029EC-V804-000000BOLT TORX 4£2.16 Add to
031EC-V804-000000BOLT TORX 4£2.16 Add to
033EC-V804-000000BOLT TORX 4£2.16 Add to
034EC-V456-000450HOLDER£3.92 Add to
035EC-V835-000000BOLT, TORX 5£2.66 Add to
036EC-V450-002420SPRING£6.64 Add to
037EC-V835-000000BOLT, TORX 5£2.66 Add to
039EC-V456-000440HOLDER , SPRING£3.00 Add to
041EC-V450-002430SPRING , COMPRESSION£4.32 Add to
042EC-V404-000260CUSHION£11.52 Add to
044EC-P100-008550CAP ASY£12.44 Add to
