MAGNETO

Parts list

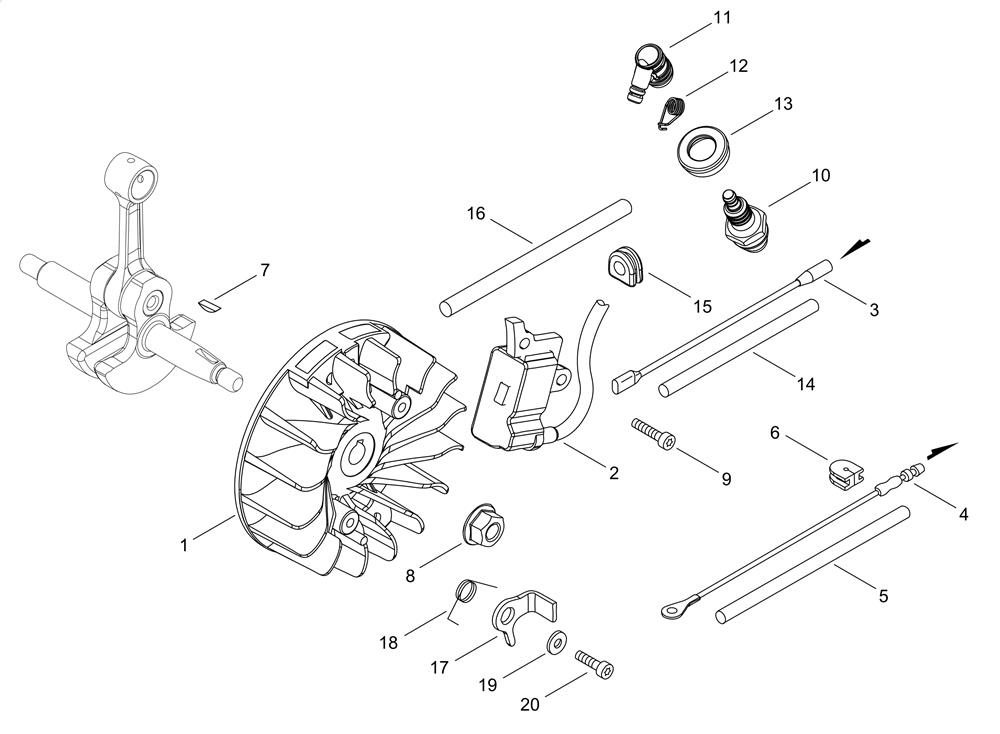

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001EC-P200-001380ROTOR , MAGNETO KIT£116.66 Add to
002EC-A411-001480COIL , IGNITION£93.85 Add to
007EC-100142-12330KEY, WOODRUFF£2.86 Add to
009EC-V805-000150BOLT, TORX 5£2.66 Add to
010OP-BPMR8YNGK PLUG ECHO£8.06 Add to
011EC-A427-000060CAP , SPARK PLUG£6.14 Add to
012EC-A426-000010TERMINAL, SPARK PLUG£2.86 Add to
013EC-A429-000090COVER , CAP£3.56 Add to
014EC-V475-007540TUBE£2.66 Add to
015EC-156110-04920BUSHING£2.66 Add to
017EC-A514-000280PAWL£3.89 Add to
018EC-V452-001471SPRING , TORSION£3.21 Add to
020EC-V805-000140BOLT , TORX 5£2.66 Add to
