MAGNETO

Parts list

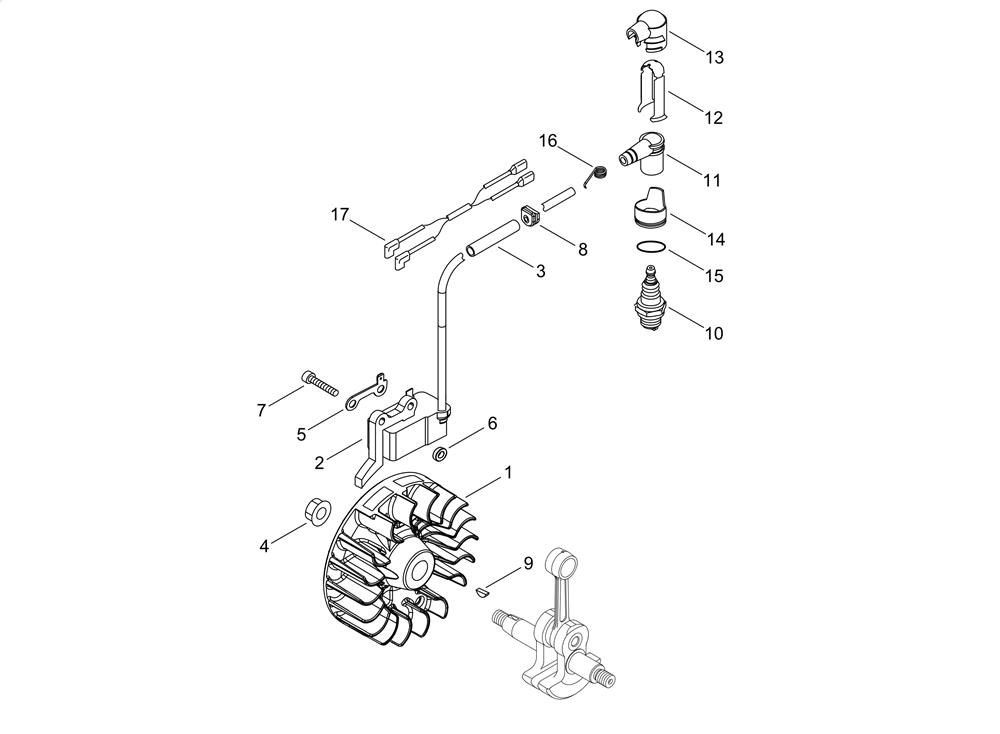

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001EC-A409-001320ROTOR , MAGNETO£89.23 Add to
002EC-A411-001791COIL , IGNITION£87.63 Add to
003EC-V475-007540TUBE£2.66 Add to
004EC-900515-00008NUT , FLANGE 8£2.86 Add to
005EC-C152-001030CONNECTOR£1.82 Add to
006EC-V323-000070WASHER , CIRCULAR 5£3.90 Add to
007EC-V805-000210BOLT, TORX 5£2.66 Add to
008EC-156110-04920BUSHING£2.66 Add to
009EC-100142-12330KEY, WOODRUFF£2.86 Add to
010OP-CMR7HSPARKPLUG£11.19 Add to
011EC-A427-000090PLUG CAP£6.14 Add to
012EC-V151-000170PLATE , CUP£5.53 Add to
013EC-A429-000110PLUG CAP COVER£2.66 Add to
014EC-J473-000120PIECE , COVER£3.35 Add to
016EC-159011-03432COIL, SPARK PLUG£2.86 Add to
017EC-V485-002880LEAD£4.92 Add to
