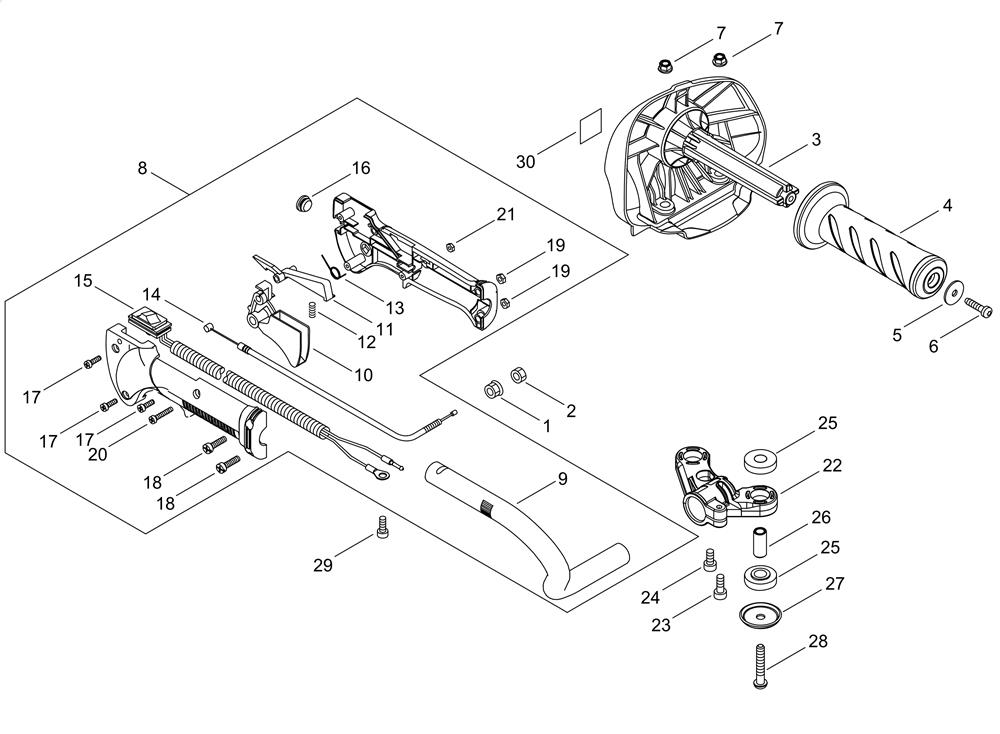

MAIN PIPE, HANDLE

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	EC-900502-00006	NUT 6 (3N)	£1.47	Add to
003	EC-C400-000851	HANDLE , FRONT	£42.50	Add to
006	EC-V805-000010	BOLT, TORX 5	£2.17	Add to
007	EC-V263-000250	NUT	£2.17	Add to
008	EC-C041-000800	HANDLE ASM , REAR	£126.86	Add to
009	EC-C410-001410	HANDLE , REAR	£40.36	Add to
010	EC-P022-037380	TRIGGER , THROTTLE	£11.23	Add to
014	EC-P022-051060	CABLE , BOWDEN	£34.13	Add to
015	EC-P022-051050	SWITCH , ON OFF	£24.17	Add to
020	EC-V252-000370	SCREW	£1.96	Add to
023	EC-V805-000160	BOLT, TORX 5	£2.66	Add to
024	EC-V805-000140	BOLT , TORX 5	£2.66	Add to
025	EC-V420-004390	CUSHION	£3.56	Add to
026	EC-V354-000310	COLLAR	£4.01	Add to
027	EC-V304-000230	WASHER , CIRCULAR	£4.61	Add to
028	EC-V806-000110	BOLT , TORX 6	£2.16	Add to
029	EC-V804-000040	BOLT, TORX 4	£2.17	Add to
030	EC-X505-002030	LABEL, CAUTION	£3.00	Add to
